Kyocera Ecosys FS-1320D Technical Reference Manual

Chapter 5 Barcodes
5-8

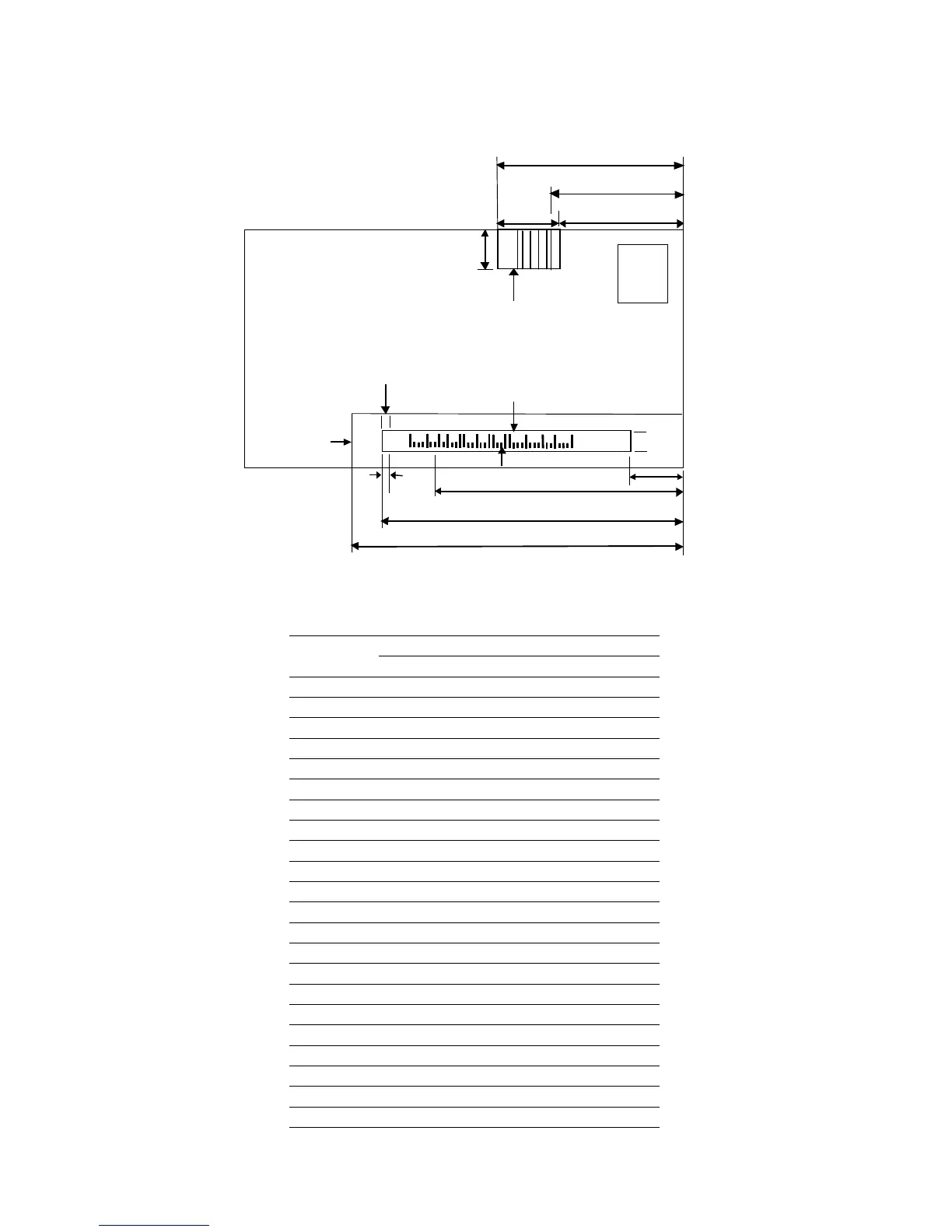

Table 5.3. Location of POSTNET and FIM
Table 5.4. Bar Height and Width Classes
Type Tall bars Width classes Default (dots)
12341234
0 Yes Yes Yes Yes Yes 6 12 18 24
1 Yes Yes Yes Yes Yes 6 12 18 24
2 Yes Yes Yes Yes Yes 6 12 18 24
3 Yes Yes Yes Yes Yes 6 12 18 24
4 Yes Yes Yes Yes Yes 6 12 18 24
5 Yes Yes Yes Yes Yes 6 12 18 24
6 Yes Yes Yes Yes Yes 6 12 18 24
7 Yes Yes Yes Yes Yes 6 12 18 24
8 Yes Yes Yes Yes Yes 6 12 18 24
9 Yes Yes Yes Yes Yes 6 12 18 24
10 Yes Yes Yes Yes Yes 6 12 18 24
11 Yes Yes Yes Yes Yes 6 12 18 24
12 Yes Yes Yes Yes Yes 6 12 18 24
13 — Yes Yes — — 6 12 (18) (24)
14 — Yes Yes — — 6 12 (18) (24)
15 — Yes Yes — — 6 12 (18) (24)
16 — Yes Yes — — 6 12 (18) (24)
17 — Yes Yes — — 6 12 (18) (24)
18 — Yes Yes — — 6 12 (18) (24)
19 — Yes Yes — — 6 12 (18) (24)
20 — Yes Yes — — 6 12 (18) (24)
21 — Yes Yes — — 6 12 (18) (24)
Stamp
FIM (BARC 40)
Clear Zone
Preferred location
for left-most bar
POSTNET
(BARC 39)
Clear Zone
(
5
/
8
” × 4-
1
/
2
”)
Barcode read area
Preferred base height
Not drawn to scale
4” max.
3-
1
/
4
” min.
7
/
16
”
3
/
16
”
5
/
8
”min.
2”±
1
/
8
”
1”-
3
/
4
”
1”-
1
/
4
”
5
/
8
”
1
/
8
”
4-
1
/
2
”
3”
1
/
4
”

Kyocera Ecosys FS-1320D Specifications

General

Ethernet LAN	No
Network ready	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Printing colors	Black
Maximum duty cycle	50000 pages per month
Number of print cartridges	1
Page description languages	IBM ProPrinter, PCL 5c, PCL 6, PostScript 3
Processor model	405F5
Processor family	PowerPC
Maximum internal memory	544 MB
Display	LED
Certification	TÜV/GS, CE, PTS, C-Tick
Total input capacity	250 sheets
Maximum input capacity	800 sheets
Maximum number of input trays	3
Multi-Purpose tray input capacity	50 sheets
Custom media width	70 - 215.9 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Duplex media weight	60 - 105 g/m²
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Standard interfaces	USB 2.0
Optional connectivity	Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	7.2 W
Power consumption (printing)	544 W
Power consumption (PowerSave)	4.3 W
Media thickness	0.11 mm
Compatible operating systems	Windows OS Linux OS Unix OS Mac OS X 10.2+

Weight and Dimensions

Dimensions (WxDxH)	375 x 393 x 250 mm
