Operation Panel
4-44
Binding Modes
Binding refers to the manner in which printed pages of paper are joined together (by gluing, stitching, etc.) in book form.
The two possible types of binding are: Bind Long Edge, in which pages are joined together along their long edge; and Bind
Short Edge, in which they are joined together along their short edge. In selecting a binding type, you must also consider the
orientation of the printed page. You can use Bind Long Edge or Bind Short Edge with either landscape or portrait printing.

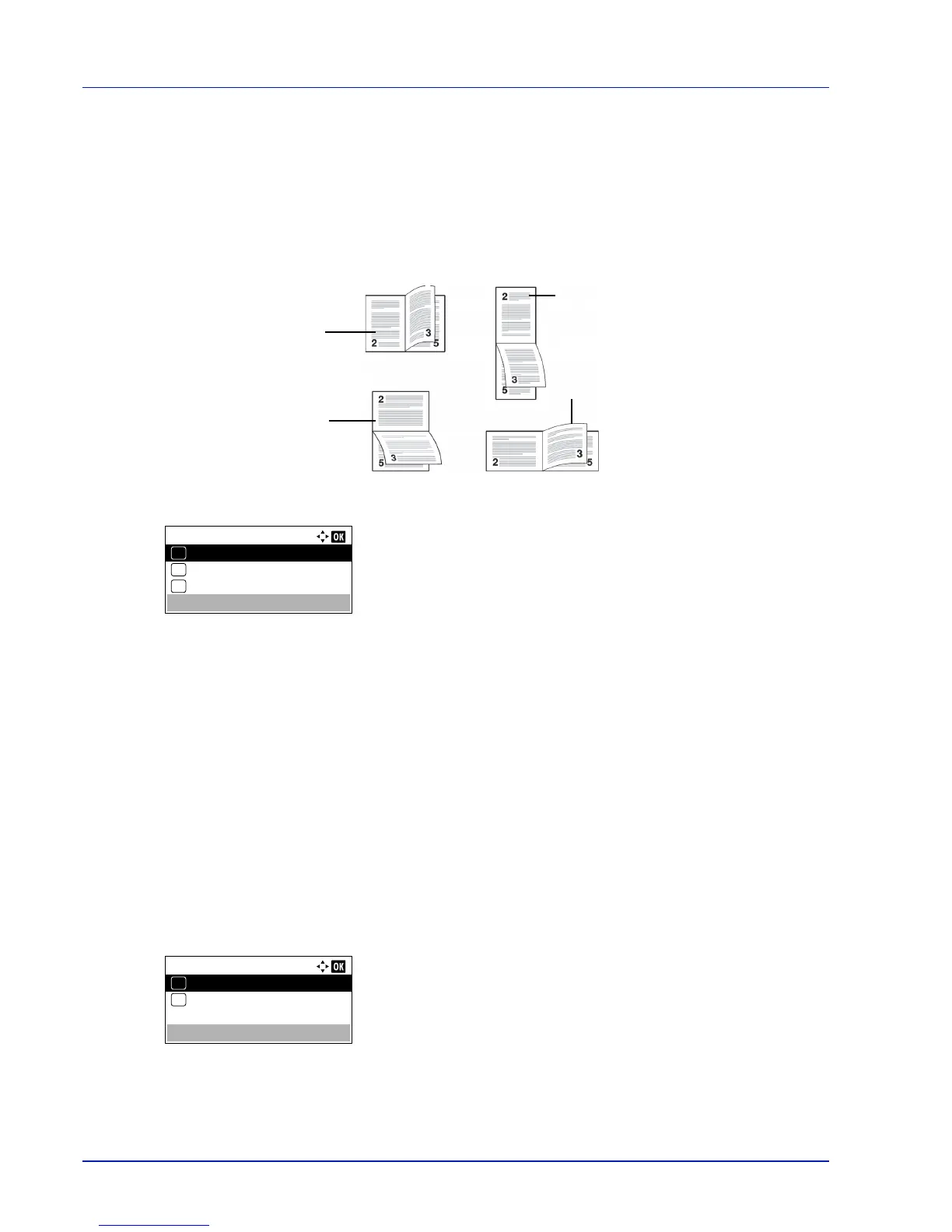

Depending on the binding type and print orientation, the duplexer provides four types of binding. These are: (1) portrait, Bind
Long Edge, (2) portrait, Bind Short Edge, (3) landscape, Bind Long Edge, and (4) landscape, Bind Short Edge. The figure
below shows these binding methods.
1
In the Print Settings menu, press or to select Duplex.
2
Press [OK]. The Duplex screen appears showing the list of available
duplex printing modes.
3
Press or to select the desired duplex printing mode.
The message display toggles through the following:
Off (default)
Bind Long Edge
Bind Short Edge
Selecting Off disables duplex printing.
4
Press [OK]. The duplex printing mode is set and the Print
Settings menu reappears.
Paper Output (Selecting the output stack)
The Paper Output menu on the operation panel allows you to select either the face-down tray or the faceup tray option for
the output stack.
1
In the Print Settings menu, press or to select Paper
Output.
2
Press [OK]. The Paper Output screen appears.
3
Press or to select output stack - TopTray FaceDown or Rear
Tray FaceUp.
4
Press [OK]. The output stack is set and the Print Settings menu
reappears.
