Kyocera ECOSYS M4132idn User Manual

3-3
Preparation before Use > Using the Operation Panel
Using the Operation Panel
ECOSYS M4132idn

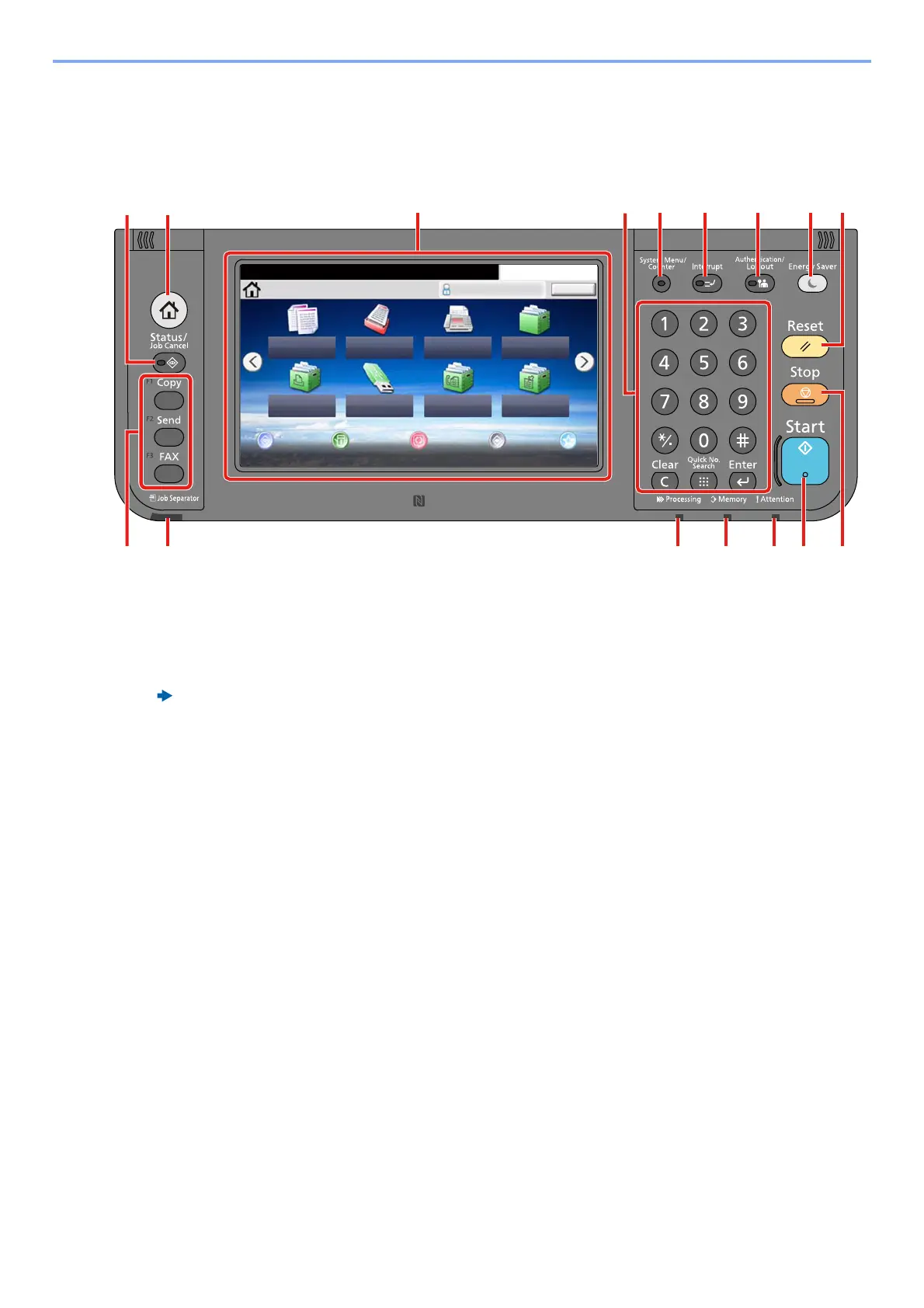

1 [Home] key: Displays the Home screen.
2 [Status / Job Cancel] key: Displays the Status/Job Cancel screen.
3 Function Key: These keys enable various functions and applications, including copy and scan, to be registered.
Assigning a Function to a Function Key
4 [Job Separator] indicator: Lights when there is paper in the job separator tray.
5 [Processing] indicator: Blinks while printing or sending/receiving.
6 [Memory] indicator: Blinks while the machine is accessing the hard disk, fax memory or USB memory (general
purpose item).
7 [Attention] indicator: Lights or blinks when an error occurs and a job is stopped.
8 [Start] key: Starts copying and scanning operations and processing for setting operations.
9 [Stop] key: Cancels or pauses the job in progress.
10 [Reset] key: Returns settings to their default states.
11 [Energy Saver] key: Puts the machine into Sleep Mode. Recovers from Sleep if in Sleep Mode.
12 [Authentication / Logout] key: Authenticates user switching, and exits the operation for the current user (i.e. log
out).
13 [Interrupt] key: Displays the Interrupt Copy screen.
14 [System Menu / Counter] key: Displays the System Menu screen.
15 [Numeric Keypad] key: Numeric keys. Enter numbers and symbols.
16 Touch Panel: Displays buttons for configuring machine settings.
㻿㼑㼘㼑㼏㼠㻌㼠㼔㼑㻌㼒㼡㼚㼏㼠㼕㼛㼚㻚
㻴㼛㼙㼑 㻭㼐㼙㼕㼚
㻯㼛㼜㼥
㻿㼠㼍㼠㼡㼟㻛
㻶㼛㼎㻌㻯㼍㼚㼏㼑㼘
㻝㻜㻦㻝㻜
㻸㼛㼓㼛㼡㼠
㻿㼑㼚㼐
㻯㼡㼟㼠㼛㼙
㻌㻌㻮㼛㼤
㻶㼛㼎㻌㻮㼛㼤
㻲㻭㼄
㻹㼑㼙㼛㼞㼥
㻾㼑㼙㼛㼢㼍㼎㼘㼑
㻌㻌㻹㼑㼙㼛㼞㼥
㻼㼛㼘㼘㼕㼚㼓㻌㻮㼛㼤
㻰㼑㼢㼕㼏㼑 㻸㼍㼚㼓㼡㼍㼓㼑 㻿㼥㼟㼠㼑㼙
㻹㼑㼚㼡
㻲㼍㼢㼛㼞㼕㼠㼑㼟
㻭㼐㼐㼞㼑㼟㼟
㻮㼛㼤
㻵㼚㼒㼛㼞㼙㼍㼠㼕㼛㼚
16
15
14 13 12 11 10
987654
3
2
1

Kyocera ECOSYS M4132idn Specifications

General

N-up printing	2, 4
Secure printing	Yes
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto/Manual
Time to first page (black, normal)	5.2 s
Print speed (black, normal quality, A3)	17 ppm
Print speed (black, normal quality, A4/US Letter)	32 ppm
Duplex print speed (black, normal quality, A4/US Letter)	29 ppm
Copier resize	25 - 400 %
Duplex copying mode	Auto
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Copy speed (black, normal quality, A3)	17 cpm
Copy speed (black, normal quality, A4)	32 cpm
Scan to	E-mail, FTP, SMB, TWAIN, USB, WIA
Scan drivers	TWAIN, WIA
Scanner type	Flatbed & ADF scanner
Grayscale levels	256
Maximum scan area	297 x 420 mm
Scan speed (color)	50 ppm
Image formats supported	JPG, MMR, TIF
Document formats supported	PDF, XPS
Faxing	No
Fax memory	700 pages
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, MH, MMR (Fax coding method), MR
Fax resolution (black)	400 x 400 DPI
Fax transmission speed	3 sec/page
Printing colors	Black
Duplex functions	Copy, Fax, Print, Scan
Stapling capacity	50 sheets
Maximum duty cycle	100000 pages per month
Recommended duty cycle	5000 - 10000 pages per month
Replacement cartridges	TK-6115 (15.000 pagina's)
Number of print cartridges	1
Page description languages	Microsoft XPS, OpenXPS, PCL 5e, PCL 6, PCL XL, PostScript 3
Processor cores	2
Processor family	ARM Cortex-A9
Card reader integrated	-
Compatible memory cards	SD
Maximum internal memory	3000 MB
Sound power level (standby)	34 dB
Sound pressure level (copying)	50 dB
Paper input type	Cassette, Paper tray
Total input capacity	500 sheets
Total output capacity	300 sheets
Maximum input capacity	1600 sheets
Maximum number of input trays	3
Multi-Purpose tray input capacity	100 sheets
Custom media width	98 - 297 mm
Maximum print size	297 x 432 mm
Custom media length	148 - 432 mm
Media thickness (min)	0.11 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 163 g/m²
Non-ISO print media sizes	Folio (media size), Ledger (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Multi-purpose tray media types	Legal, Letter, Plain paper
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	45 - 256 g/m²
Auto Document Feeder (ADF) media weight	45 - 160 g/m²
Display	TFT
Control type	Touch
Product color	Black, White
Display diagonal	7 \
Market positioning	Business
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Kyocera Mobile Print, Mopria Print Service
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Ethernet, Wireless LAN
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.1 W
Power consumption (ready)	70 W
Power consumption (sleep)	0.5 W
Power consumption (PowerSave)	45 W
Power consumption (average operating)	490 W
Energy Star Typical Electricity Consumption (TEC)	1.39 kWh/week
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Certification	TÜV/GS, CE
Cables included	AC
Included cartridge capacity (black)	3000 pages
Operating altitude	0 - 3500 m
Non-operating altitude	0.6 - 15000 m
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32.5 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	Blue Angel, REACH, RoHS, EPEAT Silver, ENERGY STAR
Package width	760 mm
Package height	911 mm
Package weight	74000 g
Harmonized System (HS) code	84433100

Weight and Dimensions

Width	590 mm
