Kyocera ECOSYS MA2100cfx User Manual

10-34
Troubleshooting > Adjustment/Maintenance

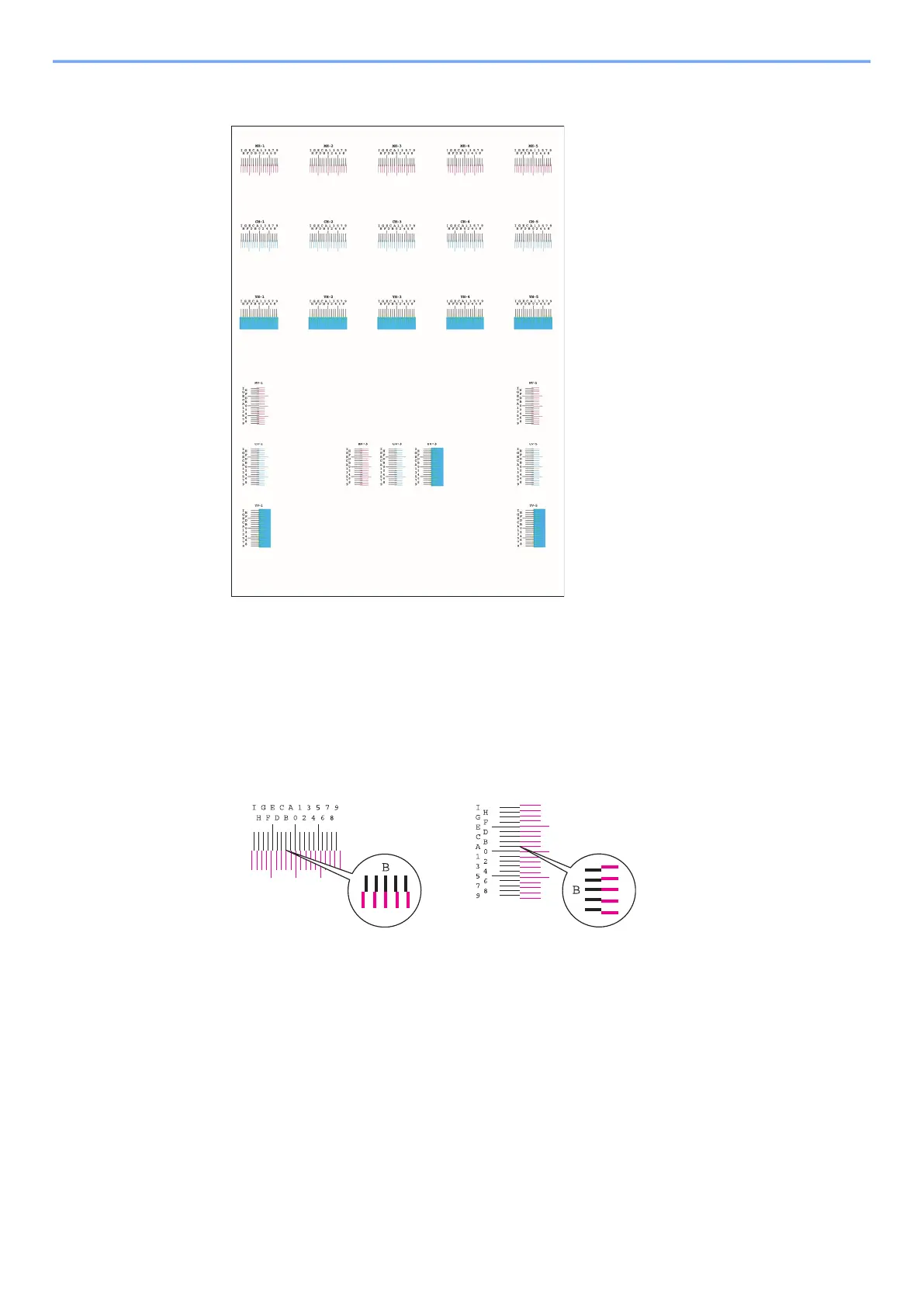

Chart Example
4
Display the correction menu.
[▲] [▼] key > [Adjust Magenta] > [OK] key
The magenta correction menu appears.
5
Enter the appropriate value.
1 Find the location on each chart where 2 lines most closely match. If this is the 0 position,
registration for that color is not required. For the illustration, B is the appropriate value.
From charts H-1 to H-5, read the values from H-1 to H-5.
From charts V-1 to V-5, read only the values from V-3 (center).
2 Select the [◄] or [►] key to change the H-1 to H-5 and V-3 items, select the [▲] or [▼] key
to enter the values read from the chart, and select the [OK] key.
Magenta correction is performed. After a brief interval, you will return to the advanced menu for color
printing position correction.
To increase the value from 0 up to a maximum of 9, select the [▲] key. To decrease the value, select
the [▼] key.
Select [▼] to change the value from 0 to an alphabetical letter. Continue selecting to change from A
through l. To move in the opposite direction, select [▲].
You cannot use the numeric keys to enter these values.
3 Perform cyan and yellow correction as explained in steps 4 and 5.

Kyocera ECOSYS MA2100cfx Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Automatic Document Feeder (ADF)	Yes (50 sheets)
Operating System Compatibility	Windows, Mac OS, Linux
Dimensions	417 x 429 x 495 mm
Duplex Printing	Automatic
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	Mopria
Functions	Print, Copy, Scan
Weight	26 kg
Print Speed (Black)	Up to 21 ppm (A4)
Print Speed (Color)	Up to 21 ppm (A4)
Copy Speed	Up to 21 cpm (A4 Black/Color)
