Kyocera ECOSYS MA2100cfx User Manual

3-15
Preparation before Use > Preparation for Sending a Document to a Shared Folder in a PC

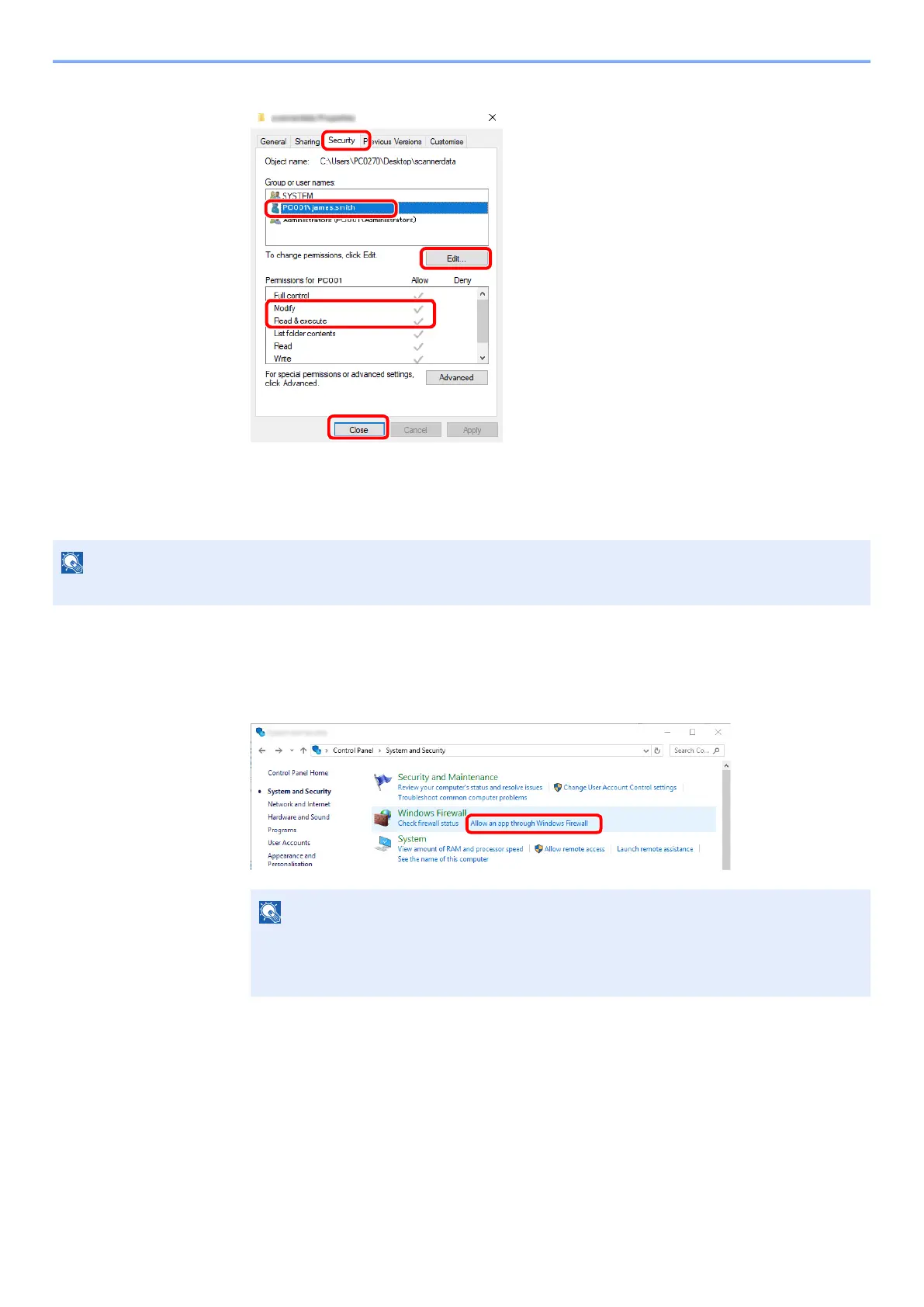

8 Check the details set in the [Security] tab.
Configuring Windows Firewall
Permit sharing of files and printers and set the port used for SMB transmission.
1
Check file and printer sharing.
1 Click [Start] button on the Windows and then select [Windows System], [Control Panel],
[System and Security], and [Allow an app through Windows Firewall].
NOTE
Log on to Windows with administrator privileges.
NOTE
• In Windows 8.1, in charms on Desktop, click [Settings], [Control Panel], [System and
Security], and then [Windows Firewall].
• If the User Account Control dialog box appears, click the [Continue] button.
1 Select the [Security] tab.
2 Select the user you entered.
If the user does not appear on "Group or
user names", click [Edit] button to add user
in a similar way of "configuration of
permission settings".
3 Make sure that checkmarks appear on
[Allow] checkbox for the "Modify" and
"Read & execute" permissions.
4 Click the [Close] button.
2
3
4
1

Kyocera ECOSYS MA2100cfx Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Automatic Document Feeder (ADF)	Yes (50 sheets)
Operating System Compatibility	Windows, Mac OS, Linux
Dimensions	417 x 429 x 495 mm
Duplex Printing	Automatic
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	Mopria
Functions	Print, Copy, Scan
Weight	26 kg
Print Speed (Black)	Up to 21 ppm (A4)
Print Speed (Color)	Up to 21 ppm (A4)
Copy Speed	Up to 21 cpm (A4 Black/Color)
