Kyocera FS-9500DN Service Manual

FS-9120DN/9520DN
1-6-10
• Right registration cleaner
1. Remove the developing unit and drum unit
(see pages 1-6-14 and 16).
2. Remove the right registration cleaner.
3. Replace the right registration cleaner and refit
all the removed parts.
*To install the right registration cleaner, install
it holding the frame of the registration guide
between the cleaner.

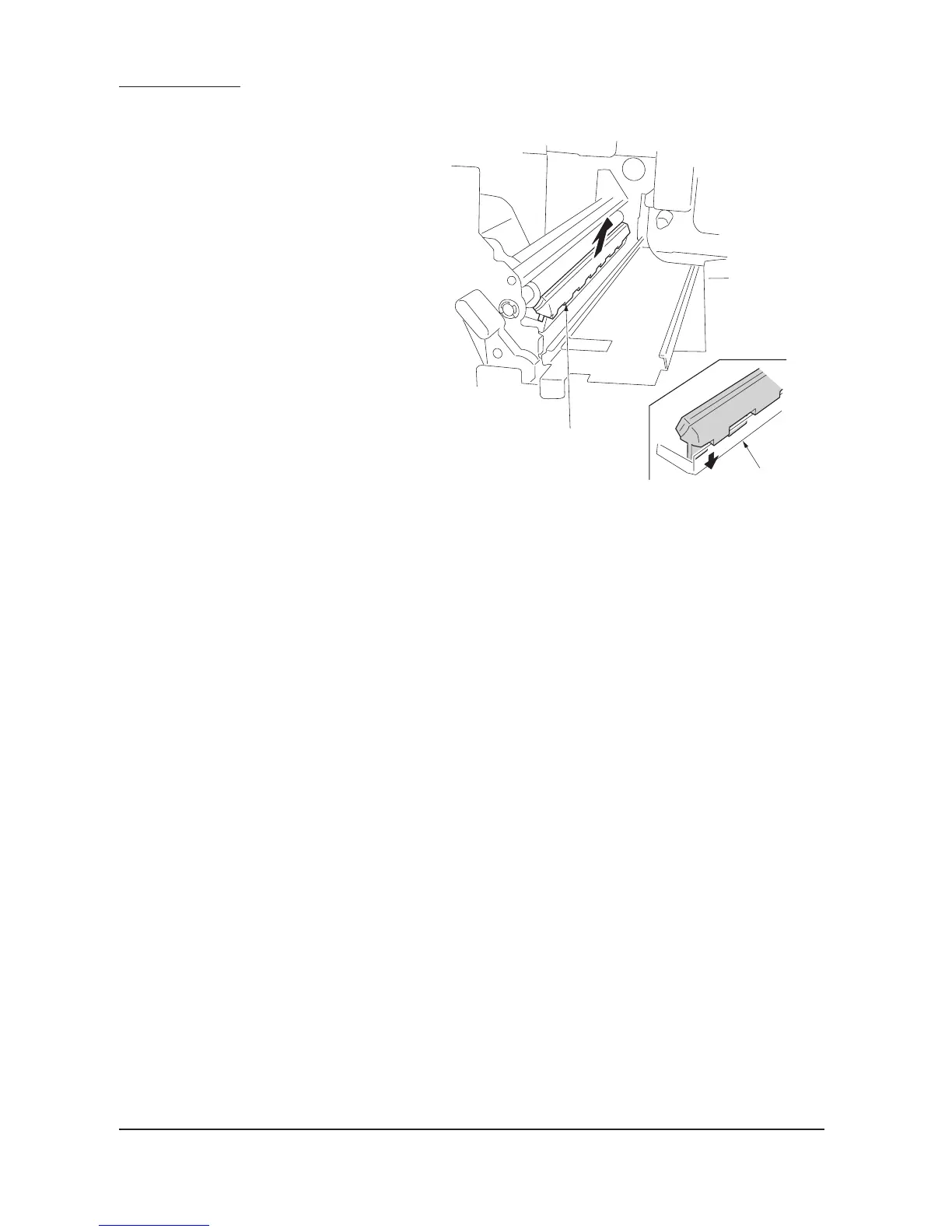

Figure 1-6-23
Right registration cleaner
Registration
guide
