FS-9120DN/9520DN
1-1-3

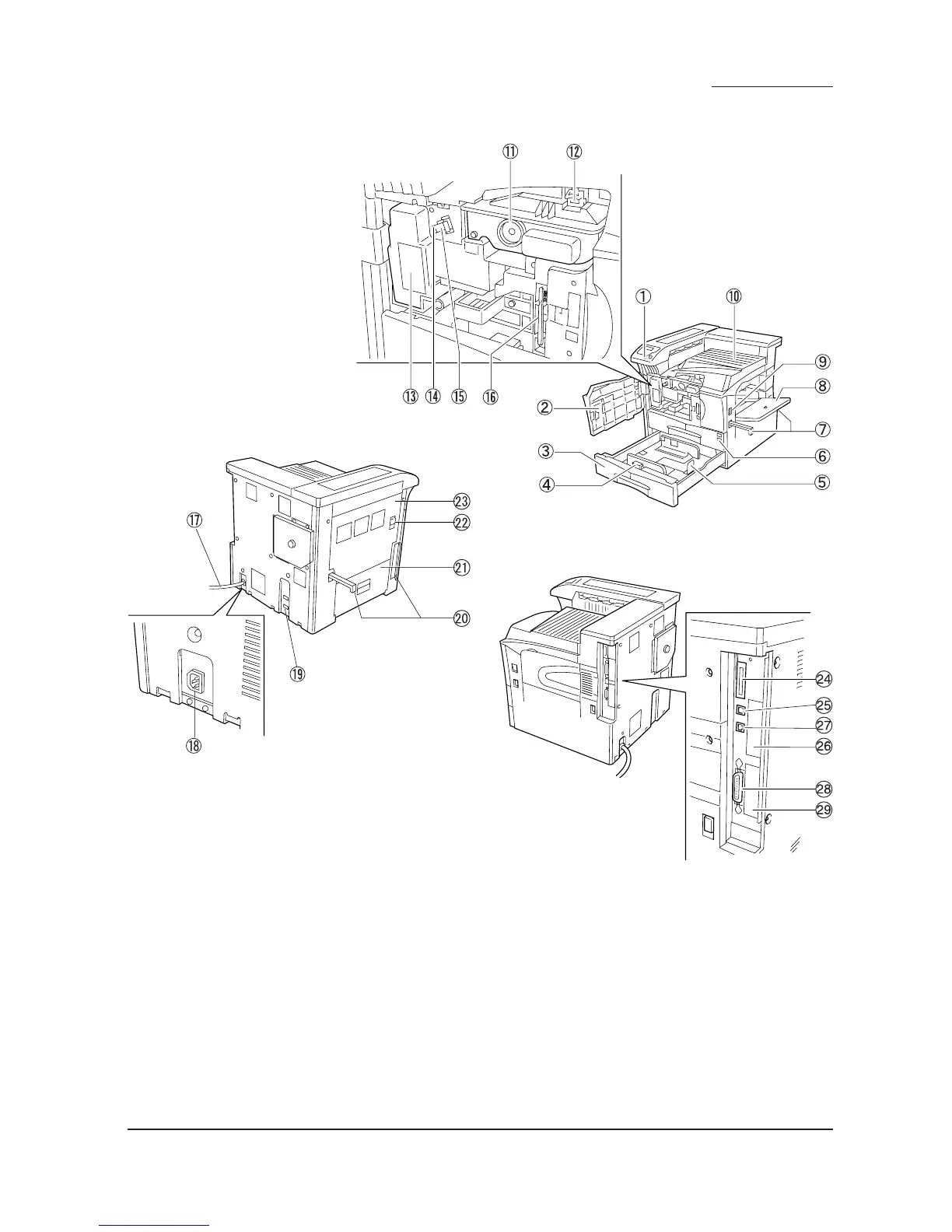

1-1-2 Parts names
(1) Printer
1 Operator panel
2 Front cover
3 Lower paper cassette
4 Paper guide
5 Paper stopper
6 Upper paper cassette
7 Handles for transport
8 MP (Multi-Purpose) tray
9 Power switch
0 Face-down tray
! Toner container
@ Toner container release lever
# Waste toner box
$ Cleaning knob
% Main charger unit
Figure 1-1-1
^ Cleaning brush
& Power cord
* Power cord connector
( Option unit connector
) Handles for transport
⁄ Side cover
¤ Conveying cover lock lever
‹ Conveying cover
› Memory card slot
fi USB cable connector
fl Optional network interface card slot (OPT)
‡ Network cable connector
— Parallel cable connector
· Optional hard disk unit slot (HDD)
To Next Page
