1-3-9
FS-9120DN/9520DN
1-3-2 Installing the cassette heater (option)
Cassette heater installation requires the following parts:
• Cassette heater (P/N 34860030): for 120 V specifications
• Cassette heater (P/N 33960020): for 220 - 240 V specifications
•Binding band (P/N M2107120)
•Two binding screws BVM4 x 6 (P/N B1304060)
•Caution label (P/N 20305130)
• Fax kit label (P/N 3CM05010)
Procedure
1. Pull the upper and lower cassettes out.
2. Install the cassette heater to the bottom of the
machine with two screws (M4 x 06), and bind
the wire of the cassette heater with the band.
3. Put the wire of the cassette heater out of the
machine through the aperture of the rear
frame.
4. Stick the caution label in front of the cassette
heater.
5. Remove the five screws and the two
connectors and then remove the power
supply mount from the rear side of the
machine.
Pay attention not to reverse the black wire
and white wire when refitting the connector.
6. Remove the two screws and pull out the wire
of the cassette heater that has been put out
of the rear frame while raising the power
supply unit.
7. Insert the connector of the cassette heater
into the connector of the machine.
8. Fold the wire of the cassette heater and insert
it into the clamp of the power supply mount.

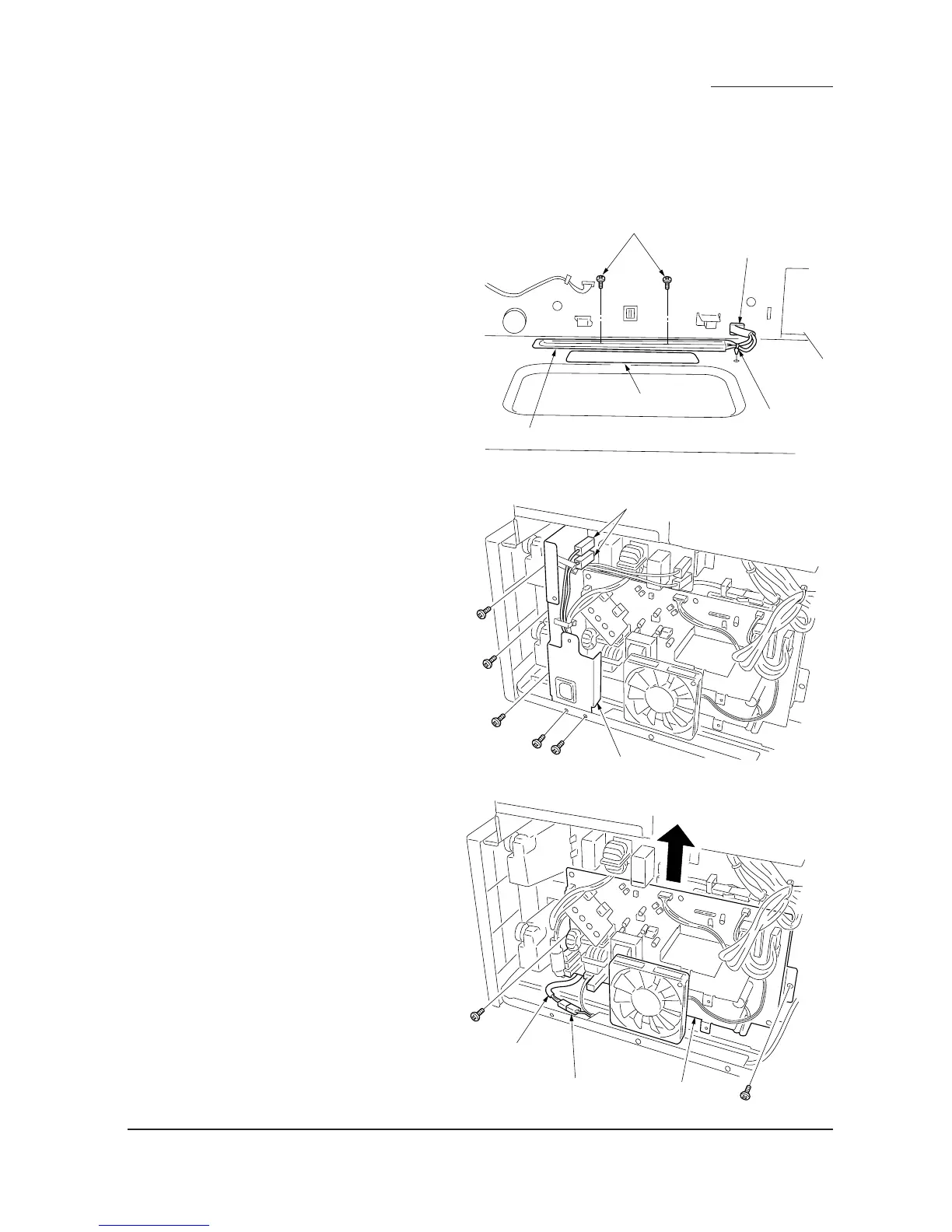

Figure 1-3-18
Figure 1-3-19
Figure 1-3-20
Aperture
Screws
Band
Caution label
Cassette heater
Connector
Power supply mount
Connector
Power supply unit
Wire of the
cassette heater
To Next Page
