1-2-1 Drum
Note the following when handling or storing the drum.
• When removing the image formation unit, never expose the drum surface to strong direct light.
• Keep the drum at an ambient temperature between –20 °C/–4 °F and 40 °C/104 °F and at a relative humidity not higher
than 85% RH. Avoid abrupt changes in temperature and humidity.
• Avoid exposure to any substance which is harmful to or may affect the quality of the drum.
• Do not touch the drum surface with any object. Should it be touched by hands or stained with oil, clean it.
1-2-2 Toner
Store the toner in a cool, dark place. Avoid direct light and high humidity.
1-2-3 Installation environment
1. Temperature: 10 - 32.5 °C/50 - 90.5 °F
2. Humidity: 20 - 80 % RH
3. Power supply: 120 V AC ±10 %, 11.3 A/11.4 A (FS-9120DN/9520DN)
220 - 240 V AC 10 %, 6.0 A/6.1 A (FS-9120DN/9520DN)
4. Power source frequency: 50 Hz ±0.2 %/60 Hz ±0.2 %
5. Installation location
• Avoid direct sunlight or bright lighting. Ensure that the photoconductor will not be exposed to direct sunlight or other
strong light when removing paper jams.
• Avoid extremes of temperature and humidity, abrupt ambient temperature changes, and hot or cold air directed onto
the machine.
• Avoid dust and vibration.
• Choose a surface capable of supporting the weight of the machine.
• Place the machine on a level surface (maximum allowance inclination: 1 ° ).
• Avoid air-borne substances that may adversely affect the machine or degrade the photoconductor, such as
mercury, acidic of alkaline vapors, inorganic gasses, NOx, SOx gases and chlorine-based organic solvents.
•Select a room with good ventilation.
6. Allow sufficient access for proper operation and maintenance of the machine.
Machine front: 100 cm/39
3
/
8
"Machine rear: 10 cm/3
15
/
16
"
Machine right: 70 cm/27
9
/
16
" Machine left: 60 cm/23
5
/
8
"

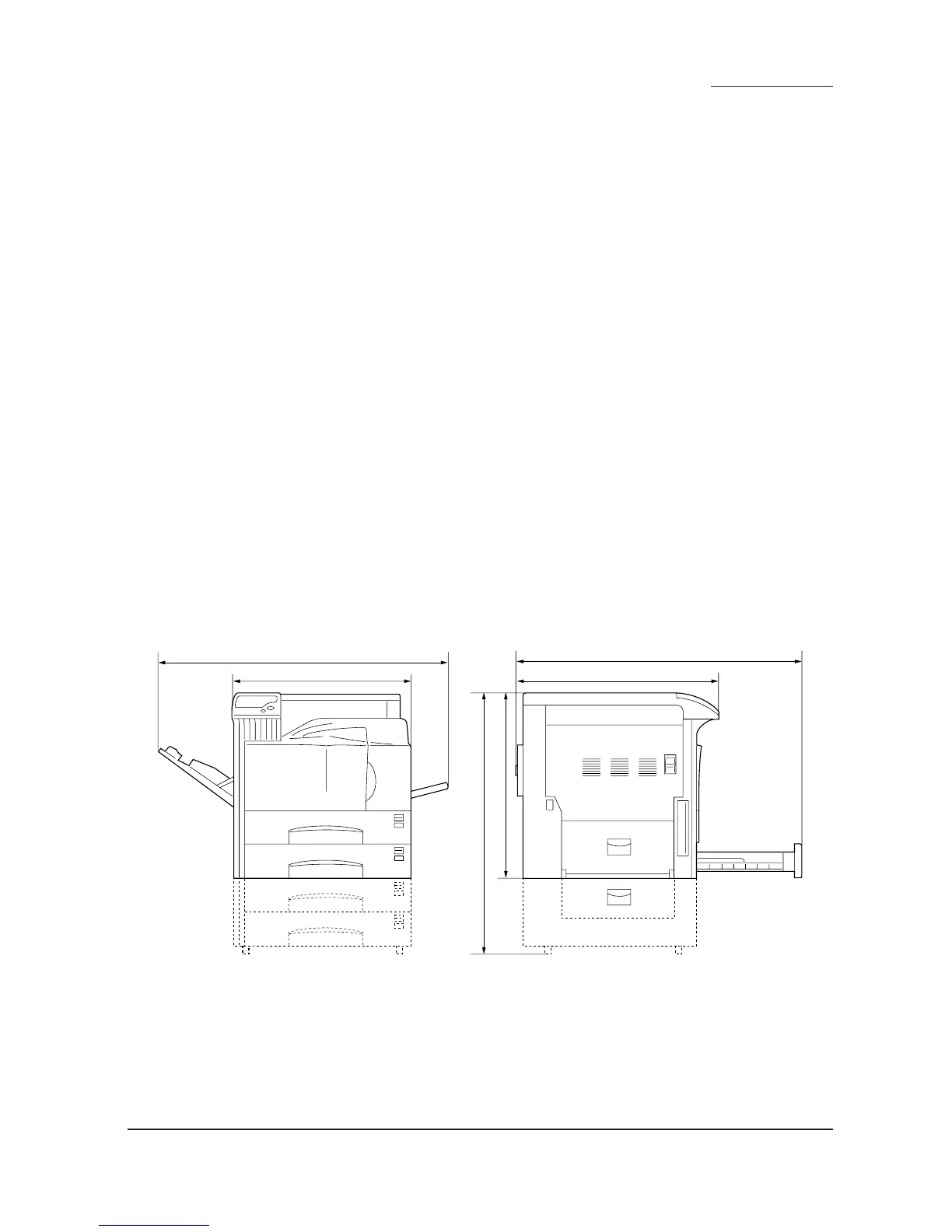

Figure 1-2-1 Installation dimensions
a: 585 mm/23
1
/
16
"
b: 615 mm/24
3
/
16
"
c: 665 mm/26
3
/
16
"
d: 1032 mm/40
5
/
8
"
e: 920 mm/36
1
/
4
"
f: 1055 mm/41
9
/
16
"
df
c
b
e
a
