FS-9120DN/9520DN
2-1-18
2-1-8 Eject and switchback sections
The eject and switchback sections eject paper on which fuser has ended with the eject roller that is rotated by forward
rotation of the eject motor.
In duplex printing, paper is turned over by reverse rotation of the eject motor.
The paper full sensor (PFS) detects the full conditions of paper ejected onto the face-down tray.

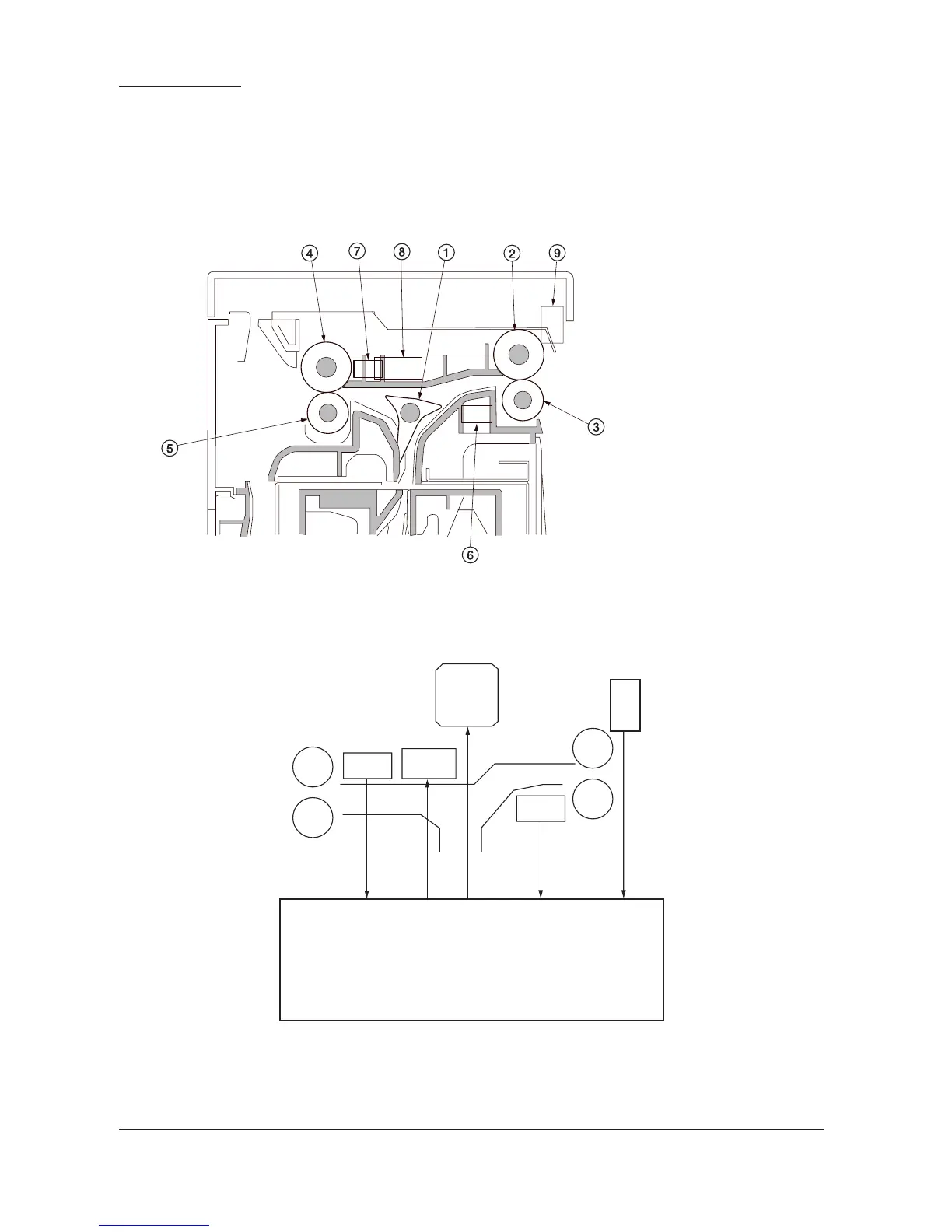

Figure 2-1-22 Eject and switchback sections
YC16-A5
YC16-A8
YC16-B11-
YC16-B14
YC16-A1-
YC16-A2
YC16-A11
EPWB
ESW
ESW
EM
EM
PFS
PFS
FSSW
FSSW
FSSOL
FSSOL
Figure 2-1-23 Eject and switchback sections block diagram
1 Feedshift guide
2 Eject roller
3 Eject pulley
4 Switchback roller
5 Switchback pulley
6 Eject switch (ESW)
7 Feedshift switch (FSSW)
8 Feedshift solenoid (FSSOL)
9 Paper full sensor (PFS)
