FS-9120DN/9520DN
2-1-19
FSSW
ESW
RSW
EM
RCL
31 ms
309/239 ms
50 ms
50 ms
Secondary paper feed end
Fwd. rotation
Fwd. rotation
Rev. rotation

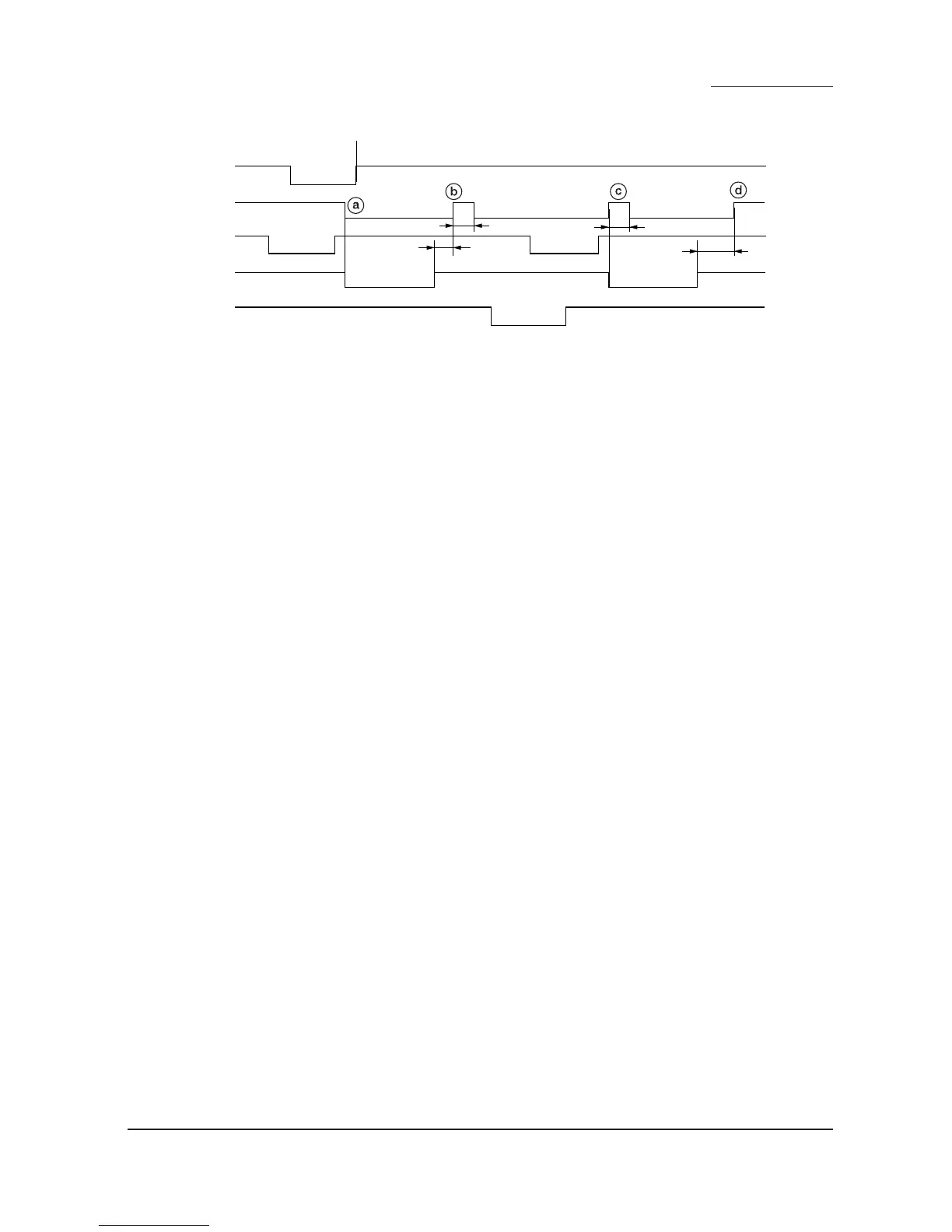

Timing chart 2-1-7 Eject and switchback sections operation
a: The leading edge of paper (front face) turns on the eject switch (ESW), and at the same time the eject motor (EM)
starts forward rotation.
b: 31 ms after passing of the trailing edge of paper turns off the eject switch (ESW), the eject motor (EM) turns off for 50
ms and then starts reverse rotation.
c: The leading edge of paper (reverse face) turns on the eject switch (ESW), and at the same time the eject motor (EM)
turns off for 50 ms and then starts forward rotation.
d: 309/239 ms (FS-9120DN/9520DN) after passing of the trailing edge of the paper turns off the eject switch (ESW), the
eject motor (EM) turns off.
