2-1-9 Duplex unit
The duplex unit consists of the components shown in Figure 2-1-24. In duplex mode, after printing on to the reverse face of
the paper, the paper is reversed in the switchback section and conveyed to the duplex unit. The paper is then conveyed to
the printer paper feed section by the upper and lower duplex feed rollers.
YC10-B4
YC10-B2
EPWB
DUPPCSW
DUPFCL

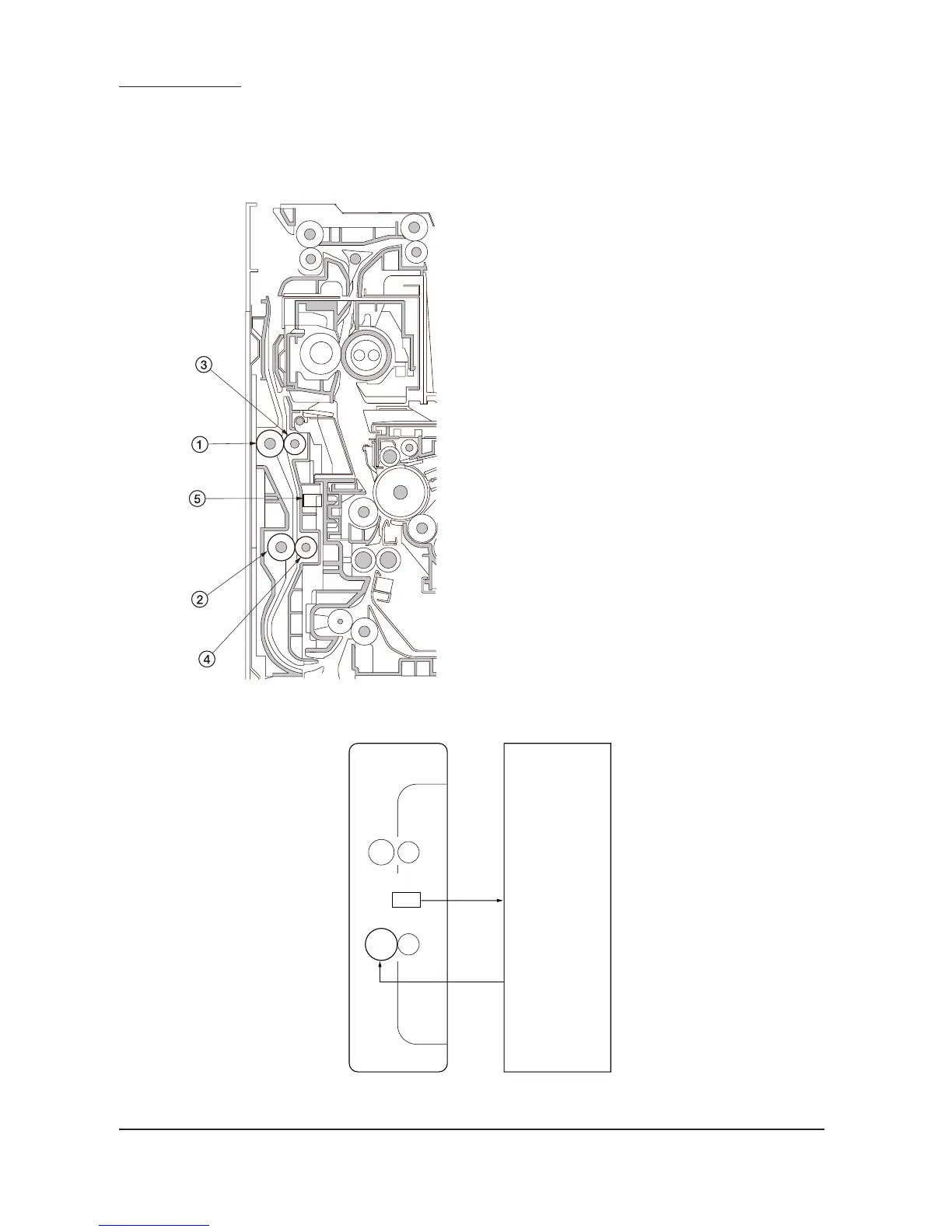

Figure 2-1-24 Duplex unit
1 Upper duplex feed roller
2 Lower duplex feed roller
3 Duplex feed pulley
4 Duplex feed pulley
5 Duplex paper conveying switch (DUPPCSW)
Figure 2-1-25 Duplex unit block diagram
