FS-9120DN/9520DN

1-1-7

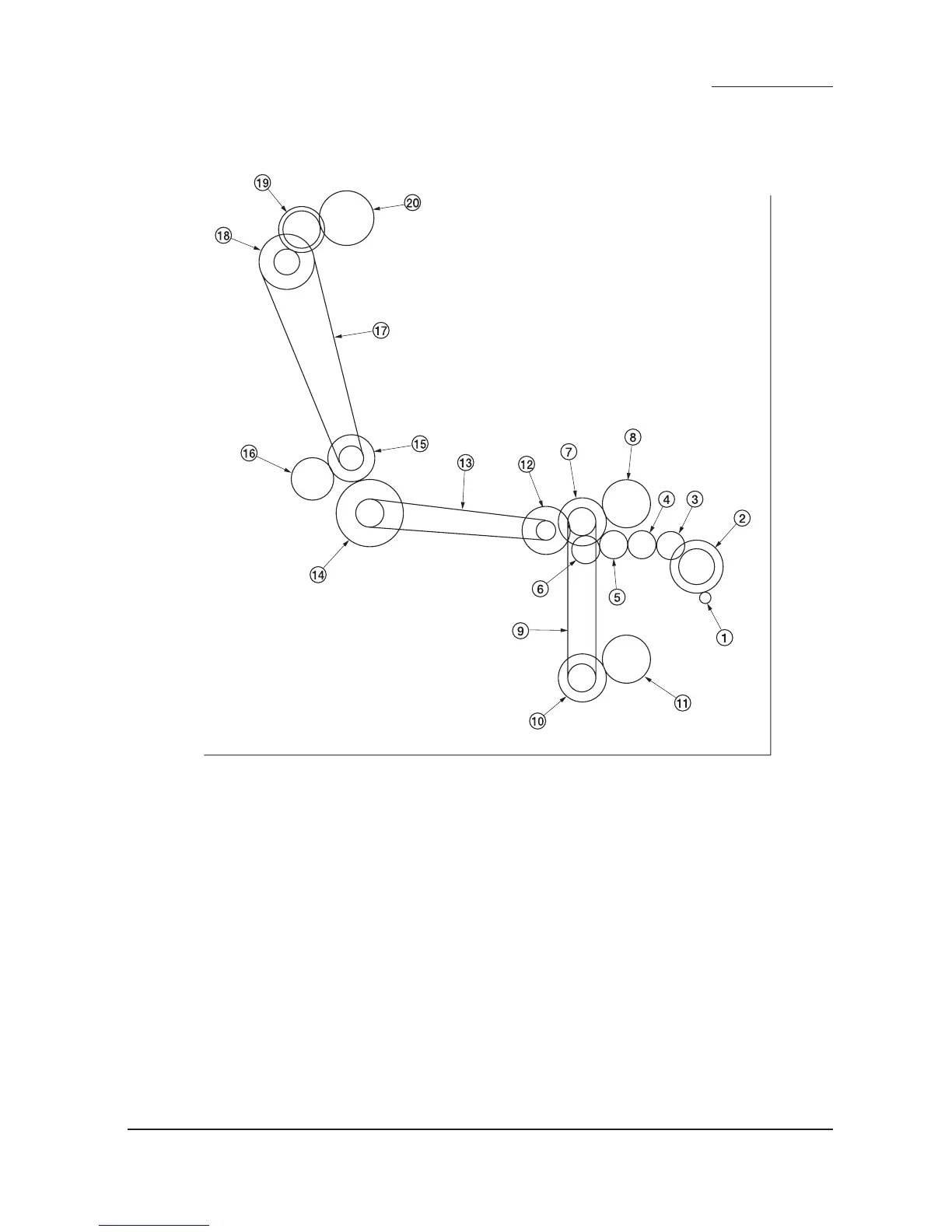

(2) Drive system 2 (paper feed motor drive train)

1 Paper feed motor gear

2 Gear Z76H/Z35S

3 Feed gear Z25

4 Feed gear Z25

5 Feed gear Z25

6 Feed gear Z25

7 Gear Z41S/Z24S/P30

8 Upper paper feed clutch gear

9 Paper feed drive belt

0 Gear Z41S/Z24S/P30

! Lower paper feed clutch gear

@ Gear Z41S/P15

# Bypass drive belt

$ Gear Z60S/P20

% Gear Z41S/P18

^ Gear Z40S/Z32S

& Container drive belt

* Gear Z24S/P40

( Gear Z40S/Z25S

) Container gear

Figure 1-1-5

As viewed from machine rear
