FS-9120DN/9520DN
2-1-6
ESW
EM
MC REM
DM
Print start
signal
100 ms
100 ms
5 s
309/239 ms

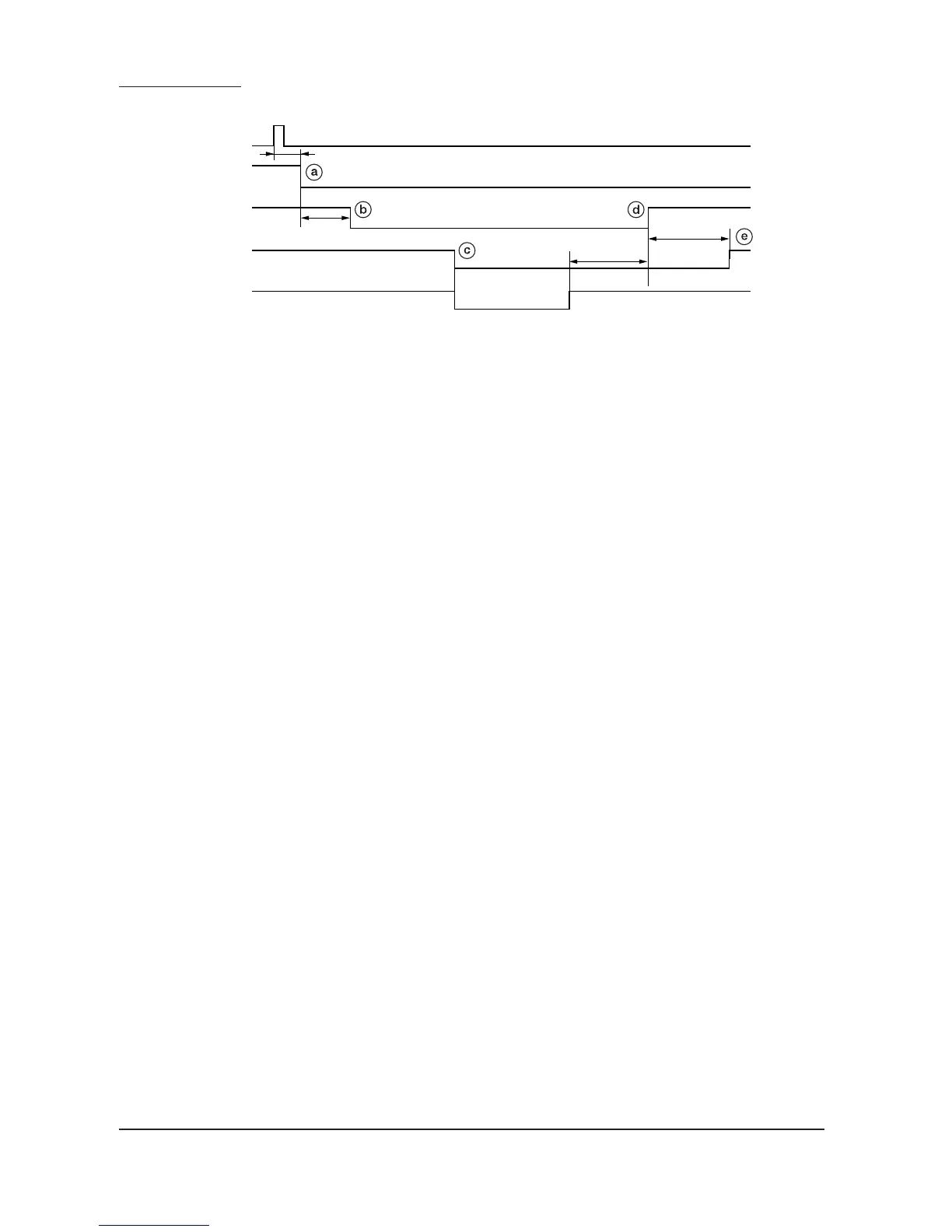

Timing chart 2-1-3 Main charging section operation
a: 100 ms after the start key is pressed, the drive motor (DM) turns on.
b: 100 ms after the drive motor (DM) turns on, main charging (MC REM) starts.
c: The leading edge of the paper turns on the eject switch (ESW), and at the same time the eject motor (EM) turns on.
d: 309/239 ms (FS-9120DN/9520DN) after the paper is ejected and the eject switch (ESW) turns off, main charging (MC
REM) ends.
e: 5 s after the end of main charging (MC REM), the eject motor (EM) turns off.
