FS-9120DN/9520DN
2-1-14
84 ms
TC REM
ESW
RSW
EM
RCL
154-255 ms
325/260 ms
124/96 ms
375/300 ms
Image ready
Secondary paper
feed start
Secondary paper feed end
SC REM

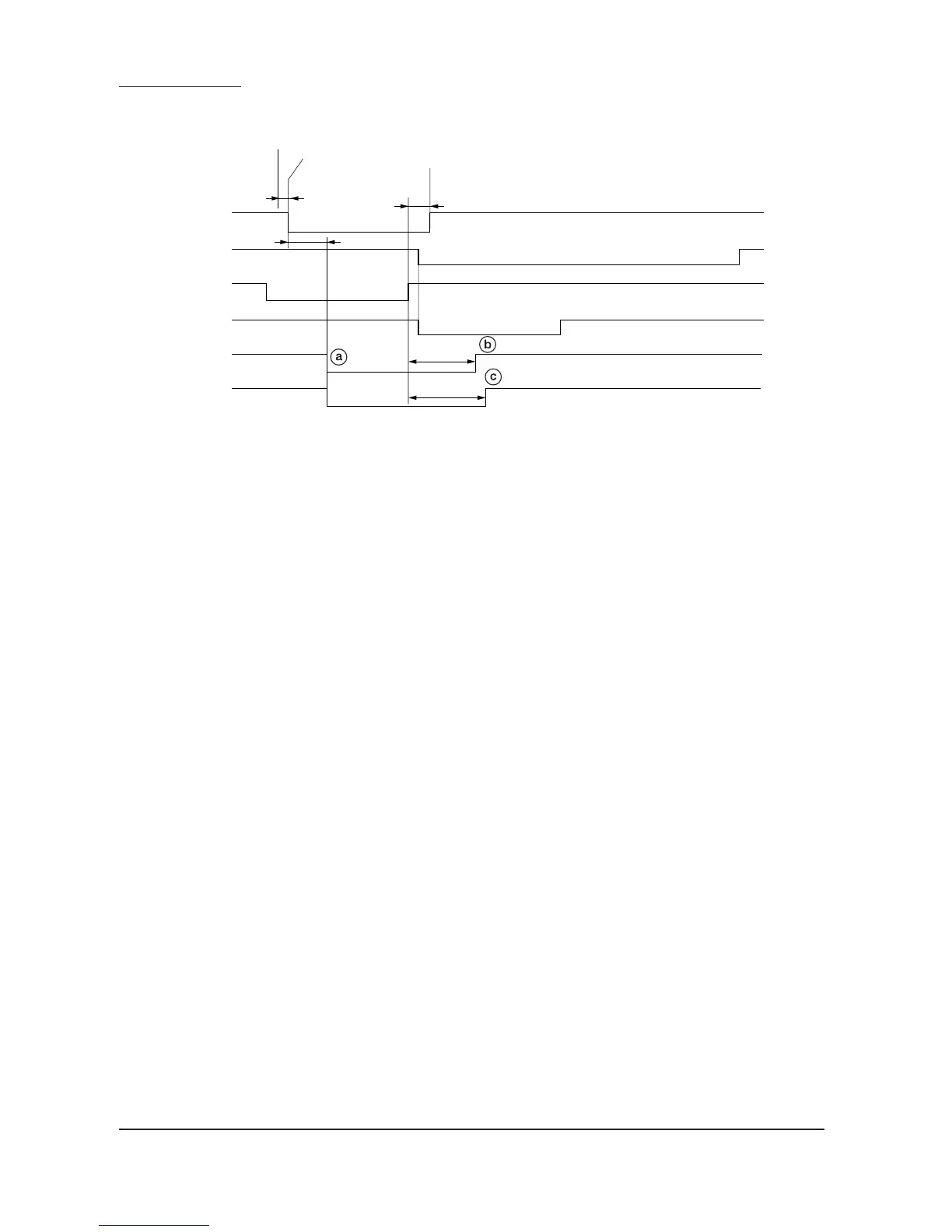

Timing chart 2-1-4 Transfer and separation sections operation
a: 154 to 255 ms after the registration clutch (RCL) turns on to start secondary paper feed, transfer charging (TC REM)
and separation bias (SC REM) starts.
b: 325/260 ms (FS-9120DN/9520DN) after the trailing edge of the paper turns the registration switch (RSW) off, transfer
charging (TC REM) ends.
c: 375/300 ms (FS-9120DN/9520DN) after the trailing edge of the paper turns the registration switch (RSW) off,
separation bias (SC REM) ends.
