Machine front
Machine inside
Machine rear
(4) Other electrical components

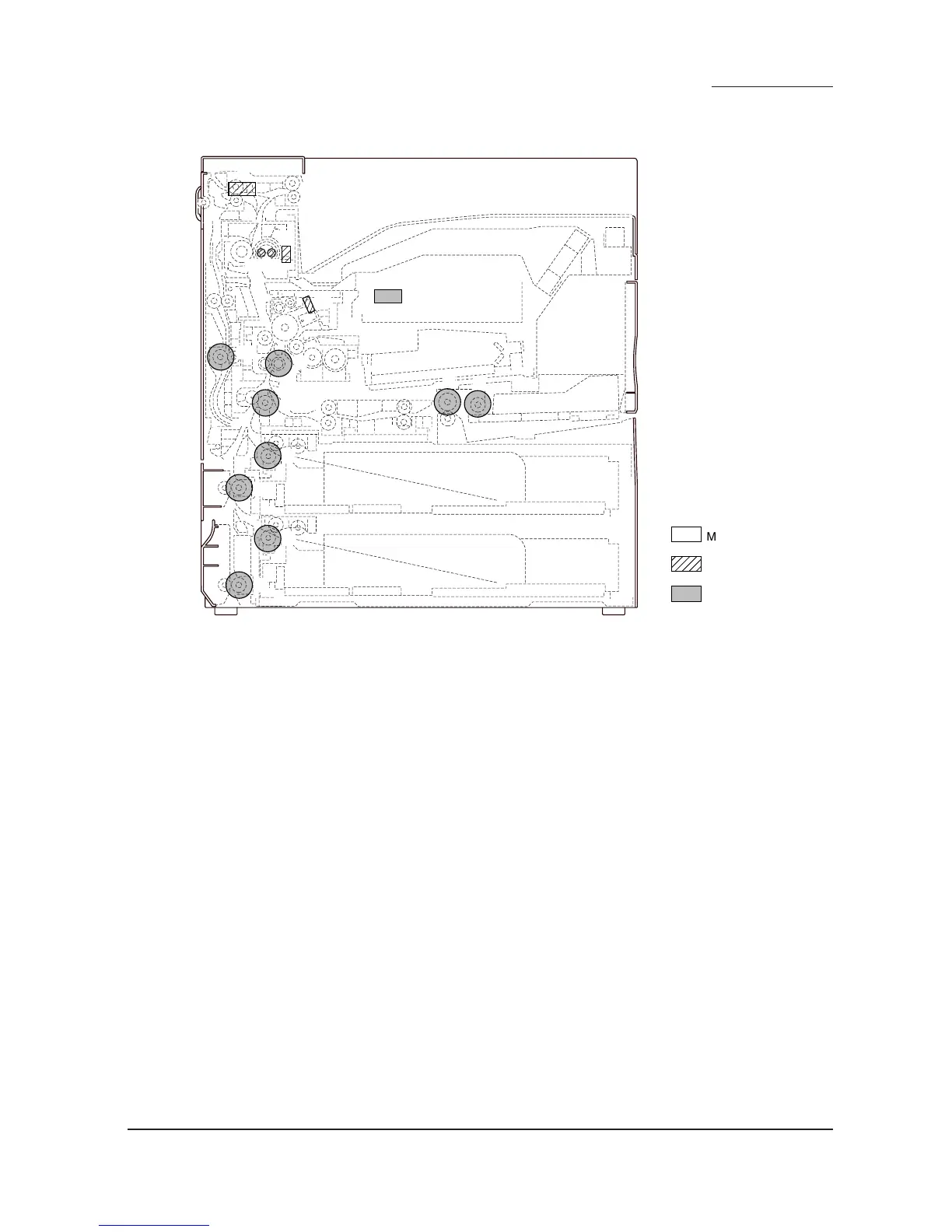

Figure 2-2-4 Other electrical components
1. Upper paper feed clutch (PFCL-U) .............. Primary paper feed from the upper cassette.
2. Lower paper feed clutch (PFCL-L) ............... Primary paper feed from the lower cassette.
3. Feed clutch 1 (FCL1) ................................... Controls the drive of feed roller.
4. Feed clutch 2 (FCL2) ................................... Controls the drive of feed roller.
5. Feed clutch 3 (FCL3) ................................... Controls the drive of feed roller.
6. MP paper feed clutch (MPPFCL) ................. Primary paper feed from the MP tray.
7. MP feed clutch (MPFCL) .............................. Controls the drive of MP feed roller.
8. Registration clutch (RCL) ............................. Secondary paper feed.
9. Feedshift solenoid (FSSOL) ........................ Operates the feedshift guide.
10. Toner feed solenoid (TNFSOL) .................... Replenishes toner.
11.Cleaning lamp (CL) ...................................... Removes residual charge from the drum surface.
12. Fuser heater M (FH-M) ................................ Heats the heat roller.
13. Fuser heater S (FH-S) ................................. Heats the heat roller.
14. Fuser unit thermostat (FTS) ......................... Prevents overheating in the fuser section.
15. Duplex paper feed clutch (DUPFCL) ........... Controls the drive of the duplex feed roller.
