11. Remove two screws.
12. Release three hooks and then remove
the wire holder.

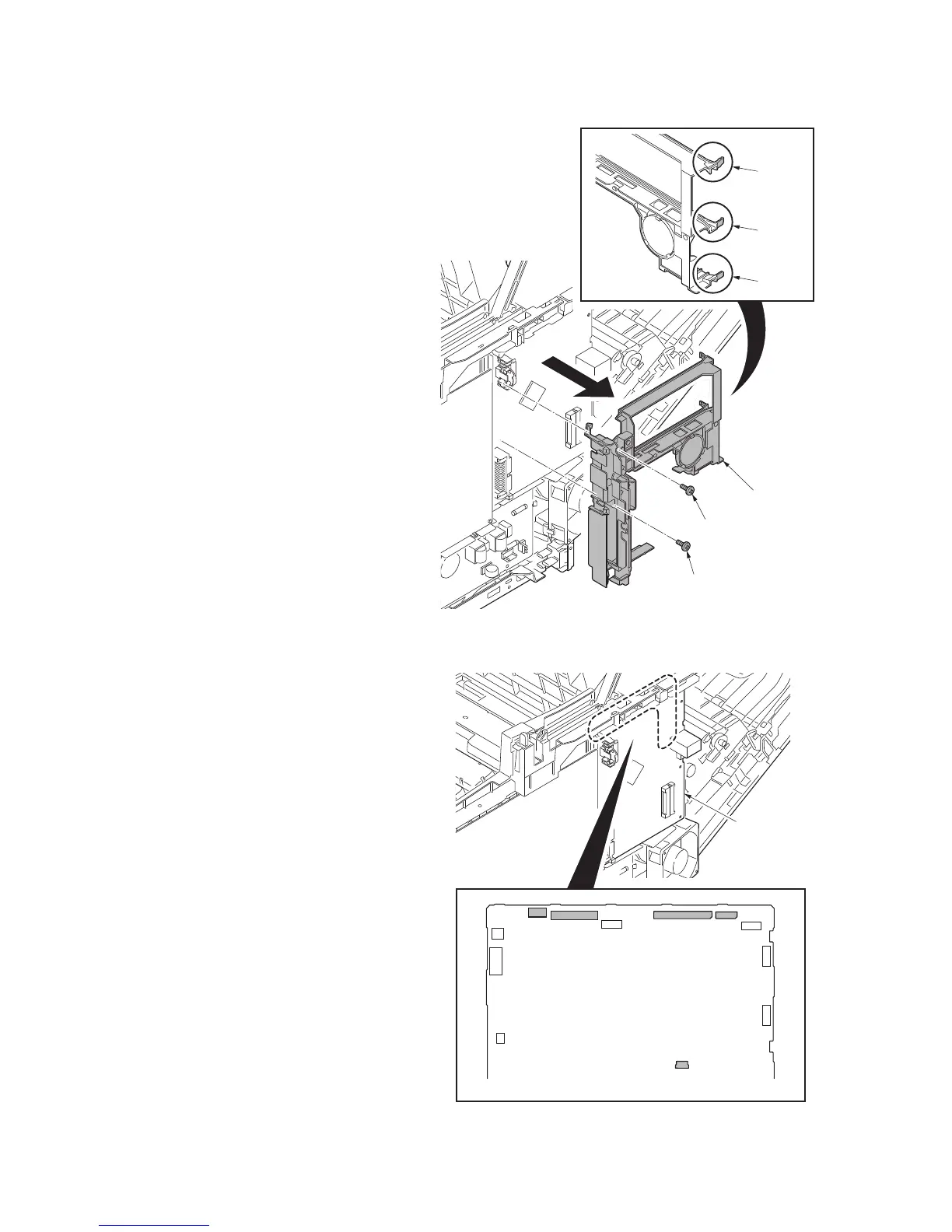

Figure 1-5-49
13. Remove three connectors (YC36,
YC32, YC12) and two FFCs (YC8,
YC43) from the main PWB.
Figure 1-5-50
Wire holder
Hook
Hook
Hook
Screw
Screw
YC36 YC32 YC8 YC43
YC12
Main PWB
Main PWB
