2MA/2MB
1-5-34
14. Remove five screws and then remove
the main PWB.
15. Check or replace the main PWB and
refit all the removed parts.

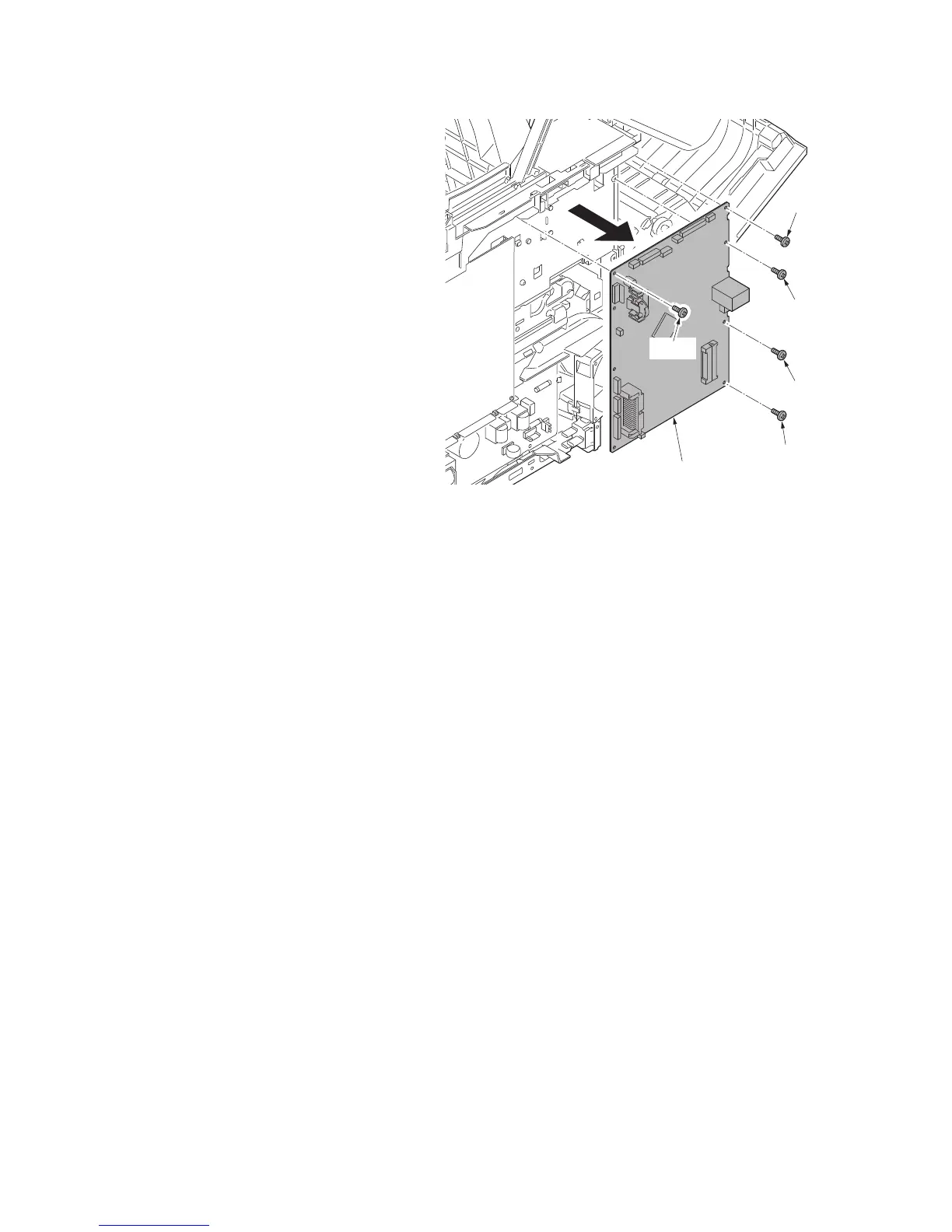

Figure 1-5-51
Main PWB
Screw
Screw
Screw
Screw
Screw
