KYOWA WGI-400A - Outside Drawing

30
+0.4
-0
+0.4
-0
隣に実装する時は、中心間の距離を最低１２０ｍｍ
上下に実装するときは、中心間の距離を最低７０ｍｍ
あけること。
パネルカット寸法
(135)
(144)
7
92 96
48
45
92.2
45.2

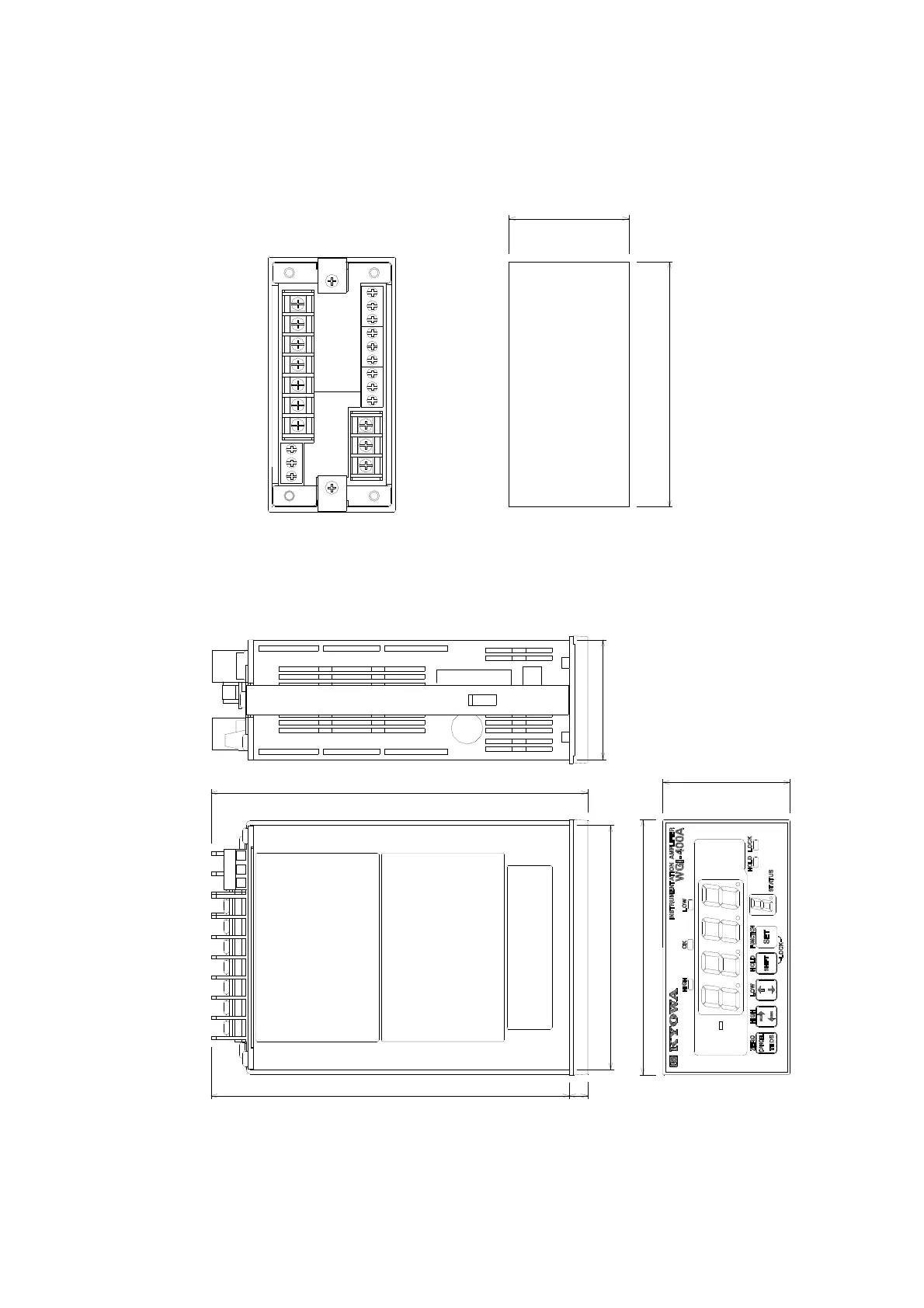

5-2 OUTSIDE DRAWING
1) Standard model with no optionals.
Panel cut dimensions
When mounting multiple WGI-400A uni
t
s, keep at
least 120-mm distance between centers of the next located panels and at least 70-mm distance between centers of the above and below located panels.
