TV Antennas (Standard Roof Mount)
On the roof is a standard antenna for TV reception, will rotate 180
degrees in either direction to a full 360 degree circle.
Inside of antenna head is a module that requires 12 volt DC power
to activate the amplifier to improve signal. Without 12 volt power, it
will not change.
A power supply is located on the sidewall inside of coach, near the
TV. A push button switch must be turned on and a light will shine ,
indicating 12 volt power is present. A coax wire is attached to
antenna underneath, not visible and goes from power supply to roof
antenna and returns signal to the TV.
To rotate antenna, press white button on the side of knob, hold and
rotate slowly, until you see the best picture.
When using cable signal. BESURE to turn 12 volt power off at the
power supply.
To test system:
1. Make sure the television is working properly.
2. Switch the power supply ON and OFF to see if there is a
difference in the picture quality while watching TV. If NO
difference, test for 12-volt power at the cable on the roof top.

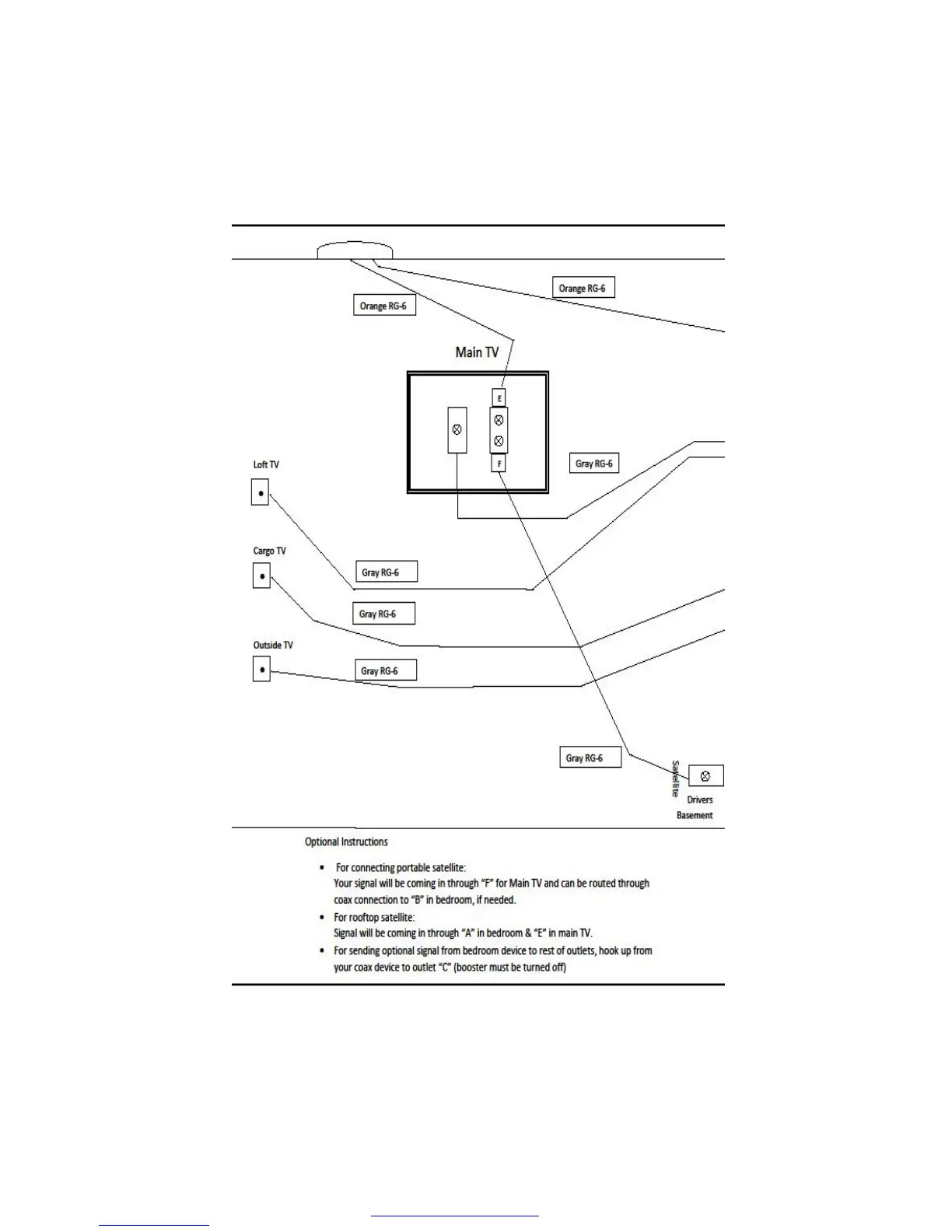

For TV antenna wiring and hook-ups, see diagram enclosed in
owner’s manual as supplied in toy hauler.
