Fuel Cell
The fuel cell system was developed for each owner to carry
gasoline in a tank or tanks (2) installed under the frame between two
special cross members welded to frame, The tank is attached to the
frame members with # 5 grade bolts and nuts. Fuel in the rear
tank will supply gasoline for any toys having a gasoline engine.
Rear tank will have a pump, hose and discharge nozzle. Hose and
nozzle will be in a caged compartment, under the floor and attached
to main rail of frame. Front tank (if equipped ) is for generator.
Power for pump is supplied by a 12 VDC converter and/or battery
when 120 VAC is not available. It is fused through the 12 volt panel
in the load center. Red wire is positive and black wire is negative.
Above the tank is a 4” x 6” compartment door in front or just behind
gas fill, located on sidewall. Inside is the fuel gauge, one switch to
turn fuel pump on or off, (upper) and lower is a slide switch to show
amount of fuel in each tank.
A timer is also installed to be sure pump is off or it will shut off within
5 minutes. Instructions are on lower part of compartment.
All required hoses, along with vents are installed. Place nozzle into
tank of engine and squeeze handle to release fuel. DO NOT run
pump more then 3 minutes with nozzle closed. Pump life will be
reduced.

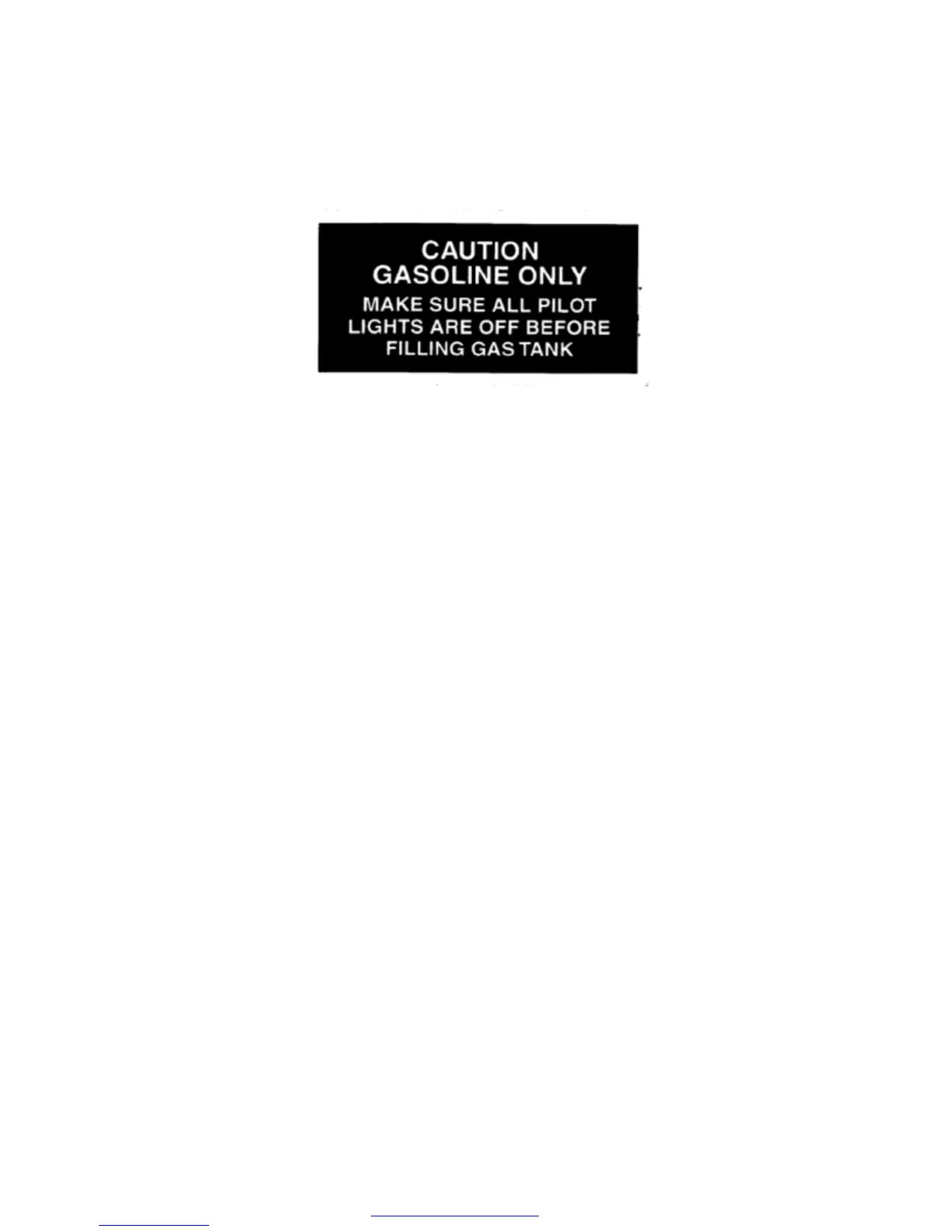

DO NOT fill tank on RV over 90% of tank volume
WARNING; THE nozzle DOES NOT have a “ fill automatic
shutoff” on it.
