ELECTRICAL SYSTEM
General Information
The electrical system in your recreational vehicle is designed for
using both 120 volt AC (alternating current) and 12 volt DC (direct
current) capabilities. All installations and designs are built to comply
with safety requirements of ANSI standard 1192, National Electric
Code and Canadian Standards Association.
All coaches manufactured by KZ have 30 amp or 50 amp service
pre-wired into the breaker box.
Changes and Modifications
Any changes, alternations, additions, and/or modifications need to
be performed by qualified electrical technicians, using only approved
components which meet safety and code requirements. This
includes owners, dealers, etc. who desire to make changes. The
manufacturer is not responsible for any changes, or alterations,
made to the 120 AC system.
120-Volt A/C
Power Cord — 50 AMP

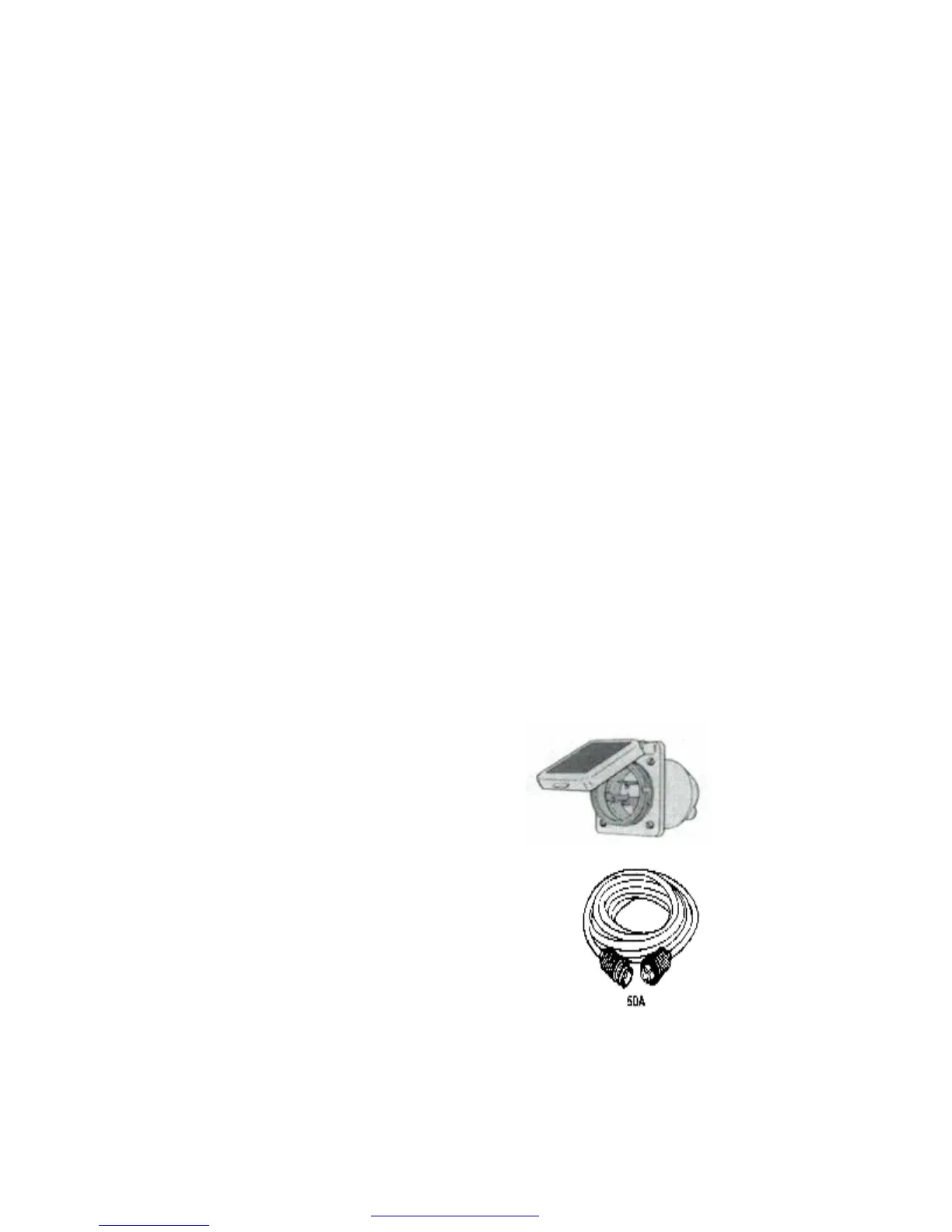

Energy is placed into the coach thru a 50 amp rated power cord,
that is detachable from connecter as shown, labeled for correct
amperage. This cord places 120 volt AC power into distribution box.
With detachable system, cord is removed and stored inside of
coach during travel as shown to your
right side.
Energy will enter through one of 2 main
breakers feeding wall receptacles and
appliances. This power cord will be
approximately 26 to 30 feet in length.
Each cord has the correct gauge of wire
to carry the correct voltage to coach.
In some hook-ups the power cord may not be
long enough and extension cords are required.
ALWAYS use a cord with the gauge of wire
equal to or greater than the power cord.
Should you use a cord with a smaller wire,
overheating, loss of amperage, and possible
melting could occur.
