52
DO NOT over fill tank as it is plastic and cannot hold any
pressure. It will break and leak, NOT covered as warranty.

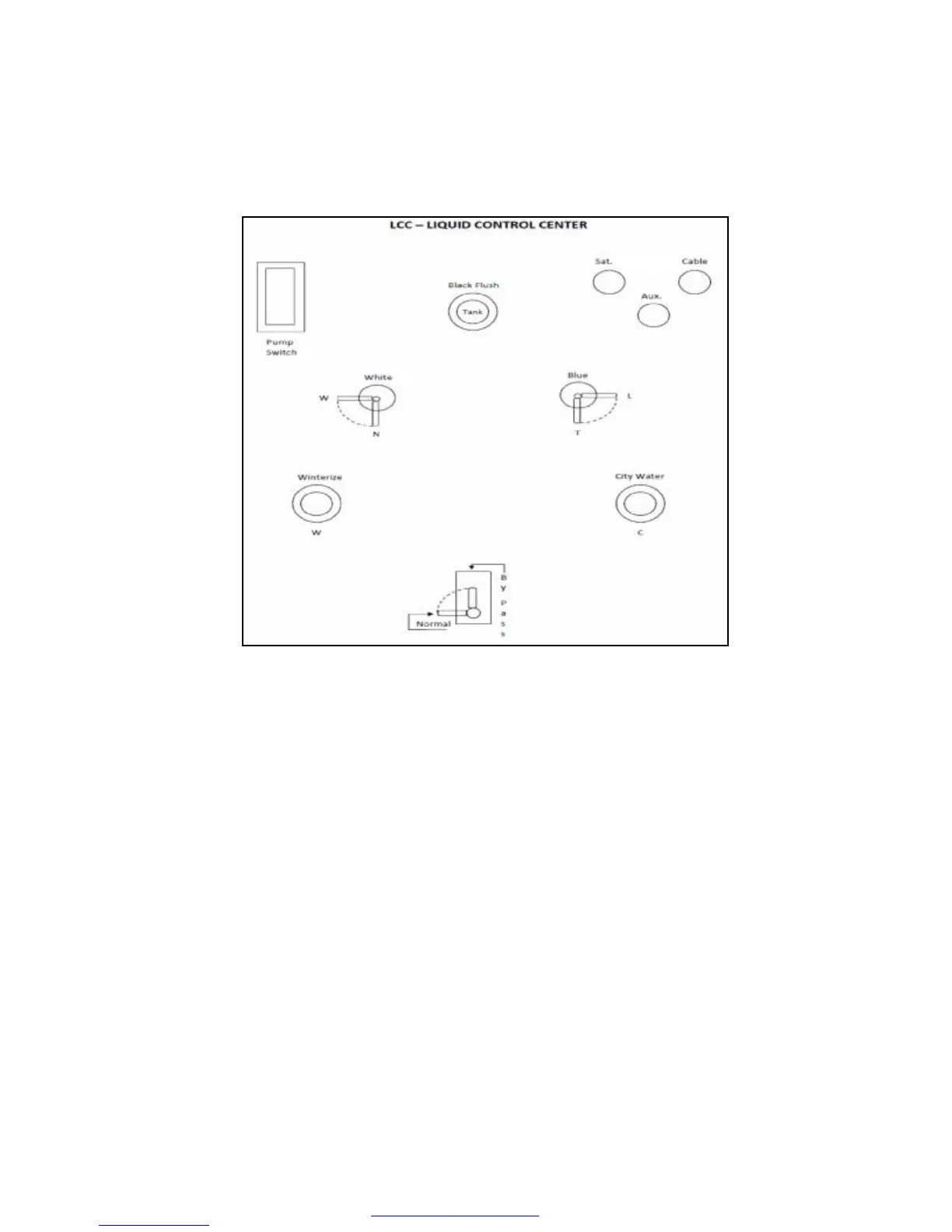

You have filled the tank and are now ready to dry camp,12 volt DC
power is required for pump to operate. Pump switch is located at top
left corner of panel. Pump will run until 40 lbs. of pressure is
achieved and stop. When pressure drops to 20 lbs., pump will
restart.
3. To fill lines and water heater, place BLUE knob (valve) to
horizontal position “L”. and WHITE to “N” ,normal.
Hook up same as #1 and fill all lines. Water heater will fill first and
then lines. This will be your main source of water. Open faucets
while filling to allow air to escape.
4. For your safety, you should sanitize the potable water system
when your RV is new or has been stored for a period of time such as
over winter, as it may become contaminated.
