76
“in-line” fuses attached to their own wire harness.
Circuit breakers are placed at several locations. A 30 amp breaker is
located within 18” from battery. Most do NOT have the reset button
and are automatic reset.
Other small breakers are located in the fuse panel operating slide
out. Amp rating on these are 30 amp. Color of breakers will vary.
On the Venom models you will find 3 breakers, close to the battery,
in the left lower front compartment as follows:
Front- 20 amp for battery.
Center- 30 amp for slide-out.
Rear– 15 amp is furnace.
An in-line fuse holder is also in this compartment. A 10 amp fuse
operates the leveling system. DO NOT INSTALL ANY FUSES
LARGER THAN 10 AMP AS IT WILL VOID WARRANTY.
All wiring used in your coach meets correct amp rating correlated
with fuses and breakers in respective panels as required by code.
The RV battery is placed in parallel circuitry with the battery on your
tow vehicle. Care needs to be exercised not to drain both batteries
together. There are two methods of avoiding this condition.
DO NOT replace circuit breakers or fuses with a higher current rating than those
supplied with your coach. Over-fusing can cause a fire hazard by overheating the
electrical wiring.
WARNING
!

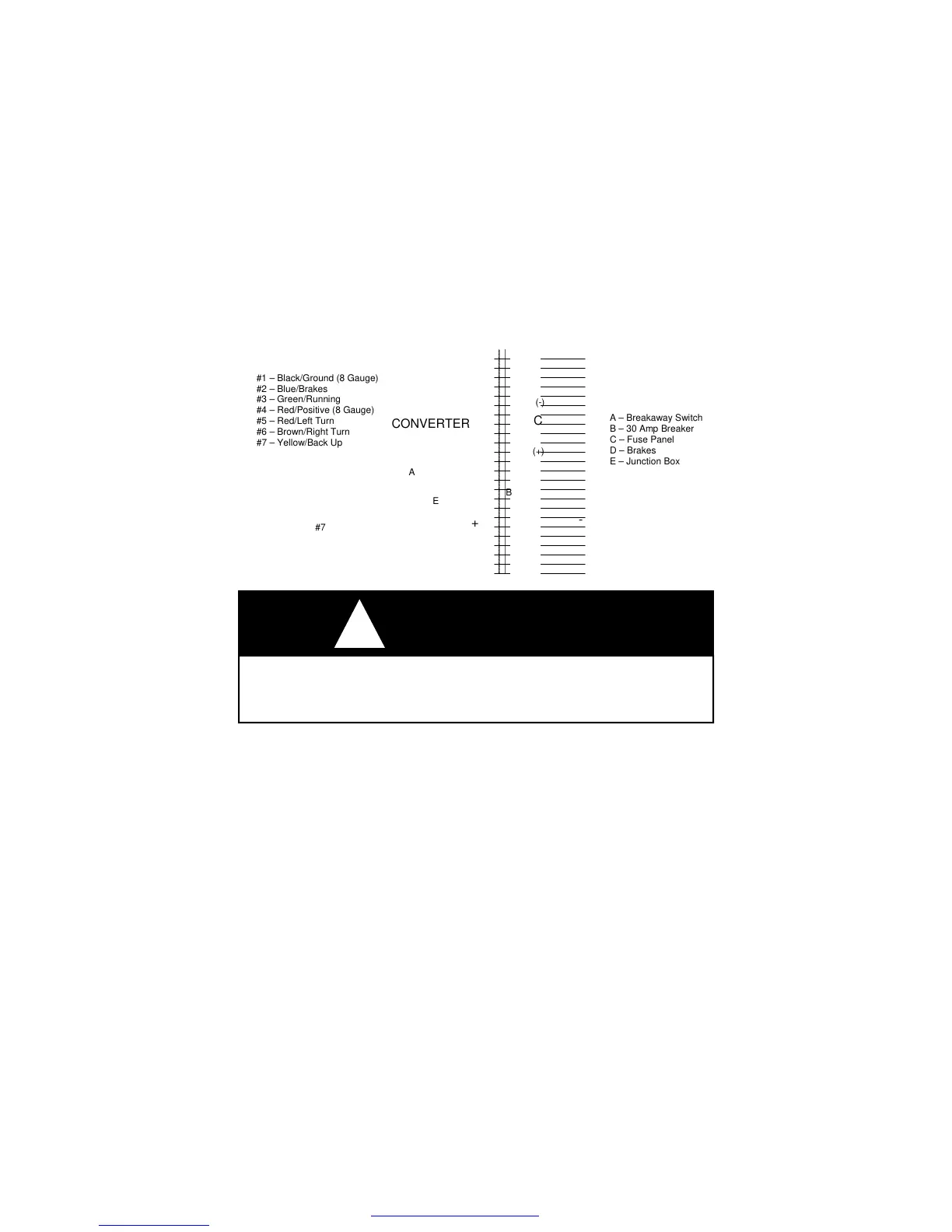

CONVERTER
+
-
C
#7
A
B
#1 – Black/Ground (8 Gauge)
#2 – Blue/Brakes
#3 – Green/Running
#4 – Red/Positive (8 Gauge)
#5 – Red/Left Turn
#6 – Brown/Right Turn
#7 – Yellow/Back Up
A – Breakaway Switch
B – 30 Amp Breaker
C – Fuse Panel
D – Brakes
E – Junction Box
E
(+)
(-)
AUXILIARY
BATTERY
#2
#4
#6
#1
#3
#5
D
