3. Select the desired enclosure’s orientation (10° steps angle selection) and secure the locking pin to the enclosure
through the U-bracket’s pivoting arm.

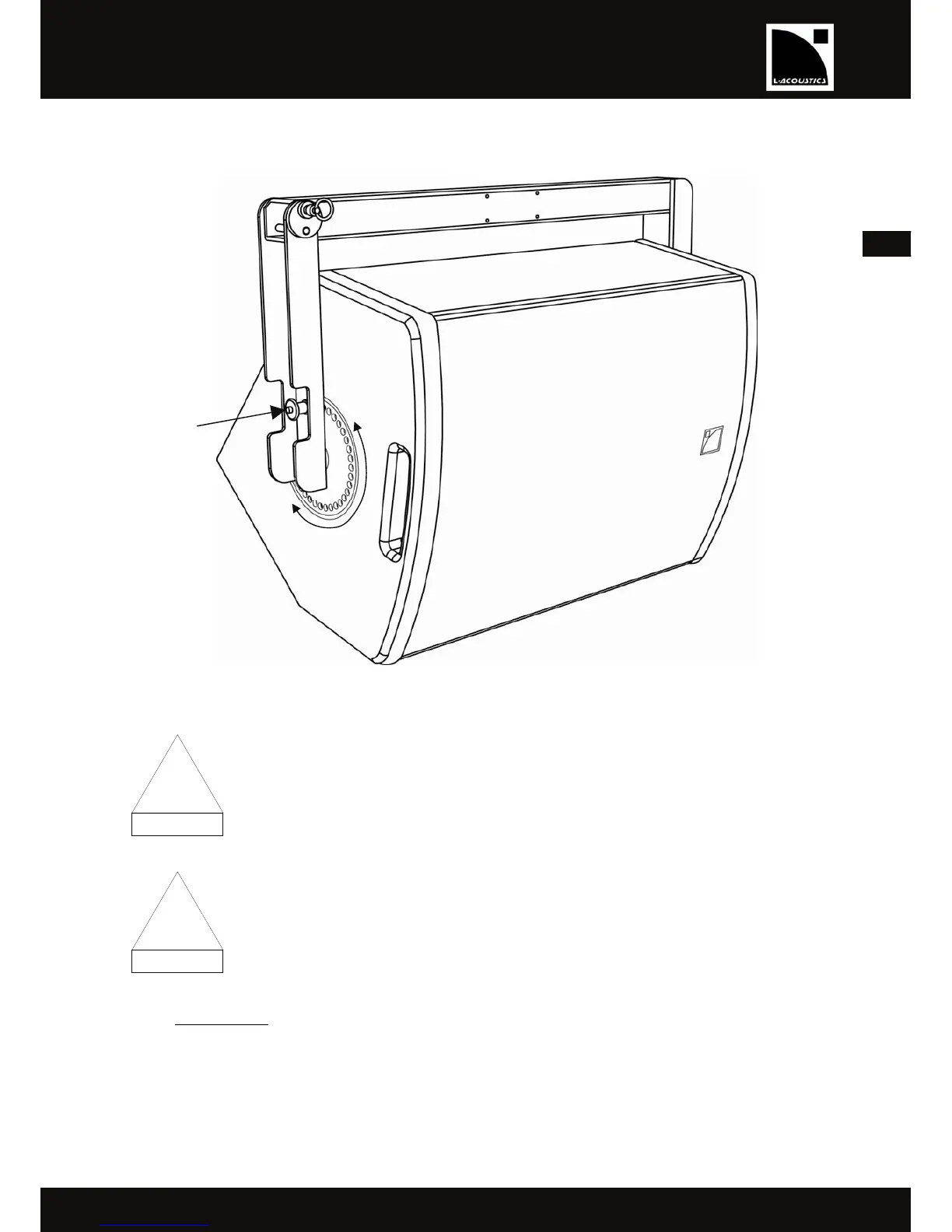

Figure 12: Selecting and securing the enclosure’s orientation
The locking pin must be located on the pivoting arm (and not on the fixed arm) to secure the
U-bracket to the enclosure.
Verify that the enclosure is secured to the U-bracket by checking that the locking pin is engaged
and cannot move freely.
L-ACOUSTICS recommends using an additional safety point when rigging enclosures.
A safety eye-bolt accessory can be added using the 8mm/0.31in insert located on the rear face
of the 12XT enclosure (see Figure 18).
6.2.2 Disassembling
Disassembling should be carried out in the reverse order of assembly.
