5 ETR8-2, ETR12, ETR15, ETR15P, AND XTLIFTBAR ACCESSORIES
5.1 ETR8-2 mounting accessory
The L-ACOUSTICS
®
ETR8-2 U-bracket (Figure 3) is adapted for attaching an L-ACOUSTICS
®
8XT or 108P
enclosure. It can be either fastened to a wall or suspended from a structure or ceiling (typically for under-balcony
applications).
It is possible to secure the ETR8-2 to a structure using two 8mm/0.31in screws and one 10mm/0.39in screw (not
provided).
It is the sole responsibility of the user to verify that the ETR8-2 is correctly secured to the structure.
L-ACOUSTICS recommends securing to a concrete ceiling using expansion anchors designed to
support at least 5 times the total load of the system (the weight of the product is indicated on the
identification label of each product).
The ETR8-2 can support one 8XT or 108P at the maximum.

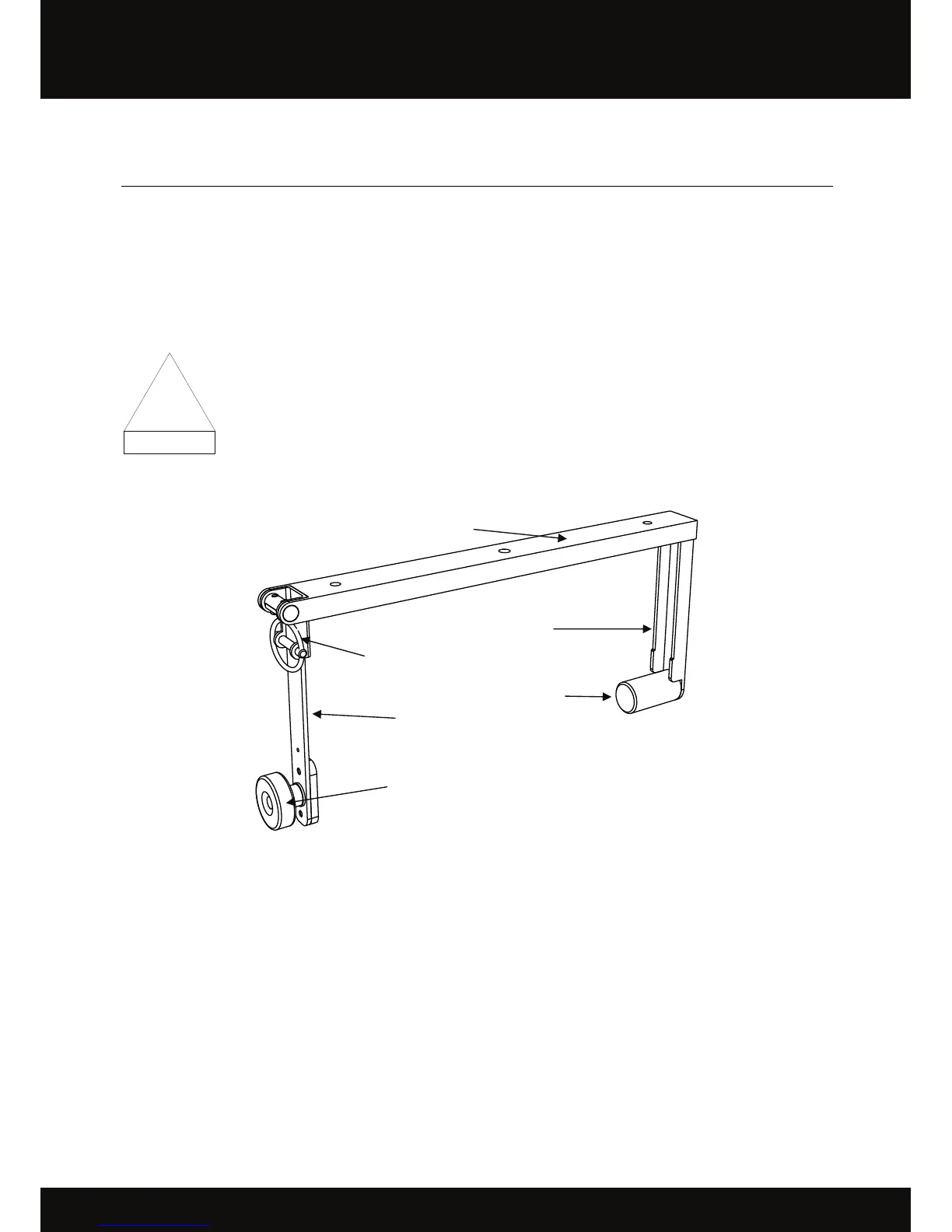

Figure 3: ETR8-2 mounting accessory
Main ba
r
Fixed arm
Knob
Pivoting arm
Stud
Locking pin
!
WARNING
