3. Position the shackle in the predetermined hole: hole position #3 for azimuth angle setting, or hole positions #1 to
5 corresponding respectively to site angles of +14°, +7°, 0°, -7°, -14°.

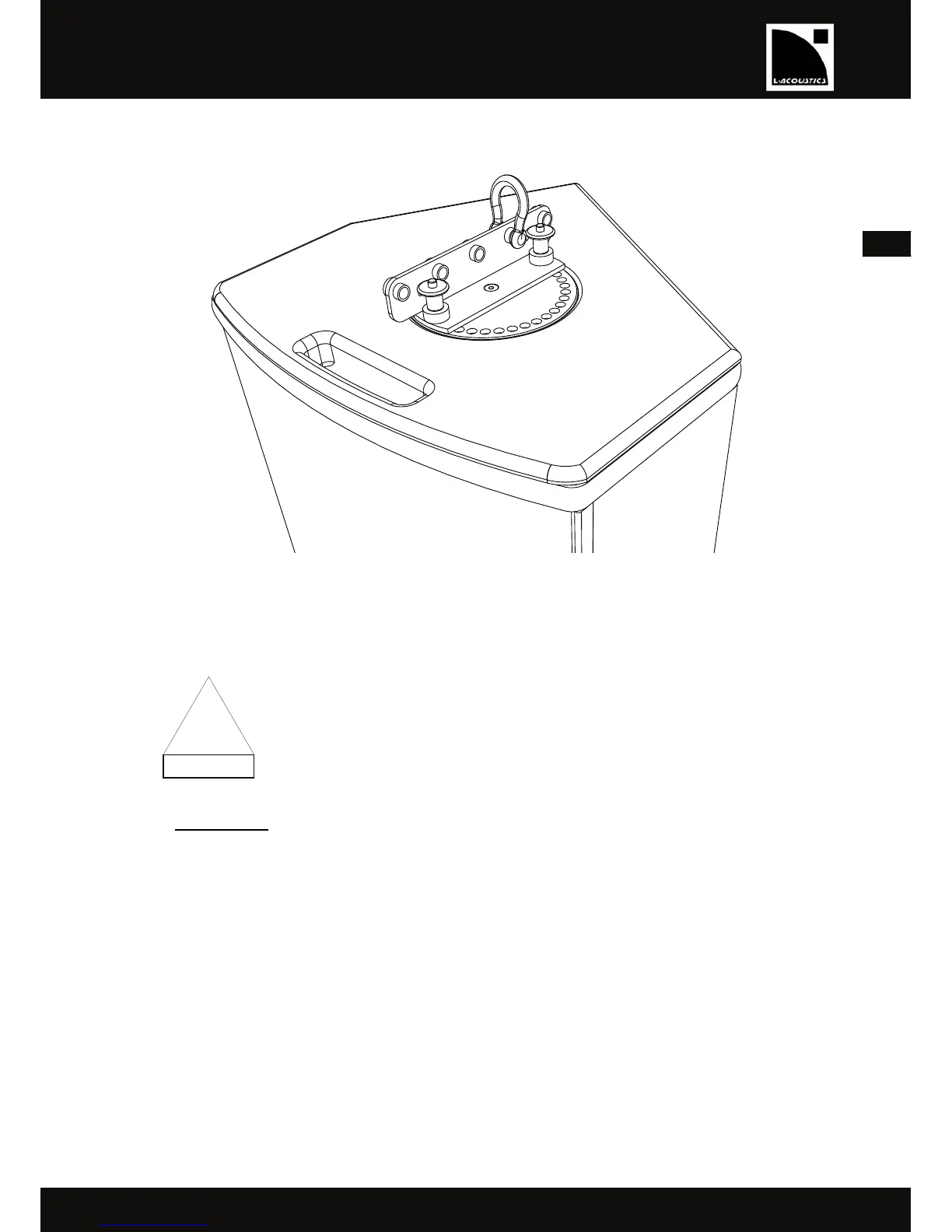

Figure 17: XTLIFTBAR with shackle in hole position #4 (-7° site angle)
4. Fly the enclosure by rigging to the shackle.
L-ACOUSTICS recommends using an additional safety point when rigging enclosures.
A safety eye-bolt accessory can be added using the 8mm/0.31in insert located on the rear face
of the 12XT enclosure (see Figure 18).
6.4.2 Disassembling
Disassembling should be carried out in the reverse order of assembly.
