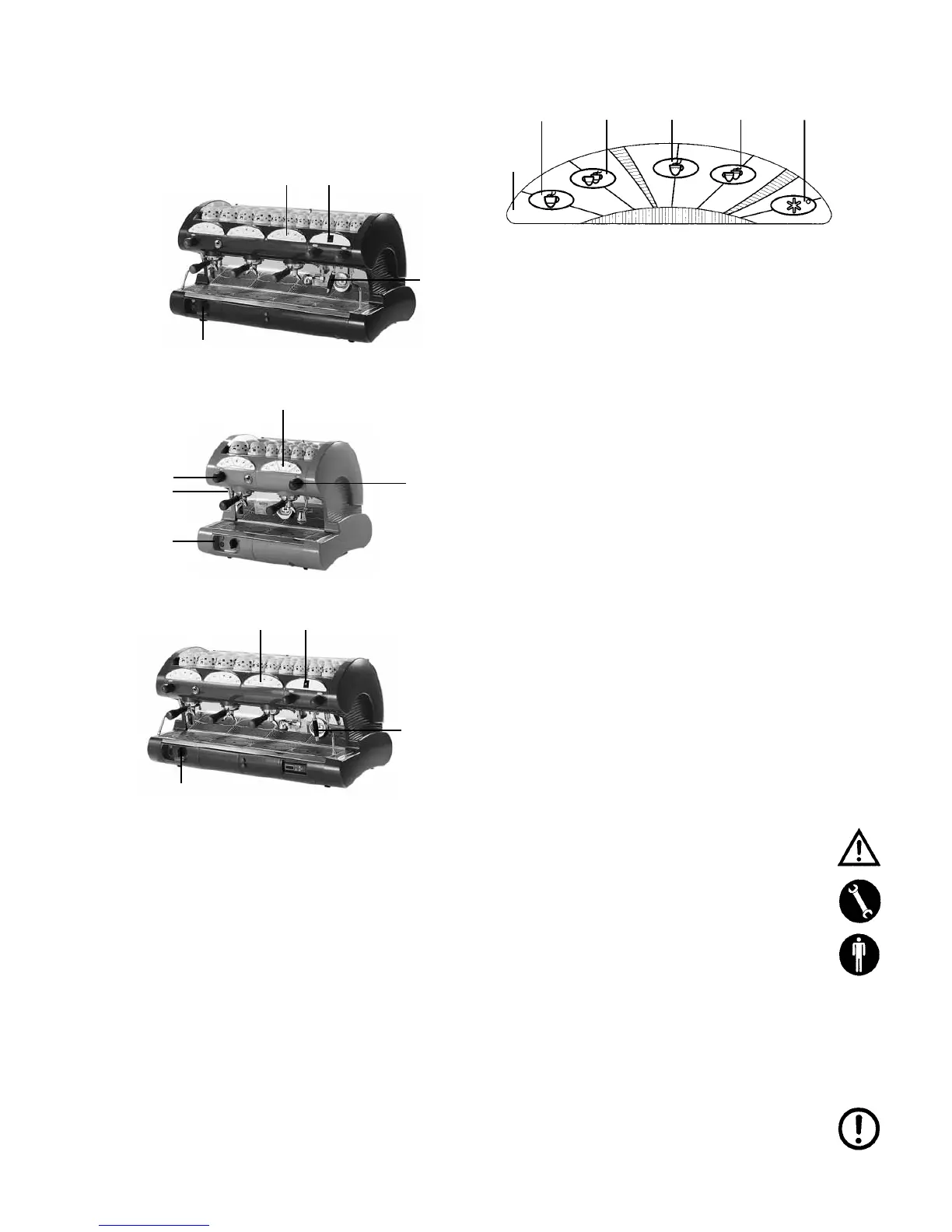

8.4 - BAR V AND HOTEL V MODELS
These models are equipped with automatic, continuous delivery
brewing units with solenoid valve and programmable coffee dosing,
microprocessor-aided sealed digital brewing control, control board
with 4 different coffee-dose selection positions, a stop button for each
brewing unit and a timer-aided hot-water delivery system.
BAR V Model
HOTEL V Model
BAR D Model
This model is equipped with automatic, continuous delivery brewing
units with solenoid valve and programmable coffee dosing, micro-
processor-aided sealed digital brewing control, control board with 4
different coffee-dose selection positions, a stop button for each
brewing unit, programmable coffee counting computer on each unit
and for each cup, a timer-aided hot water delivery system, program-
mable water consumption and digital clock.
COFFEE DOSE PROGRAMMING DIRECTIONS FOR THE
“BAR V” - “HOTEL V” - “BAR D” MODELS
17. UNIT CONTROL:
Key function:
A. 1 normal cup of coffee
B. 2 normal cups of coffee
C. 1 “large” cup of coffee
D. 2 “large” cups of coffee
E. Brewing unit stop/continuous delivery
The “*” (E) button is designed for continuous delivery and delivery
stop.
The machine therefore has a double function:
A. By pressing the “*” (E) button, the equipment is run as a semi-
automatic machine.
B. By pressing the 4 selection buttons, the machine is operated
through electronic dosing.
By holding the “*” (E) button pressed for over 10 seconds, the machi-
ne will enter the programming phase, as signalled by the low fre-
quency flashing of the LED belonging to the unit on which program-
ming is being carried out.
Release the programming button (the LED will continue to flash) and
press the button relating to the unit on which you wish to programme
coffee dosing; at this stage delivery will start; once the desired dose
has been reached, press any button of the unit concerned to interrupt
delivery; the dose will be stored in the memory and the machine will
exit the programming phase (the LED will stop flashing and switch
off).
1. This operation should be repeated on the remaining selection
buttons for the various groups.
2. The same operation needs to be repeated if you wish to increase
or decrease the set dose.
3. By programming the first unit to the left, the programming opera-
tion will be also accomplished on the various groups.
NOTE: The programming phase is signalled by the flashing LED
of the unit on which programming is being carried out.
HOT WATER DOSE PROGRAMMING DIRECTIONS FOR
THE “BAR V” MODEL AND “BAR D” MODEL
By holding the “*” (E) button pressed for over 10 seconds, the machi-
ne will enter the programming phase; release the programming
button (the LED will continue to flash) and press the hot-water delive-
ry switch (15); hot water delivery from the telescopic nozzle (13) will
start; once the desired dose has been reached, press the hot water
delivery switch to stop water supply. The LED will switch off, the dose
will be stored in the memory and the machine will exit the program-
ming stage.
COFFEE DELIVERY
To obtain coffee delivery, press the selected button on the brewing
unit (17); the green LED in the '*' (E) button will switch on, after
which coffee delivery will start and will be automatically interrupted
once the previously set amount has been reached. Delivery stop will
be signalled by the related LED switching off.
Delivery or selection deletion may be interrupted by pressing any key
on the brewing unit (17).
A B C D E
17
17 15
13
17
20
3
3
13
27
