Laars FT Series - Boiler Dimensions; Physical Dimensions and Connections

Page 6
Description Diameter
A Air Intake Collar 3”
B Vent Pipe Collar 3”
C Boiler Supply 1-1/2” NPT
D Boiler Return 1-1/2” NPT
E DHW Outlet 3/4” NPT
F DHW Inlet 3/4” NPT
G Gas Inlet 3/4” NPT
H Condensate Line 1/2” (no NPT)
I DHW Recirculation 3/4” NPT
J Pressure Relief Valve & Air Vent 1” NPT

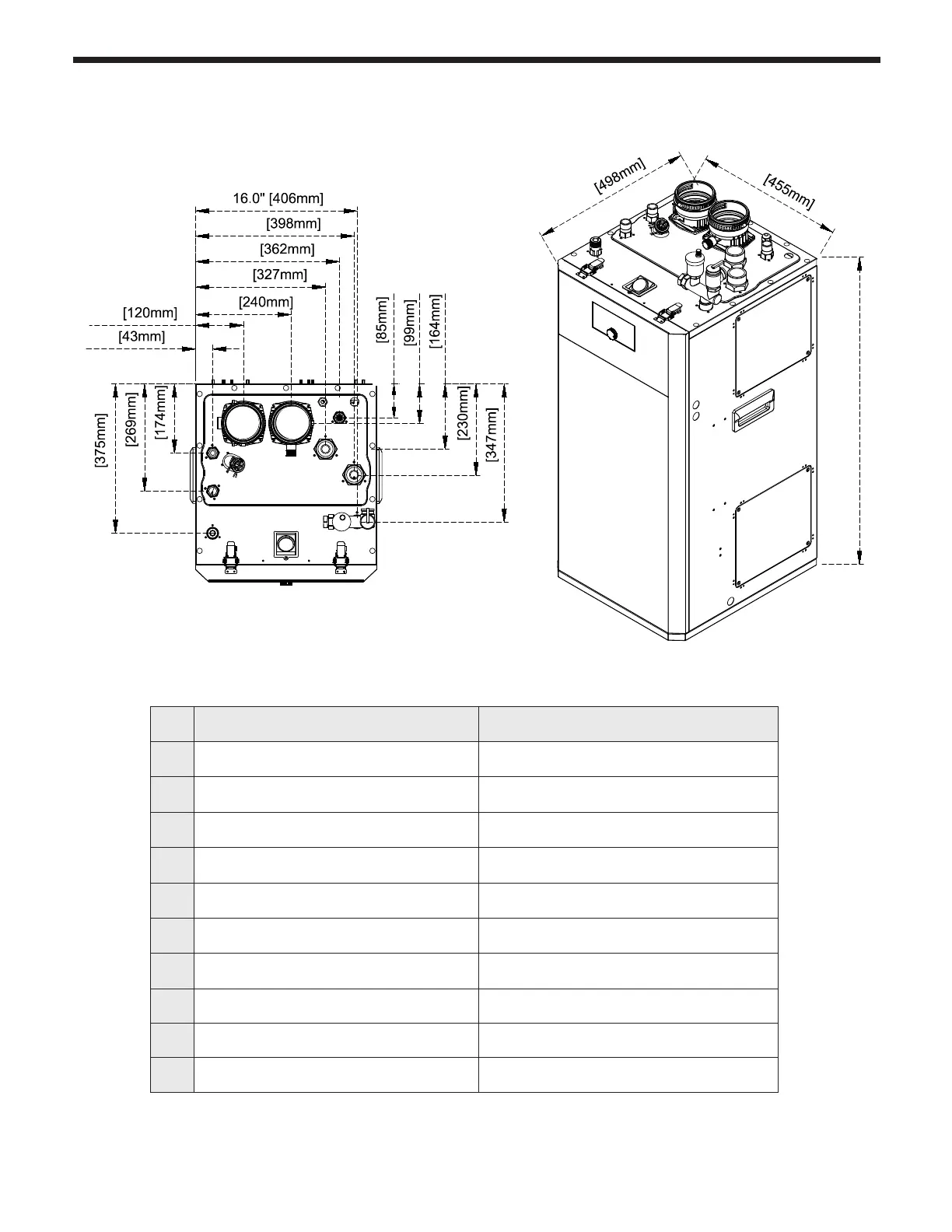

2.3 Dimensions
C
I
D
E
F
G
BA
15-5/8˝
14-1/4˝
12-7/8˝
9-1/2˝
4-3/4˝
1-3/4˝
14-3/4˝
10-5/8˝
6-7/8˝
3-3/8˝
3-7/8˝
6-1/2˝
9˝
13-5/8˝
19-5/8˝
17-7/8˝
38-1/4˝
[972mm]
H
I
J
