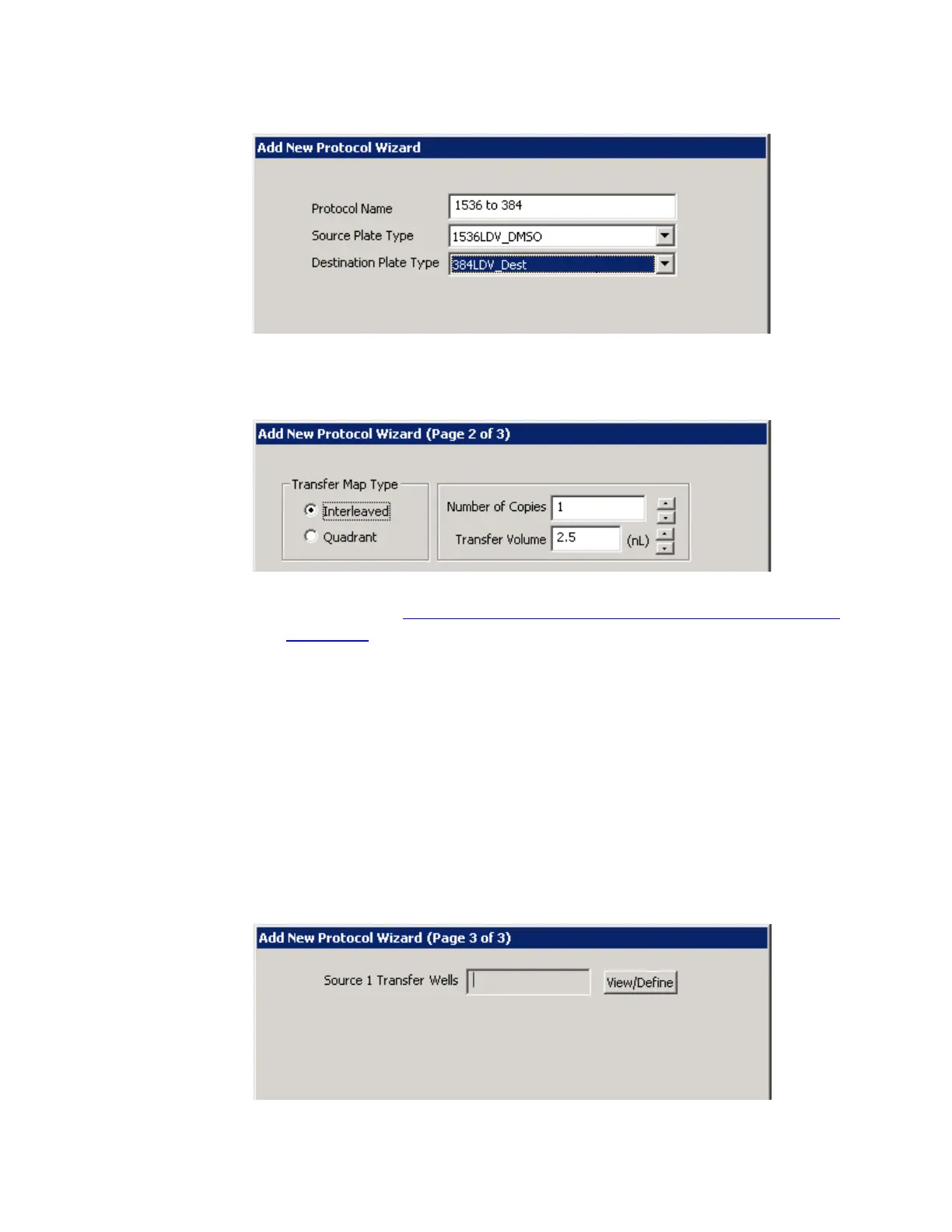

Figure 5.14 Add new protocol wizard page 1 of 3
3. Click the N
EXT button. The second ADD NEW PROTOCOL WIZARD dialog
box opens.
Figure 5.15 Add new protocol wizard page 2 of 3
a. Transfer Map Type: Select an interleaved or a quadrant liquid transfer
protocol type. See āWhat types of liquid transfer are supported?ā on
page 1-12.
b. Number of Copies: Enter the number of times the protocol will be
executed. The valid range is 1 to 10,000 copies. You are prompted to
load and unload the source microplate and the specified number of
destination microplates.
Transfer Volume: Enter the transfer volume in 2.5 nL increments up to
2000 nL or up to 500 nL for aqueous transfers. If you enter the transfer
volume directly instead of using the increment/decrement buttons,
remember that the value must be an even multiple of 2.5 nL.
4. Click the NEXT button. The third ADD NEW PROTOCOL WIZARD dialog box
opens.
Figure 5.16 Add new protocol wizard page 3 of 3
To Next Page
