Echo Liquid Handler Software 5-49

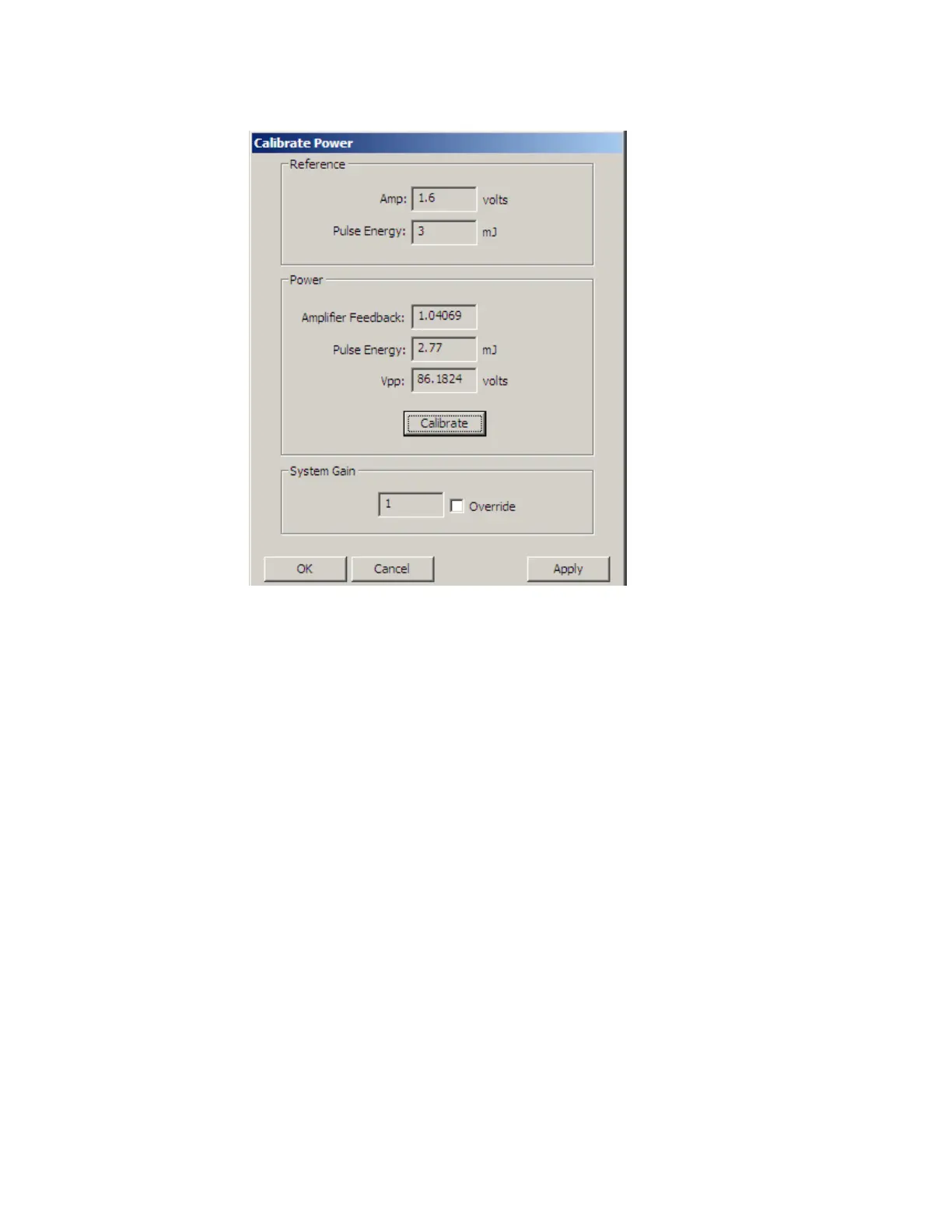

Figure 5.45 Calibrate Power dialog box after power calibration
3. System Gain: During normal operation, the S
YSTEM GAIN value should
not be changed by the user. However, the user can override the
automated power calibration by adjusting the SYSTEM GAIN scalar
multiplier value. The default SYSTEM GAIN value is 1.0. Select the
OVERRIDE checkbox and enter a multiplier value manually.
4. After power calibration has been performed and/or the SYSTEM GAIN
parameter has been modified, there are three actions to choose from.
OK: The OK button applies the new AMPLIFIER FEEDBACK value and/or
the new System Gain value and closes the C
ALIBRATE POWER dialog box.
Change confirmation is not requested.
Apply: The APPLY button displays a dialog box asking for confirmation
of the AMPLIFIER FEEDBACK and/or SYSTEM GAIN change(s). Answering
Y
ES applies the changes. Answering NO closes the confirmation dialog
box without applying the change(s) and returns to the C
ALIBRATE POWER
dialog box.
Cancel: The C
ANCEL button closes the CALIBRATE POWER dialog box
without taking any further action.
