Manual Operation 4-17

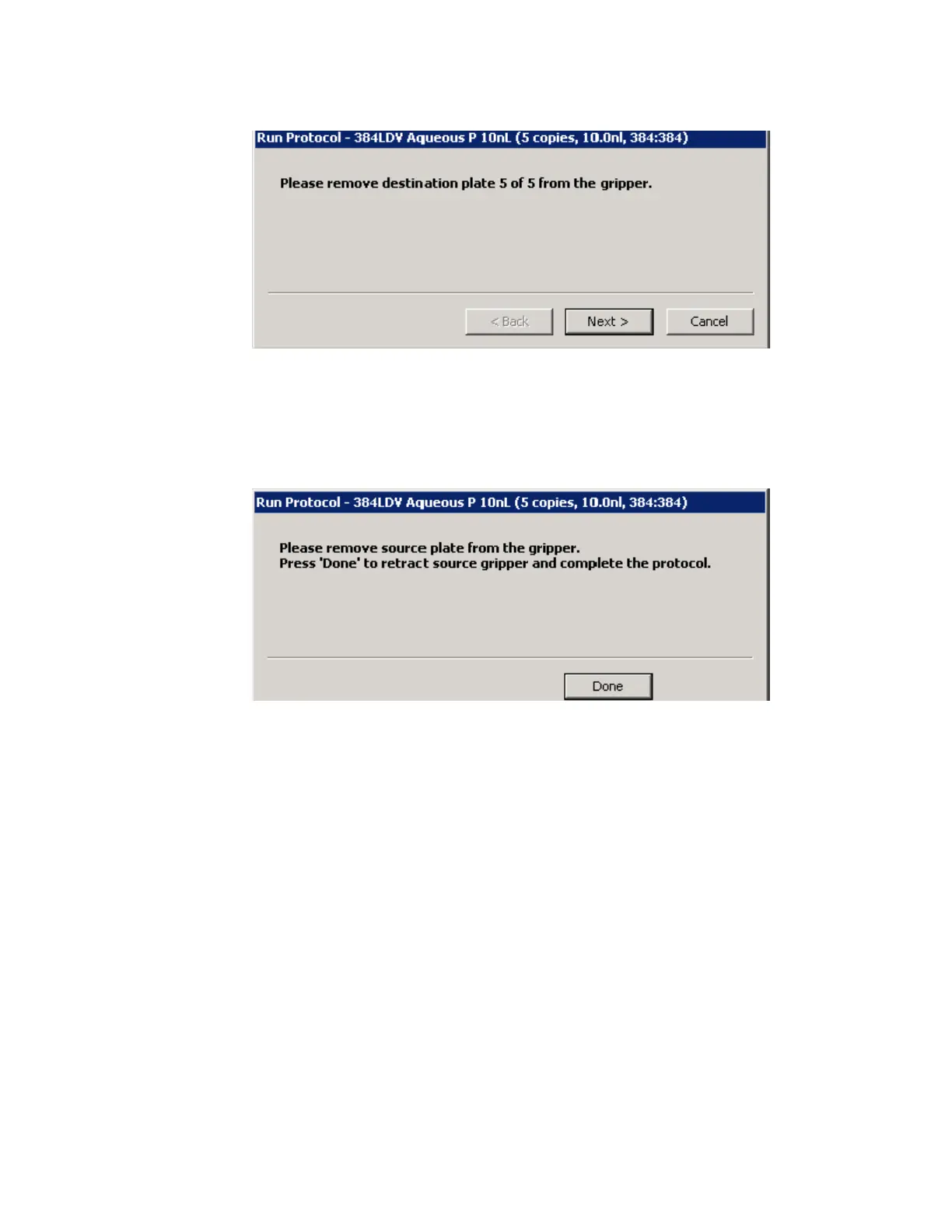

Figure 4.15 Removing destination plate
The destination plate gripper stage retracts into the Echo liquid handler
and the source plate gripper stage extends outside of the Echo liquid
handler.
7. Remove the source microplate and click the D
ONE button.
Figure 4.16 Removing source plate
The source plate gripper stage retracts into the Echo liquid handler.
The liquid transfer protocol is done.
