B-2 Echo Liquid Handler User Manual
B.1 Short flange height microplates
Left side: The barcode label may extend the full width of the microplate
flat surface. Its bottom edge may be no lower than either ≥1.0 mm above
the top of the skirt or ≥3.0 mm above the bottom of the skirt. Refer to
Figure B.1.
Front side: Same as the left side.
Right side: The right side of a microplate cannot be used for a barcode
label.
Back side: The back side of a microplate cannot be used for a barcode
label.

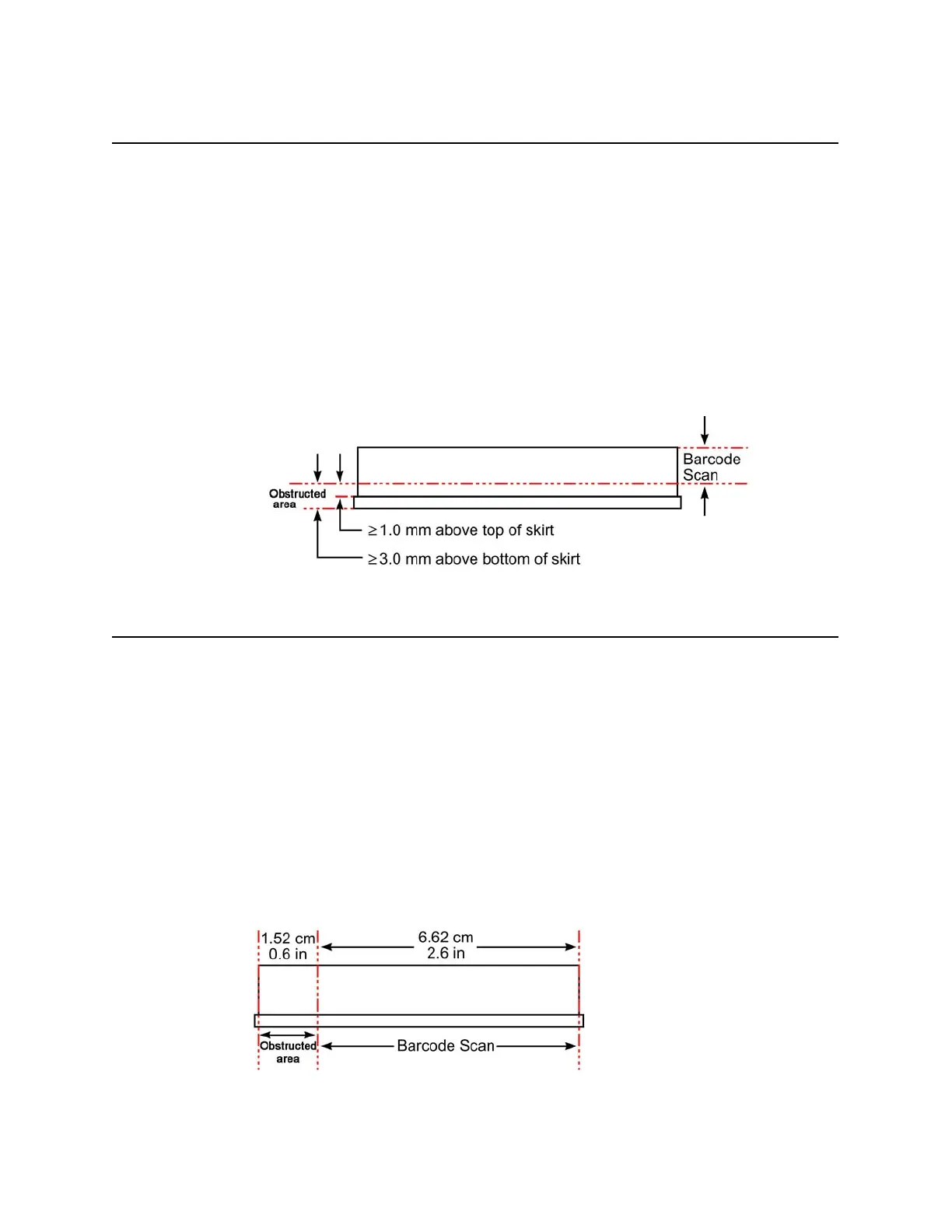

Figure B.1 Short flange height barcode locations and obstructed regions
B.2 Medium flange height microplates
Left side: Both source and destination microplates are obstructed on their
left sides. The 1.52 cm (0.6 in) obstructed area is shown in Figure B.2.
Front side: There is no obstruction on the front side of either source or
destination microplates.
Right side: The right side of a microplate cannot be used for a barcode
label.
Back side: The back side of a microplate cannot be used for a barcode
label.
Figure B.2 Medium flange height barcode locations and obstructed regions
