Labcyte Echo 555 - 1536-Plate to 384-Plate Liquid Transfer

1-16 Echo Liquid Handler User Manual
1.3.4 1536-plate to 384-plate liquid transfer

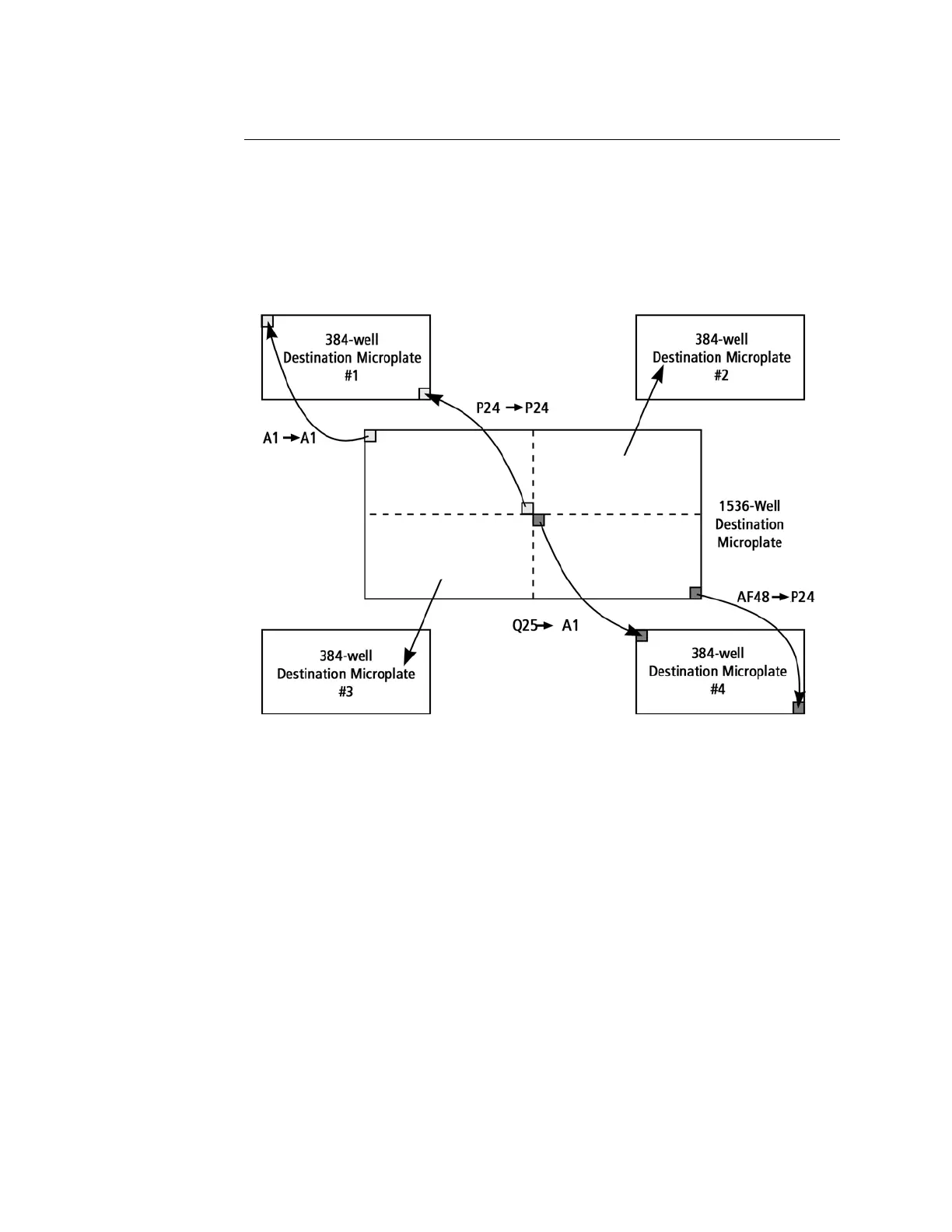

Figure 1.12 illustrates a 1536-well to 384-well quadrant fluid transfer.
Wells from a single 1536-well plate can be transferred, or destacked, to
four 384-well plates. Individual wells or all wells from each quadrant can be
transferred to the corresponding wells in the destination plate.
Figure 1.12 1536 to 384 quadrant full plate transfer
