MAINTENANCE
1.2.4 BODY GUIDE WEAR PLATES
REPLACEMENT
BODY GUIDE WEAR PLATES
REPLACEMENT PROCEDURE
• Remove the packer blade (refer to
packer blade removal procedure,
Sec. 1.2.5 ).
• Retract the packing cylinders and
move them out of the way.
• Remove body wear plates by
grinding or cutting the stitch welds
attaching plates to guide.
• Clean surfaces and position new
plates by tacking them in place.
• Once in proper position stitch weld
plates in place.
• Reinstall packer blade.

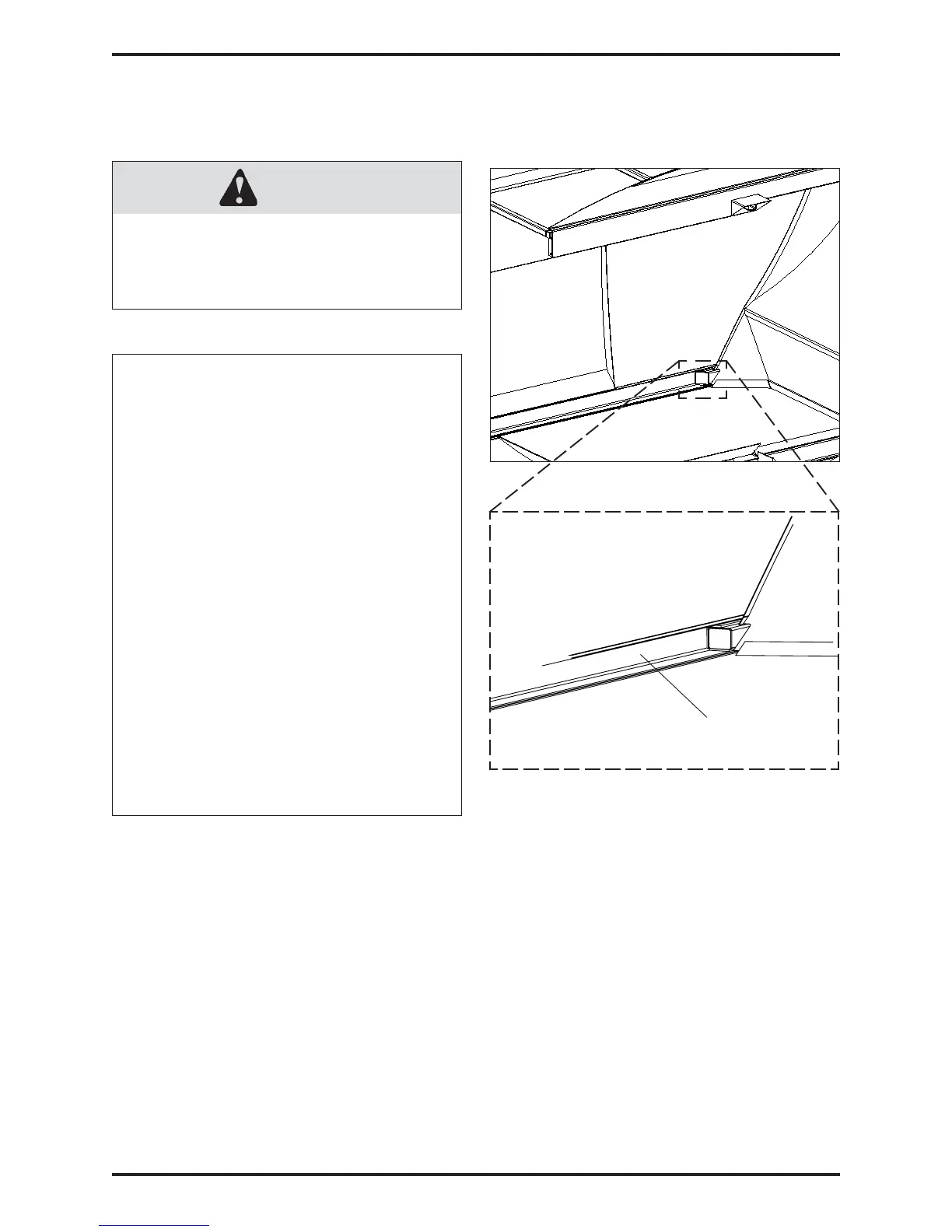

BODY GUIDE WEAR PLATES
Body guide wear plates
USE THE APPROPRIATE
LOCKOUT/TAGOUT PROCEDURE
AT ALL TIMES (SECTION 1.1.4).
FIGURE #1.7
DANGER
