Labrie Optimizer - Packer Blade Removal Procedure

OPTIMIZER
TM
20
1.2.5 PACKER BLADE REMOVAL
PROCEDURE
PACKER BLADE REMOVAL
PROCEDURE
• Start engine and hydraulic system.
bring the packer to the rear end of
the body to easily access the pins
(Figure #1.8).
• Remove rear cylinder pins (Figure
#1.8).
• Retract cylinders.
• Pull packer out of the body with
lifting device (Figure #1.9).

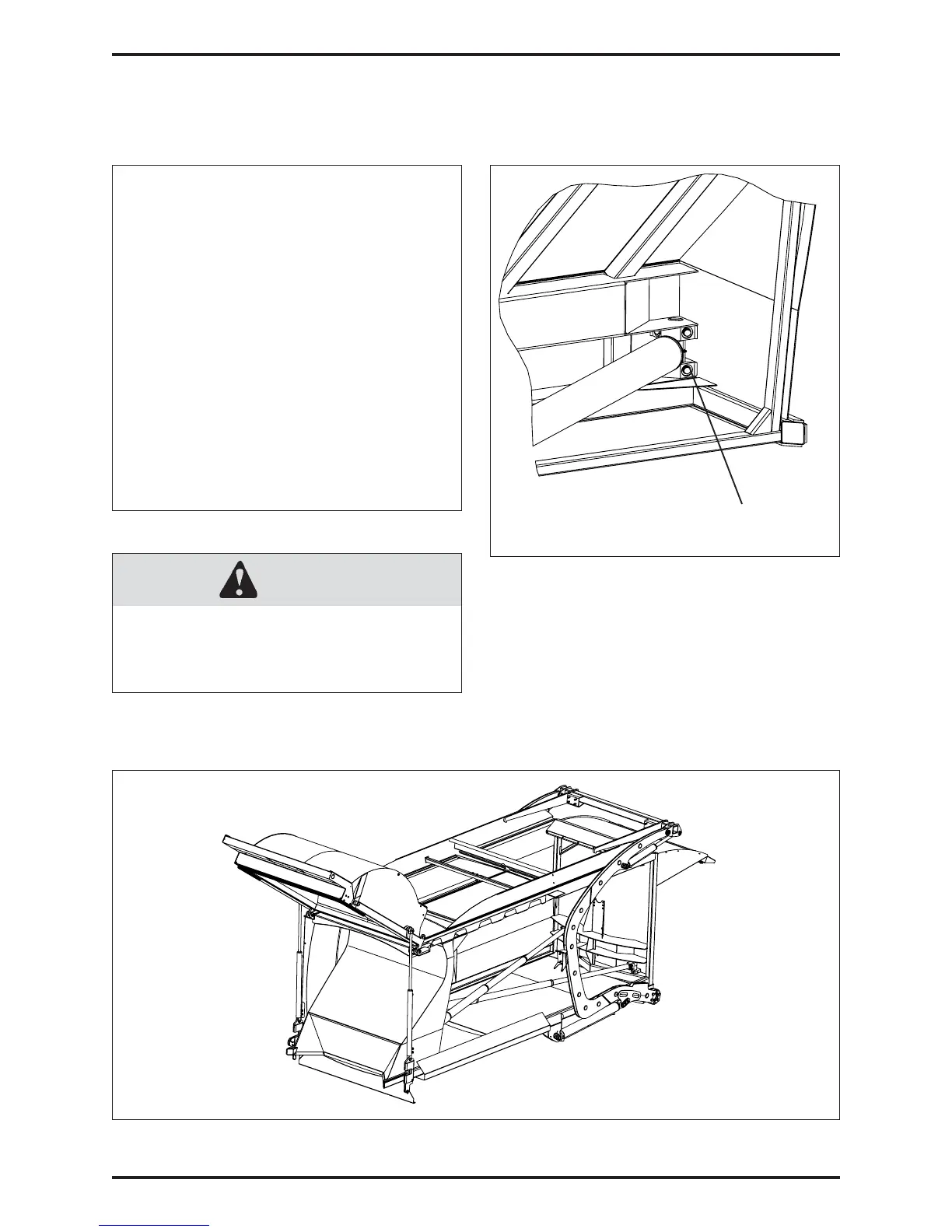

FIGURE #1.8
PACKER BLADE CYLINDERS
REAR PINS
FIGURE #1.9
PACKER AT THE REAR END OF THE BODY
REAR
PINS
USE THE APPROPRIATE
LOCKOUT/TAGOUT PROCEDURE
AT ALL TIMES (SECTION 1.1.4).
DANGER
