MAINTENANCE
1.3.2 TAILGATE SEAL AND HINGES
INSPECTION
The hinge pins must not have any signs of
excessive wear or metal fatigue. The retaining
bolts must be kept tight (Figure #1.15).
Perform a visual inspection of the rubber seal
along the rim of the tailgate. Replace any
broken components necessary
1.3.3 REAR BODY HINGE INSPECTION
Monthly lubrication of the body and chassis
hinges should be done (Figure #1.13). Also,
inspect for cracks or corrosion. Any eventual
cracks must be reported, recorded and repaired
by qualified personnel.
1.3.4 PROXIMITY SWITCHES ON TAILGATE
The unit has a proximity switch that activates
the back-up alarm and a warning buzzer
(inside the cab) to tell the operator that the
tailgate is unlocked (Figure #1.15). A
proximity switch (Figure #1.14), mounted on
top of the body will engage a light on the
console to warn the operator that the tailgate
is fully opened. Verify the proper working
order and adjustment of those two limit
switches.

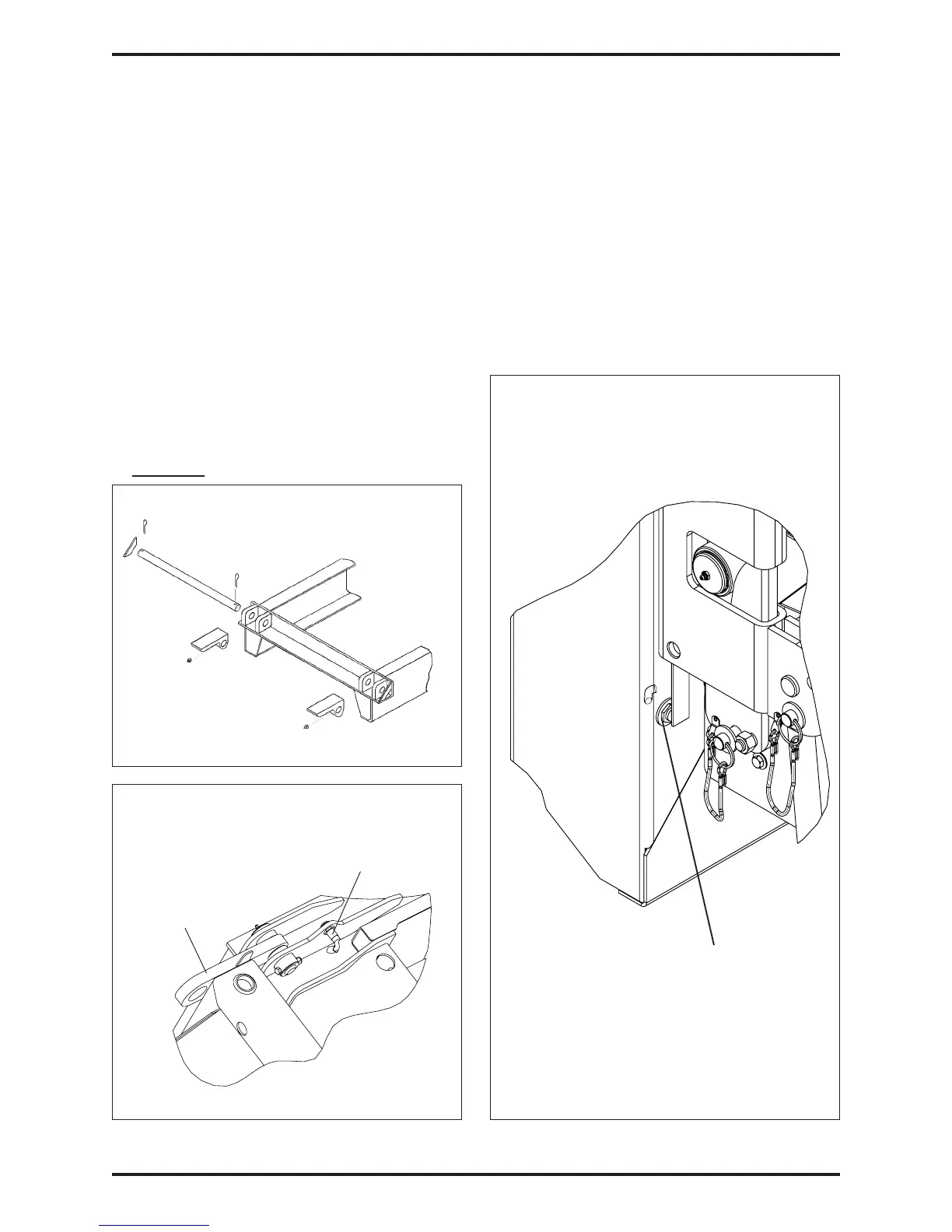

FIGURE #1.15
PROXIMITY SWITCH FOR
UNLOCKED TAILGATE
FIGURE #1.14
Limit switch
Tailgate
PROXIMITY SWITCH FOR FULLY
RAISED TAILGATE
CHASSIS HINGE
FIGURE #1.13
Proximity switch
