35
MAINTENANCE
1.4.12 BODY HOISTING SYSTEM
MAINTENANCE(cont’d)

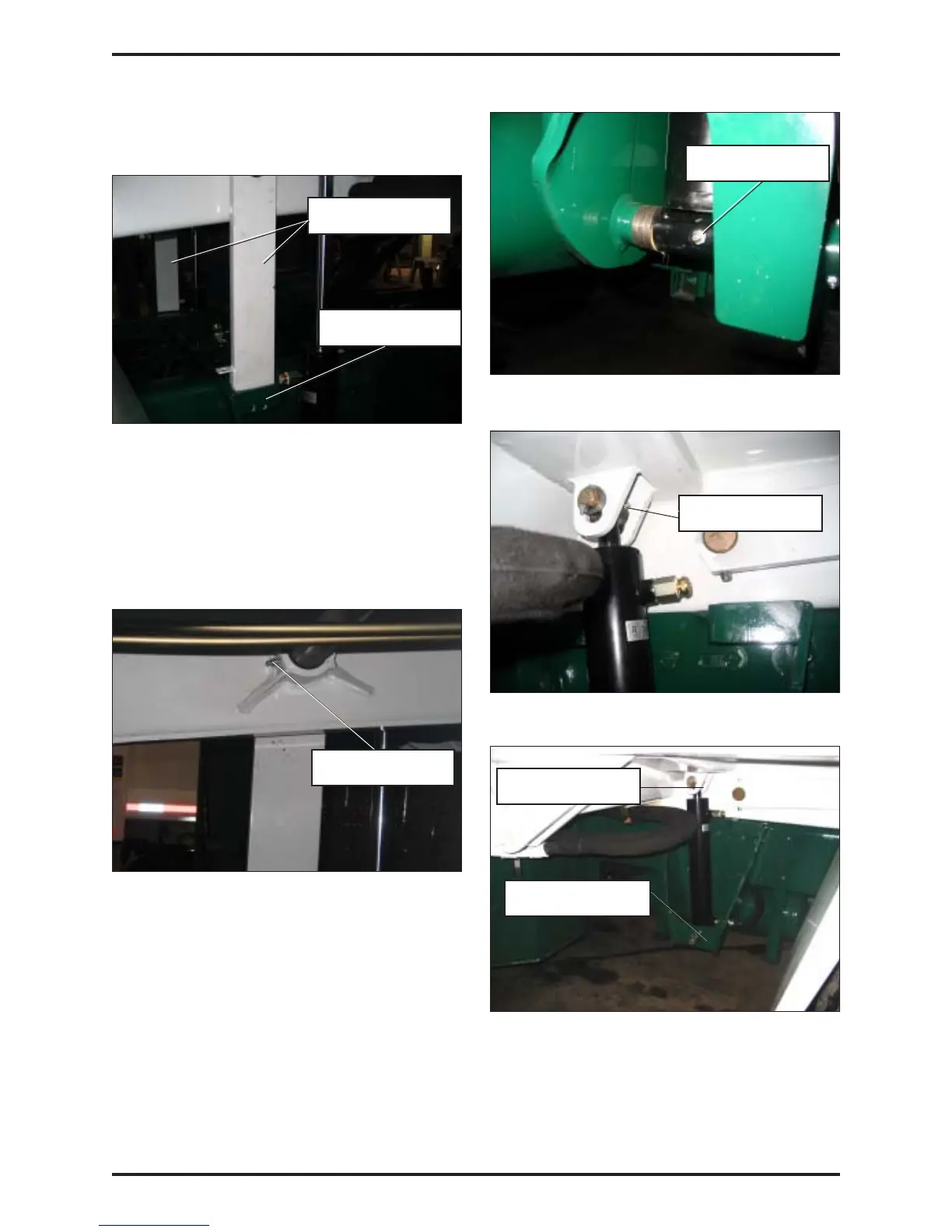

FIGURE #1.24
SAFETY PROP
SUPPORT
SAFETY PROPS
To lubricate the body safety props, apply the
recommended grease through the greasing
points, which are located near the safety
props shaft, inside the rails (see Figure
#1.25). There are a greasing point on each
side.
FIGURE #1.25
The hoisting system also needs to be
lubricated properly. The greasing points are
located on each hoisting system cylinder.
One is located at the bottom of the cylinders
and the other one is located at the top of the
cylinders (see Figures #1.26 and 1.27).
SAFETY PROP
GREASING POINT
FIGURE #1.24
BOTTOM GREASING
POINT
FIGURE #1.25
TOP GREASING POINT
FIGURE #1.26
TOP OF CYLINDER
BOTTOM OF CYLINDER
