System Overview
Views

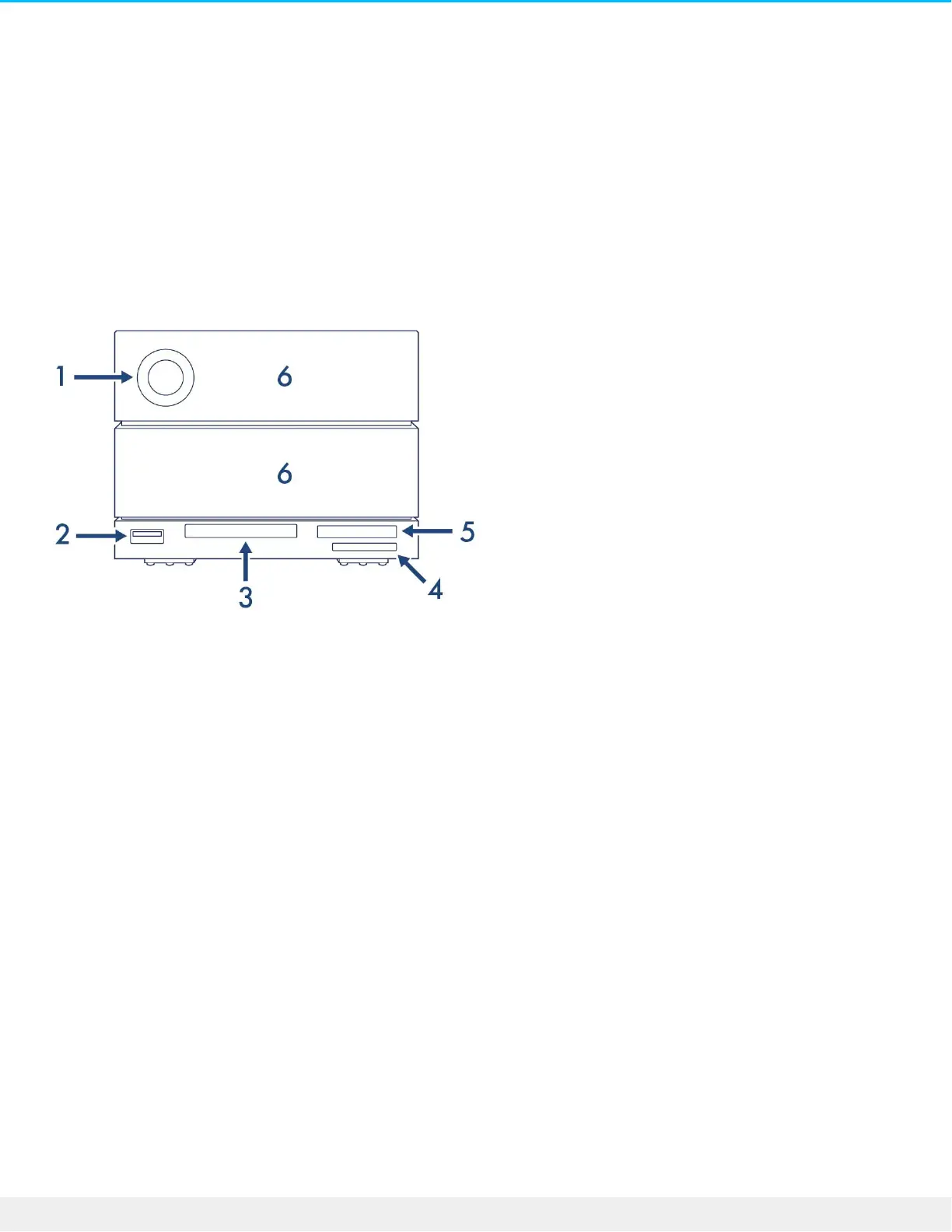

Front view
1. Status LED—The LED indicates that the device is powered on and provides status signals.
See Operation.
2. USB 3.2 Gen 2 Hub—Use the hub to charge devices like mobile phones (7.5W power output). Connect
shuttle drives, digital cameras, and other devices to transfer files. See Docking Features.
3. CFast 2.0 Slot—Use the slot to read CFast 2.0 memory cards. See Docking Features.
4. UHS-II SDXC Slot—Use the slot to read SD memory cards. See Docking Features.
5. CFexpress B—Use the slot to read CFexpress B memory cards. See Docking Features.
6. Swappable hard drive trays—Hard drive trays can be removed to replace failed hard drives. The LaCie
2big Dock hard drives are hot-swappable. See Hard Drive Maintenance.
Rear panel view
