Laguna Tools DS20 - Specifications

MDP20-1
Motor voltage/hp
115V / 1.5 HP
Breaker
15 amp. min.
Power cord
72” (1830mm)
Table, cast iron
15” x 22”
(380mm x 560mm)
Table tilt
+/- 90 degrees
Table swivel
360 degrees
Laser light
Included
Working light
LED, 5W
Swing
20” (510mm)
Spindle taper
MT2
Spindle travel
6” (152.4mm)
Chuck
5/64” – 5/8” (2-16mm)
Quill diameter
2.17” (55mm)
Quill flange/collar
diameter
2.6” (66mm)
Spindle to column,
max.
10” (255mm)
Spindle to table, max.
29-5/16” (745mm)
Spindle to base
49.5” (1257mm)
Spindle speed range
60-3600 RPM (electronic &
variable)
Column diameter
3.15” (80mm)
Machine Dimensions
(L x W x H)
(vertical, base
footprint)
23-7/8” x 17” x 72.5”
(607mm x 432mm x 1842mm)
Weight, gross
326 lbs. (148 kg)
Weight, net
304 lbs. (138 kg)
Package size
(W x D x H)
(horizontal)
72.5" x 28.5" x 20"
(1840mm x 725mm x 406mm)
Industrial work light
One LED included within
headstock & others optional
Specifications

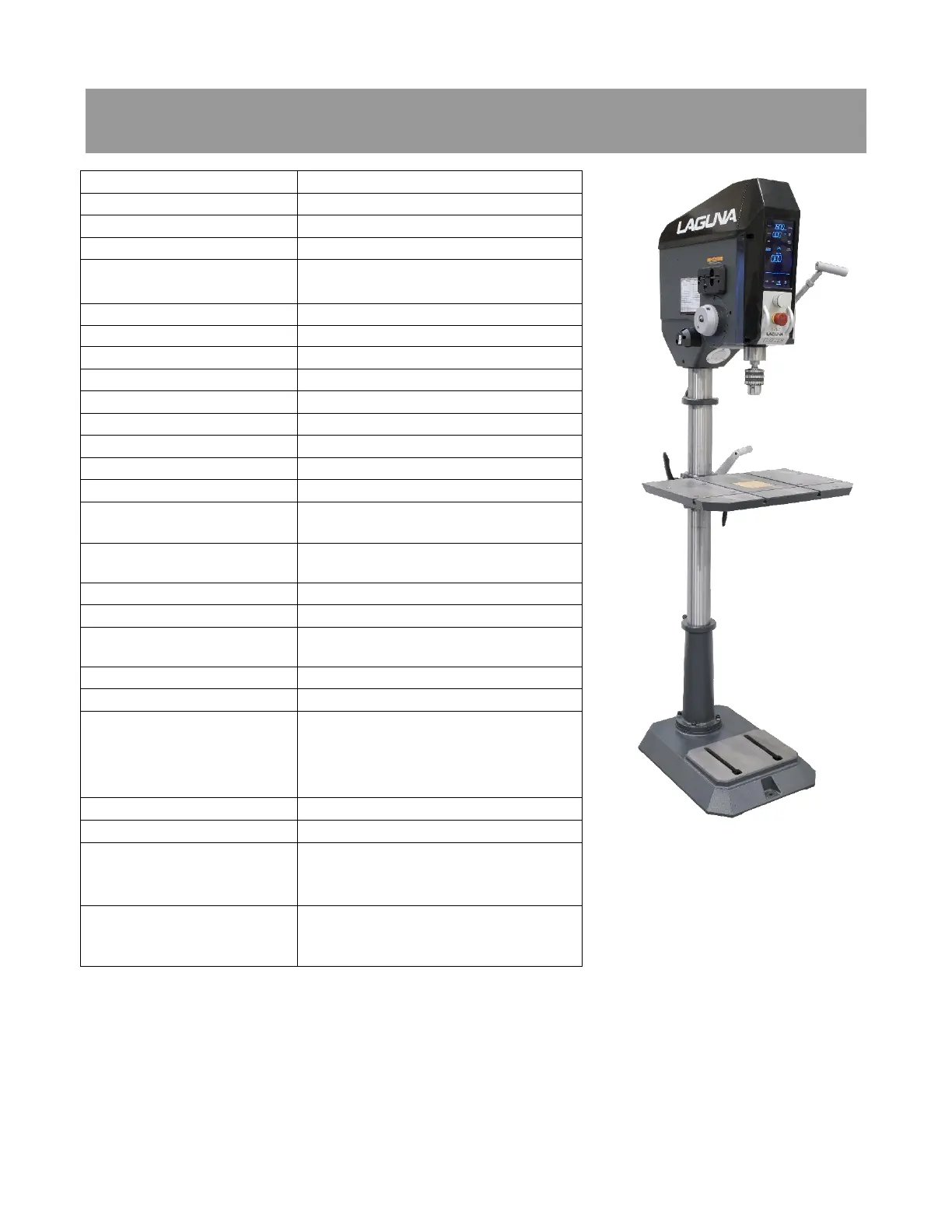

Figure 1: DP20
