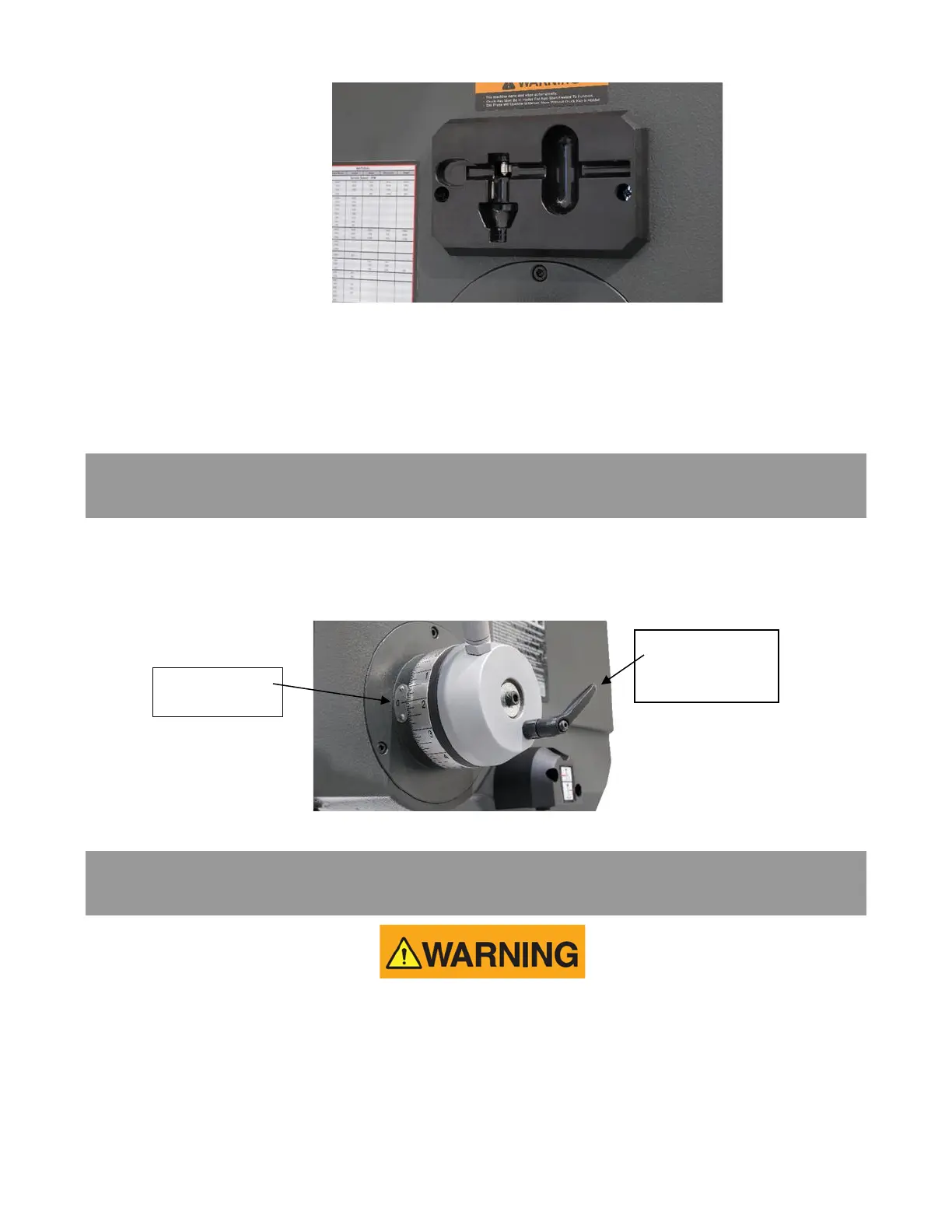

Figure 44: Chuck Key Holder
6.
When the chuck jaws are holding the bit in place, tighten securely using the key. Making sure the
chuck jaws are not touching the flutes of the bit.
7.
To remove the bit, loosen the chuck, using the key while holding the bit with a rag, to prevent the bit
from dropping out of the chuck.
The Depth Stop can be adjusted for setting a specific depth for non-through holes. With the
machine OFF, and drill bit installed, lower the drill bit to the desired height. While maintaining the
drill bit location, tighten the Depth Stop Locking Knob.
Figure 45: Depth Stop & Gauge
Never look at the source of laser light! Eye damage is possible.
Included with your drill press is a Laser Light locator. When turned ON, it will form a cross hair
where the drill bit will engage the material to be drilled. The Laser Light control button is found
at the bottom of the Control Panel.
