6. Remove plastic coverings and clean the anti-rust coatings from the raw cast iron surfaces,
using a degreaser such as Simple Green or similar.
* Do not use gasoline or distillates on or near painted surfaces, which can harm paint!

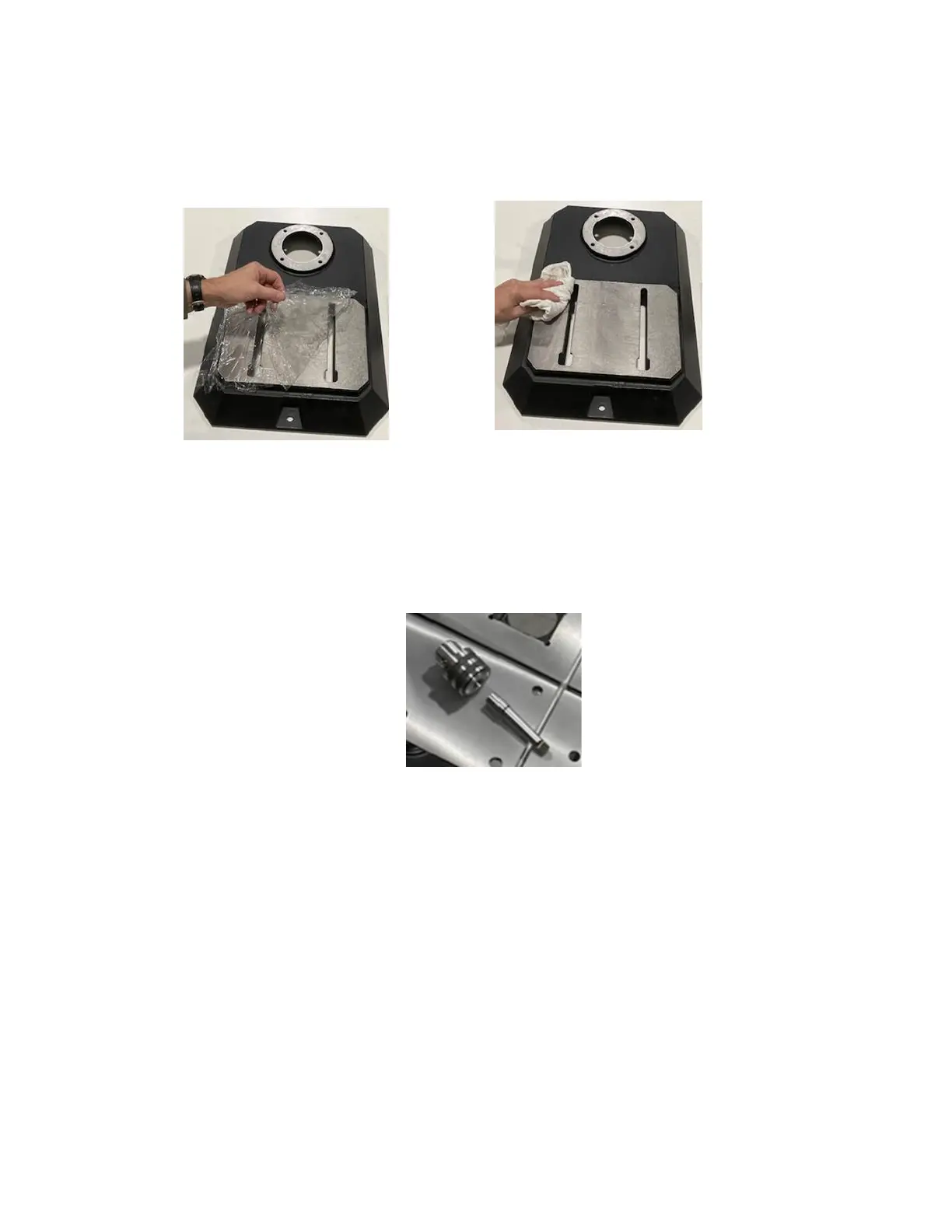

Figure 17: Removing plastic Figure 18: Cleaning
7. Clean the coatings from the arbor, quill and chuck interior using mineral spirits or paint
thinner, a rag and dowel.
* Do not touch painted surfaces with distillates!
* Dispose of rags properly & safely!
Figure 19: Cleaning Chuck & Arbor
8. Remove the tape from the shaft of the arbor height adjustment mechanism, on the side of the
headstock. Clean the shaft and install the depth handle, securing with the bolt and washer.
Note: The handle can be installed on the left side of the headstock, by removing the cap, bolt
and washer and installing the handle on the left. The cap from the left should then be installed
on the shaft on the right side of the headstock.
Note: The handle can also be lengthened by loosening the set screw of the handle and sliding
to the desired length and tightening the set screw.
19
