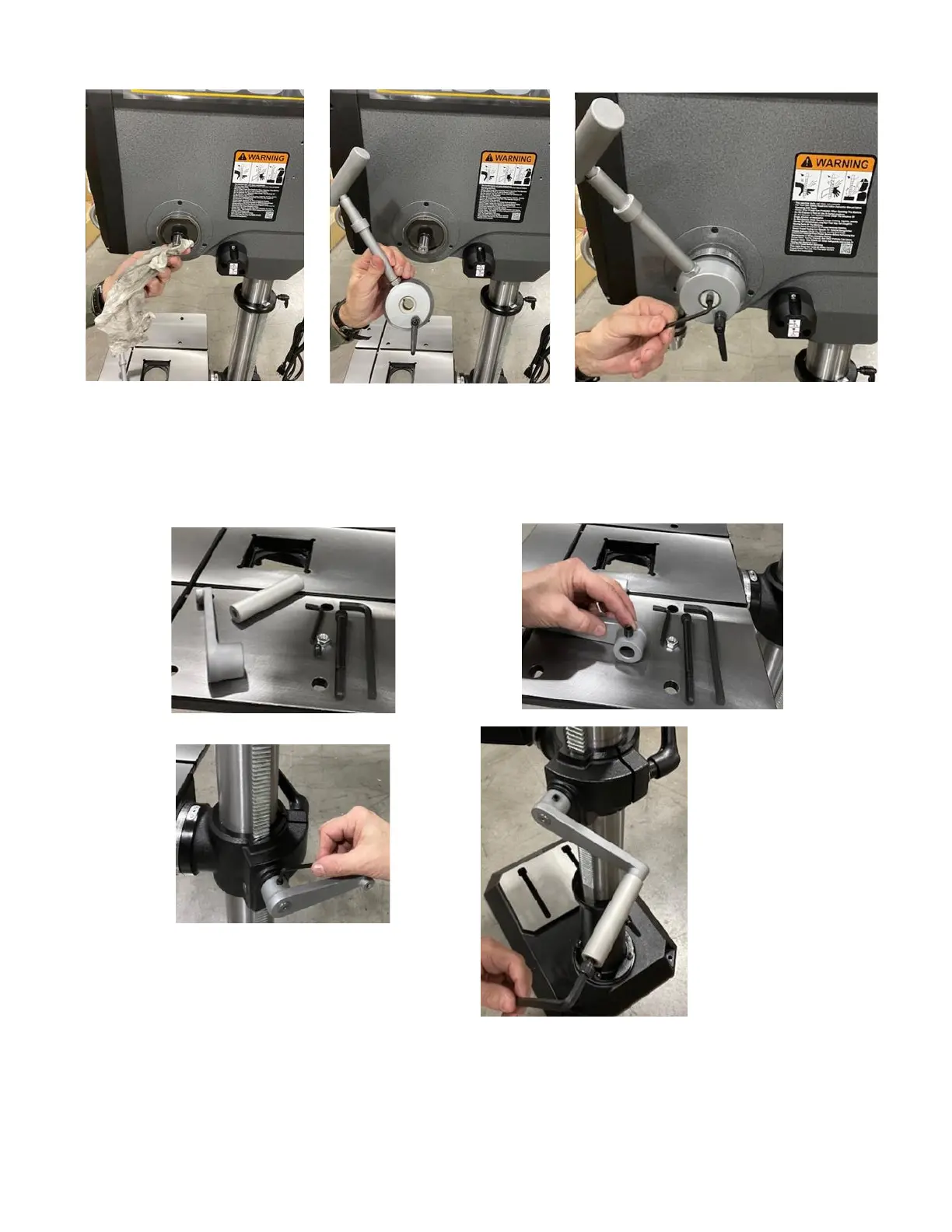

Figures 20-22: Installing handle (right or left side)
9. Assemble and install the table height adjustment handle, using the 3/8 x 4-1/2” hex bolt,
pivot handle and set screw.
Figures 23-26: Crank assembly
10.Chuck Installation:
Unplug the machine prior to installing the chuck. Clean the tapered portions of the chuck
arbor with mineral spirits and a soft rag to ensure that all oil, grease, or other packing debris
are cleaned from the arbor.
