The DP20 table provides several methods for material clamping. Including one side-to-side T-
Slot and two front-to-rear T-Slots to use table clamps, fences, jigs, fixtures, or work vises.

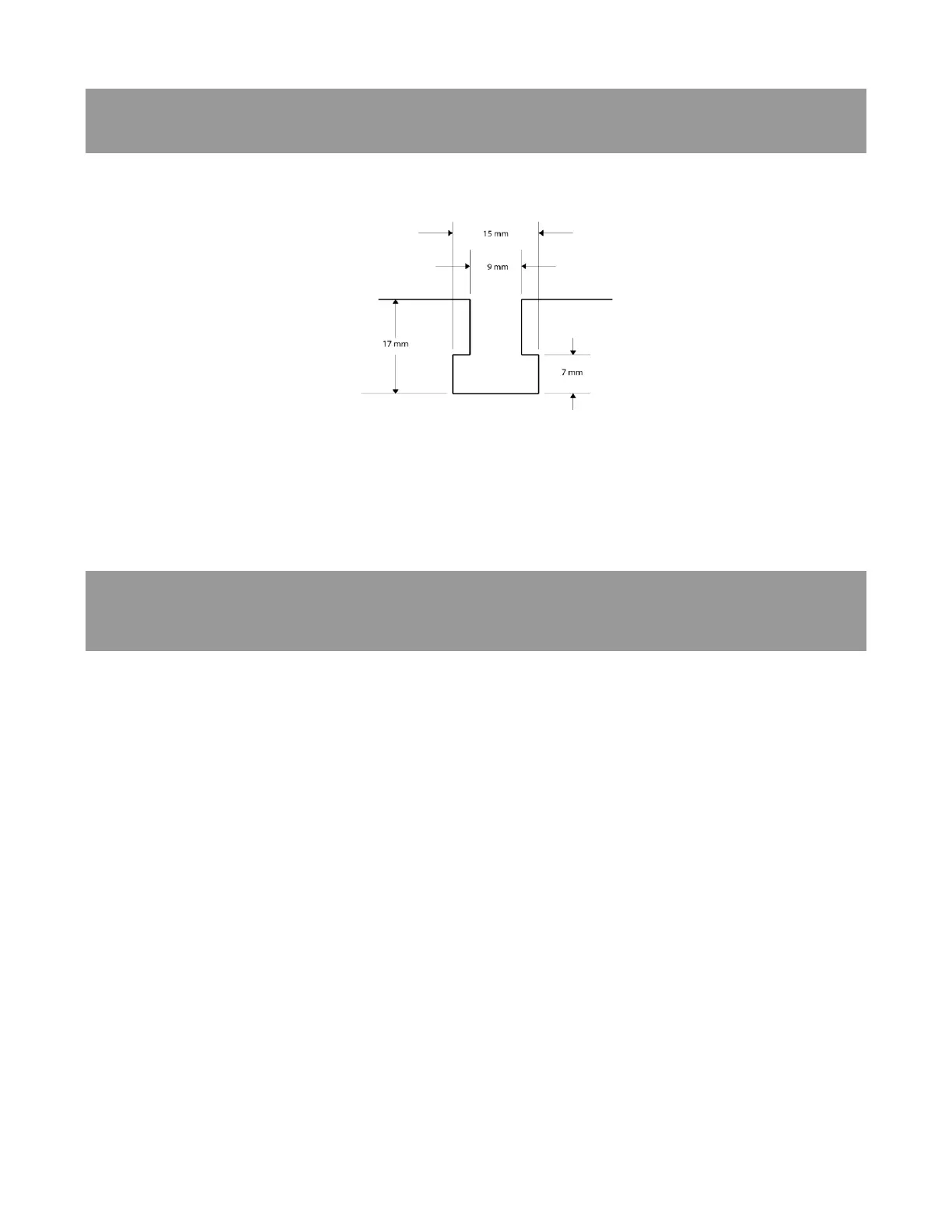

Figure 34: T-Slot dimensions
Ten holes in the table accept various types of clamps with either 5/8 inch or 16 mm posts.
Please note that during manufacturing, these holes may get thicker amounts of powder coating
material onto the sides of the hole which could prevent some posts from going into the hole.
The powder coating can be cleaned out easily by wrapping sandpaper around a dowel, to
remove this coating to adjust the fit.
Read and understand the instruction manual before operating the drill press.
1.
If you are still not thoroughly familiar with the operation, get advice from a qualified person.
2.
Make sure the machine is properly grounded and that the wiring codes are followed.
3.
Do not operate while under the influence of drugs, alcohol, or medicine or if tired.
4.
Always wear eye protection, safety glasses or a safety shield, and hearing protection.
5.
Wear a dust mask; long-term exposure to the fine dust created is not healthy.
6.
Remove your tie, rings, watch and all jewelry. Roll up your sleeves to prevent
catching clothes.
7.
Make sure that the guards are in place and always use them. The guards protect you
from contacting the bit.
8.
Make sure that the bit has been properly tightened in the chuck.
9.
Make sure that the key has been placed into the magnetic key holder on the headstock.
10.
Stop the machine before removing scrap from the table.
11.
Always keep your hands and fingers away from the bit.
12.
Make sure that you use the proper size and type of bit.
13.
Clamp the work piece firmly against the table.
14. Turn off the machine if you must back the material out of an uncompleted or jammed
operation.
