Select one of the laser modules to adjust first. Adjust the crosshair adjustment screw on the
laser which is toward the rear of the drill press. Adjust this screw as needed to bring the laser
line directly over the dimple in the board.
Adjust the laser on the other side of the drill press in the same manner until both lasers cross
directly over the dimple in the wood.
Re-check the vertical adjustment by standing the board vertical again and observing the vertical
lines on the rear of the board to ensure that the vertical adjustments did not shift during the
adjustment. Set vertical adjustments again if needed. The crosshair lasers are now properly
calibrated to ensure exact centering for accurate drilling of holes.

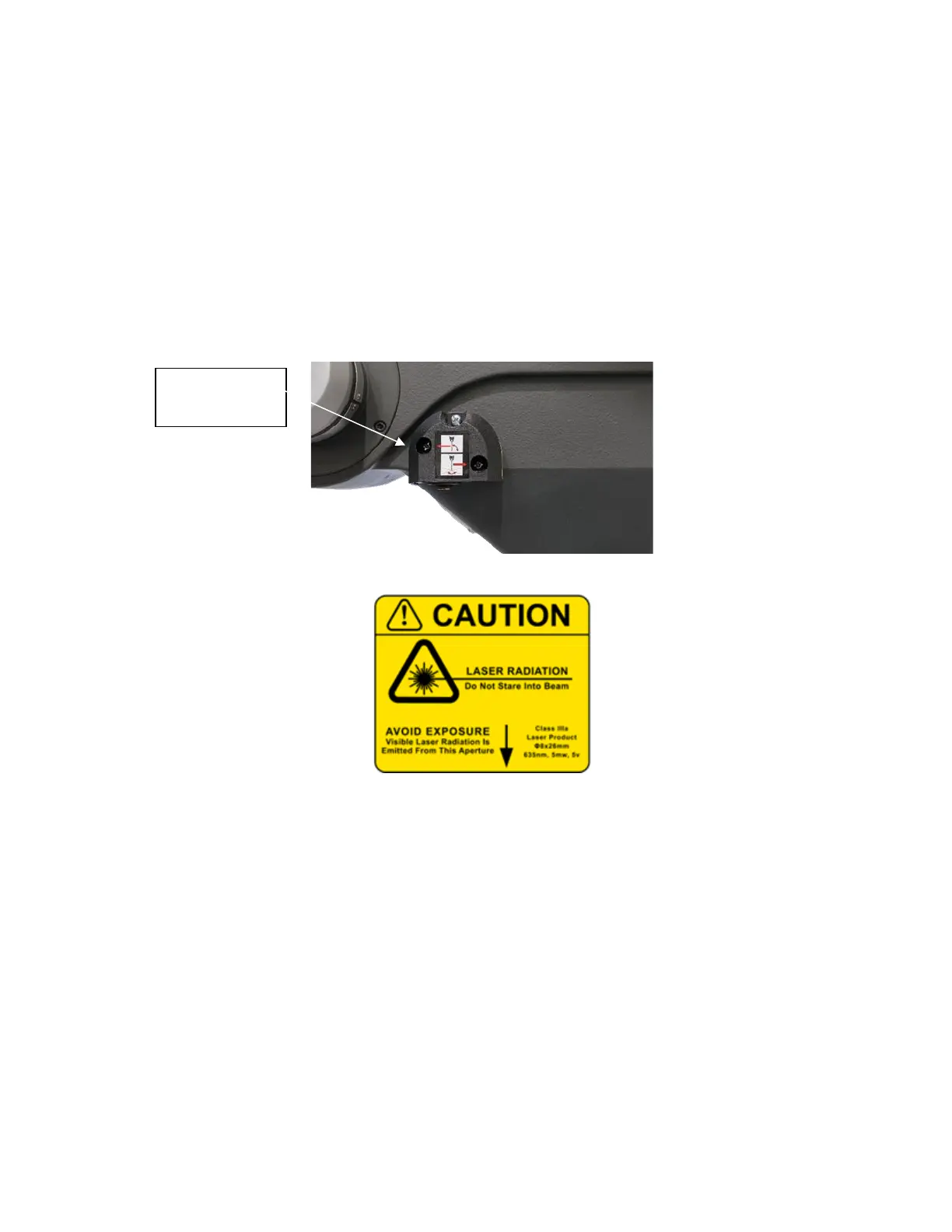

Figure 47: Laser Light Emitter, right (1 of 2, left)
