Parts of the bandsaw
The bandsaw does not have many parts. The major parts are discussed in this
manual. If you are not familiar with the bandsaw, take the time to read this
section and become familiar with the machine.

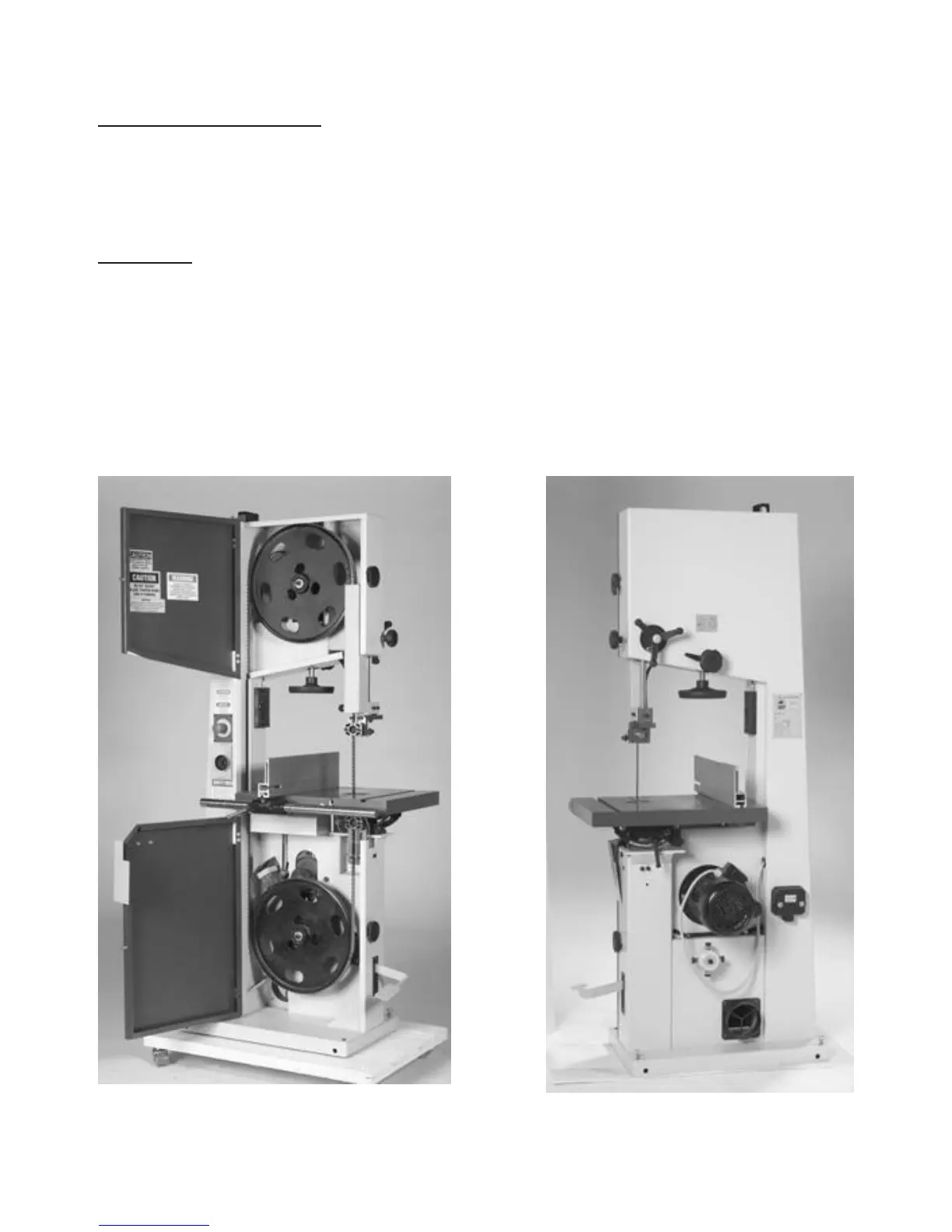

Flywheel
The blade is suspended over two wheels that are covered with rubber called a
tire. The tire cushions the blade and protects the teeth from coming in contact
with the metal of the flywheel. The lower wheel is the drive wheel and is
attached to the motor with a rubber drive belt. The lower flywheel powers the
blade and pulls the blade down through the work piece. The top wheel has two
functions. One function is to balance or track the blade on the wheels, and the
second one is to tension the blade. Both functions are adjustable.
