Correction for horizontal
If the right-hand side of the wheel needs to come

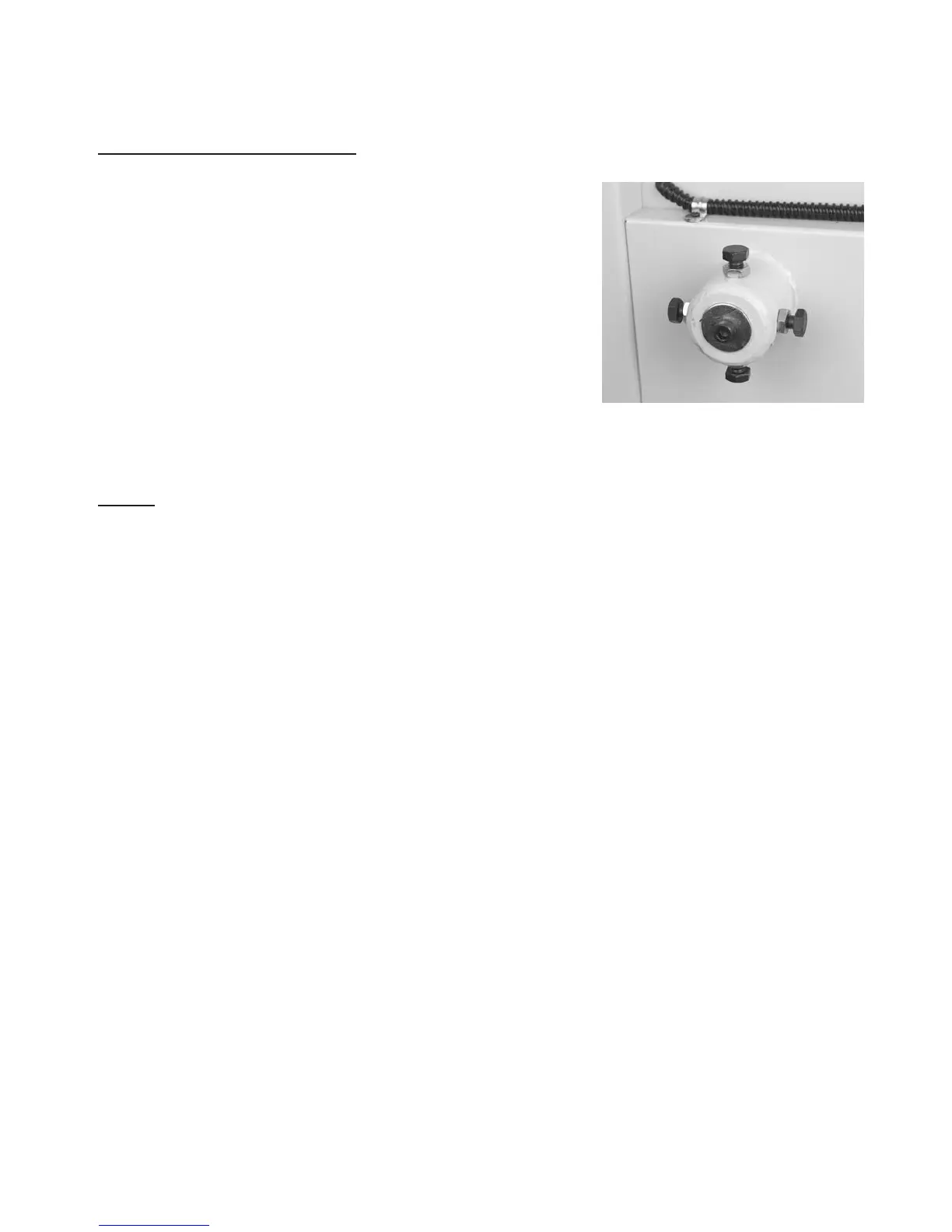

forward. Loosen the shaft clamp screw that is in the
center of the 4 adjusting bolts. Loosen the bolt that
is directly behind that side of the wheel ¼ turn and
tighten the bolt opposite. Turn the wheel by hand
and notice the change in position of the blade on
the wheel. Repeat the adjustment procedure if
required. Once the adjustment has been
completed, tighten the shaft locking screw. If the
left-hand side of the wheel needs to come forward,
the procedure is the same as above, but loosen the left-hand bolt and tighten
the right hand side bolt.
Note: Before connecting the machine to the power, ensure that all bolts and
locking nuts are tight, including the shaft clamp screw.
