COIN OPTIONS REFERENCE GUIDE
By default, the coin door contains a micro switch connected to the COIN2 input for crediting the
machine.
A 9 way Molex connector has been installed on the coin door which can be optionally used to make
adaptors for most electronic coin systems and comparators.

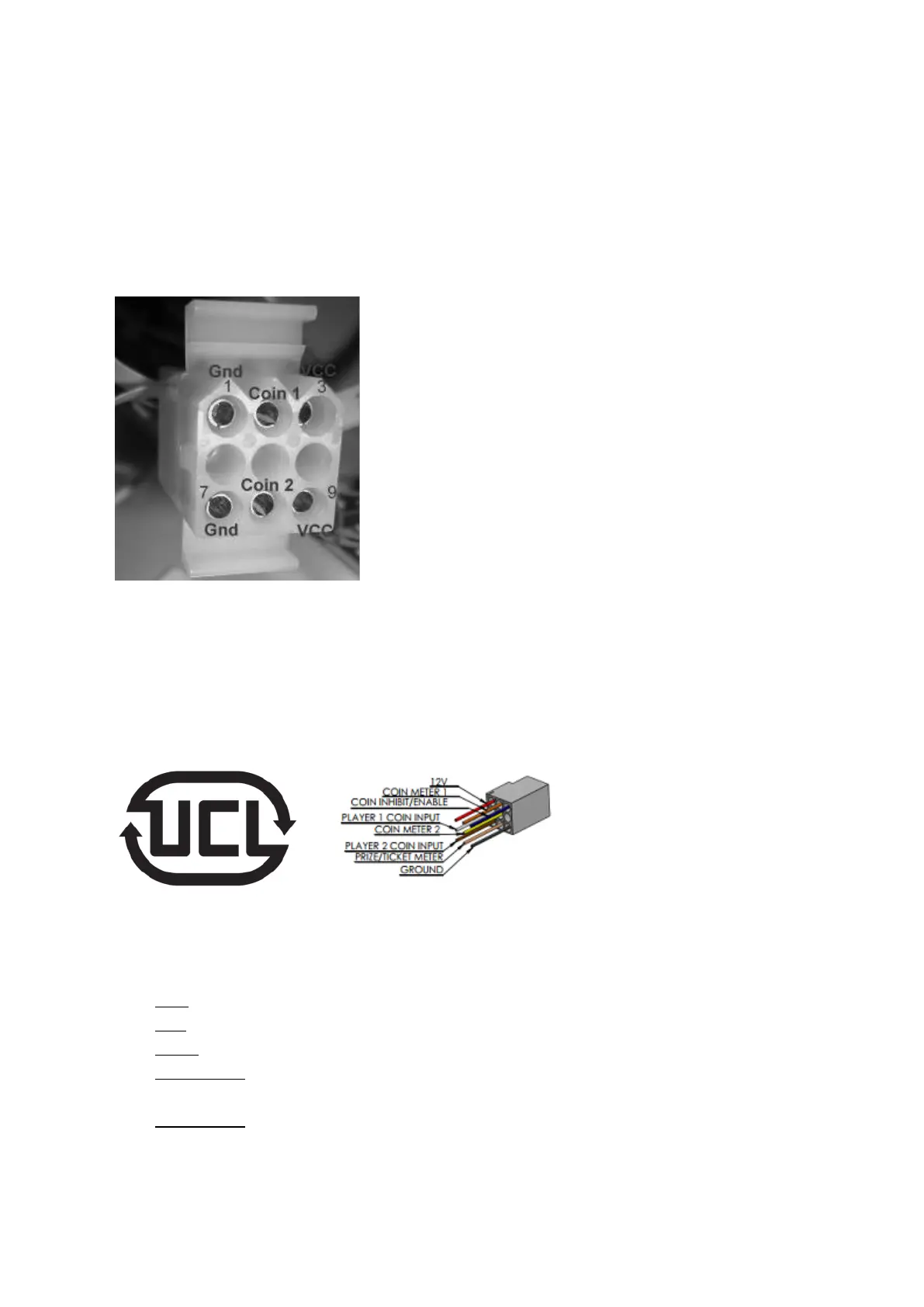

The following picture illustrates the connector pinout.
Shell part number: Molex 03-09-1092
Pins: Molex 02-09-1119 (loose)
Molex 02-09-1117 (chain)
PIN1 = GND
PIN2 = COIN1 input
PIN3 = 12VDC
PIN7 = GND
PIN8 = COIN2 input
PIN9 = 12VDC
Contact your nearest LAI Games distributor for harnessing to suit different coin comparators and bill
acceptors.
UNIVERSAL CARD LINK CONNECTION
A 9 pin Universal Card Link connector exists on the operator panel inside the coin door.
Mating shell part number: Molex 9-pin housing: 03-09-2092
Pins part number: Wire Gauge and Terminals: 02-09-2103 (14-20 gauge wire) or 02-09-2118 (18-22
gauge wire)
Pin 1. +12v- Supply to Card System.
Pin 2. Coin 1- input to the game PCB.
Pin 3. Coin 2- input to the game PCB.
Pin 4. Coin meter 1- is connected to the coin meter 1 output from the game PCB and can be used by
card systems for monitoring purposes.
Pin 5. Coin meter 2- is connected to the coin meter 2 outputs from the game PCB and can be used by
card systems for monitoring purposes.
