51
Pin 6. Ticket Meter- is connected to the Ticket 1 Meter output from the game PCB and can be used
by card systems for monitoring purposes.
Pin 7. Empty
Pin 8. Empty
Pin 9. Ground- is connected to the common Ground connection, the same ground as the Game PCB.

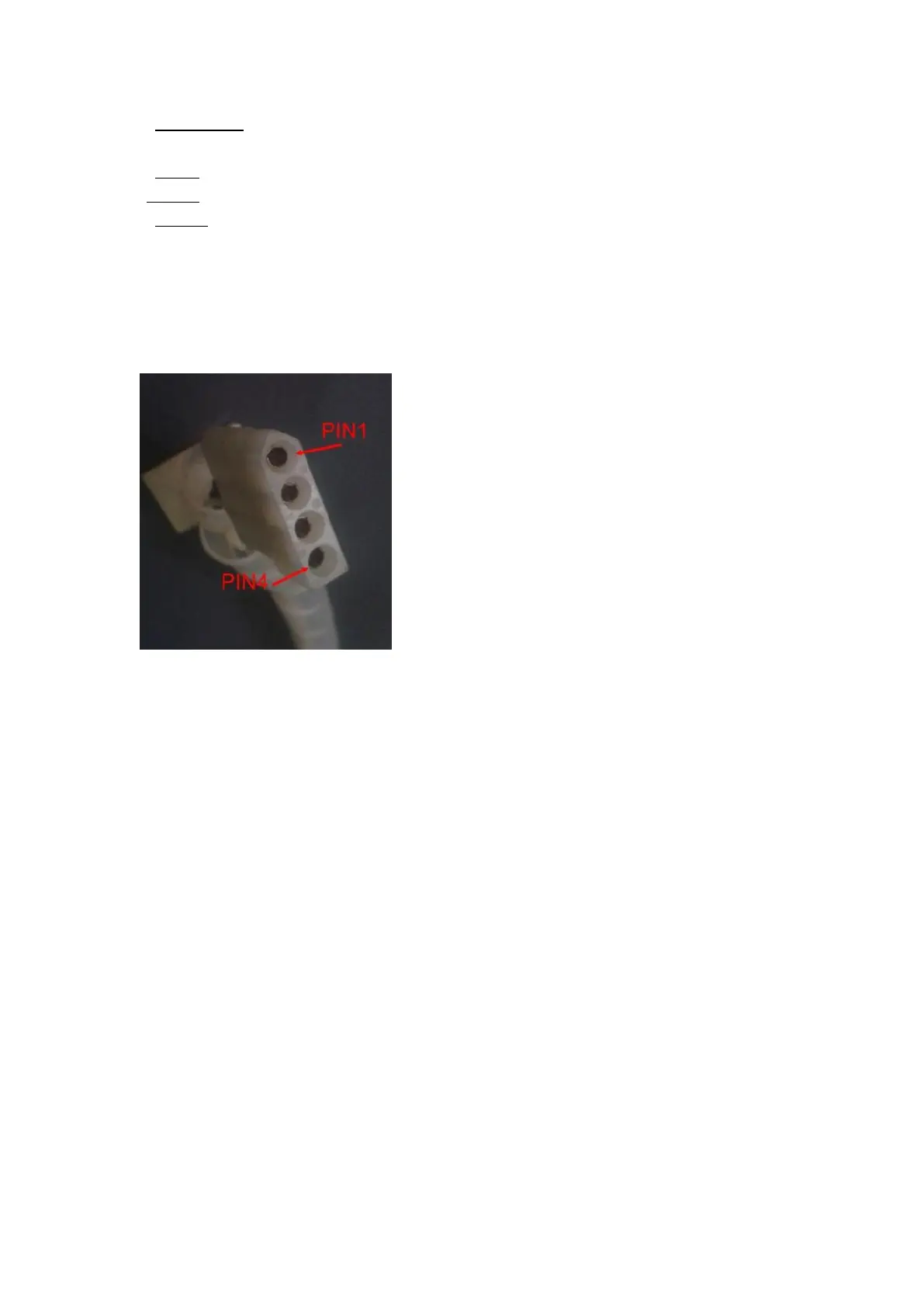

TICKET MECHANISMS
2 x ticket mechs can be fitted inside the ticket doors. Connections are available through a standard 4
way Molex receptacle. Deltronic DL-1275 mechs are installed by default.
Shell part number:
Molex 03-09-1042
Pins:
Molex 02-09-1119 (loose)
Molex 02-09-1117 (chain)
PIN1 = NOTCH
PIN2 = GND
PIN3 = DRIVE
PIN7 = 12VDC
WIRING DIAGRAMS
(Next Page)
