Lake Shore Model 330 Autotuning Temperature Controller User’s Manual
Service & Calibration 5-3
5.4 IEEE-488 INTERFACE CONNECTOR
Connect to the IEEE-488 Interface connector on the Model 330 rear with cables specified in the IEEE-488-
1978 standard document. The cable has 24 conductors with an outer shield. The connectors are 24-way
Amphenol 57 Series (or equivalent) with piggyback receptacles to allow daisy-chaining in multiple device
systems. The connectors are secured in the receptacles by two captive locking screws with metric threads.
The total length of cable allowed in a system is 2 meters for each device on the bus, or 20 meters maximum.
A system may be composed of up to 15 devices. Figure 5-5 shows the IEEE-488 Interface connector pin
location and signal names as viewed from the Model 330 rear panel.
1112 10 9 8 7 6 5 4 3 2 1
2324 22 21 20 19 18 17 16 15 14 13
IEEE-488 INTERFACE
SH1 AH1 T5 L4 SR1 RL1 PP0 DC1 DT0 C0 E1
PIN SYMBOL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
DIO1
DIO2
DIO3
DIO4
EOI
DAV
NRFD
NDAC
IFC
SRQ
ATN
SHIELD
DIO5
DIO6
DIO7
DIO8
REN
GND 6
GND 7
GND 8
GND 9
GND 10
GND11
GND
Data Input/Output Line 1
Data Input/Output Line 2
Data Input/Output Line 3
Data Input/Output Line 4
End Or Identify
Data Valid
Not Ready For Data
Not Data Accepted
Interface Clear
Service Request
Attention
Cable Shield
Data Input/Output Line 5
Data Input/Output Line 6
Data Input/Output Line 7
Data Input/Output Line 8
Remote Enable
Ground Wire – Twisted pair with DAV
Ground Wire – Twisted pair with NRFD
Ground Wire – Twisted pair with NDAC
Ground Wire – Twisted pair with IFC
Ground Wire – Twisted pair with SRQ
Ground Wire – Twisted pair with ATN
Logic Ground

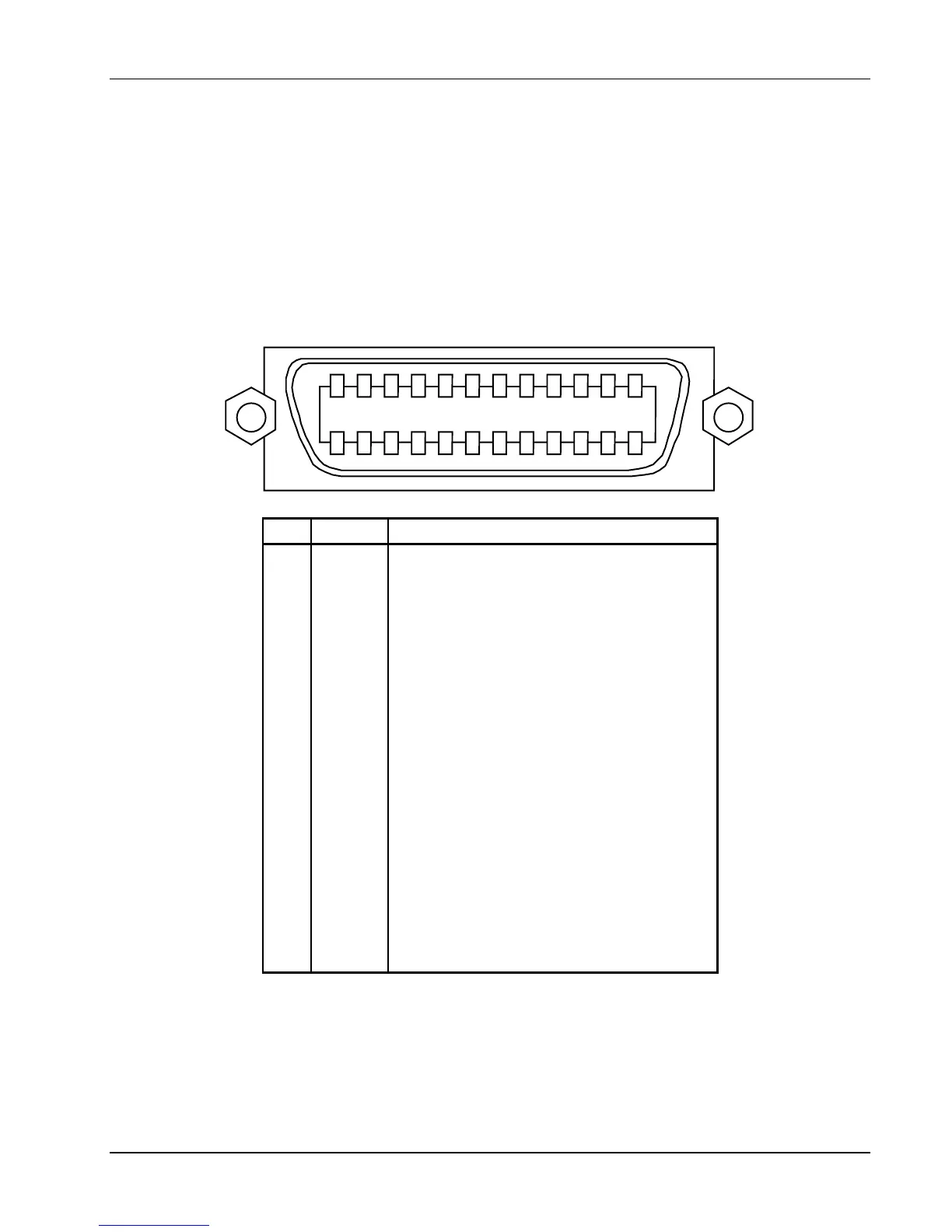

Figure 5-5. IEEE-488 Rear Panel Connector Details
